Gaoxin Machinery-Professional Plastic Crusher & Dryer Machine Manufacturer Since 1995.

Heavy-Duty Plastic Crusher Machine For Recycling Pallets And Pipe 1
Heavy-Duty Plastic Crusher Machine For Recycling Pallets And Pipe 2
Heavy-Duty Plastic Crusher Machine For Recycling Pallets And Pipe 1
Heavy-Duty Plastic Crusher Machine For Recycling Pallets And Pipe 2

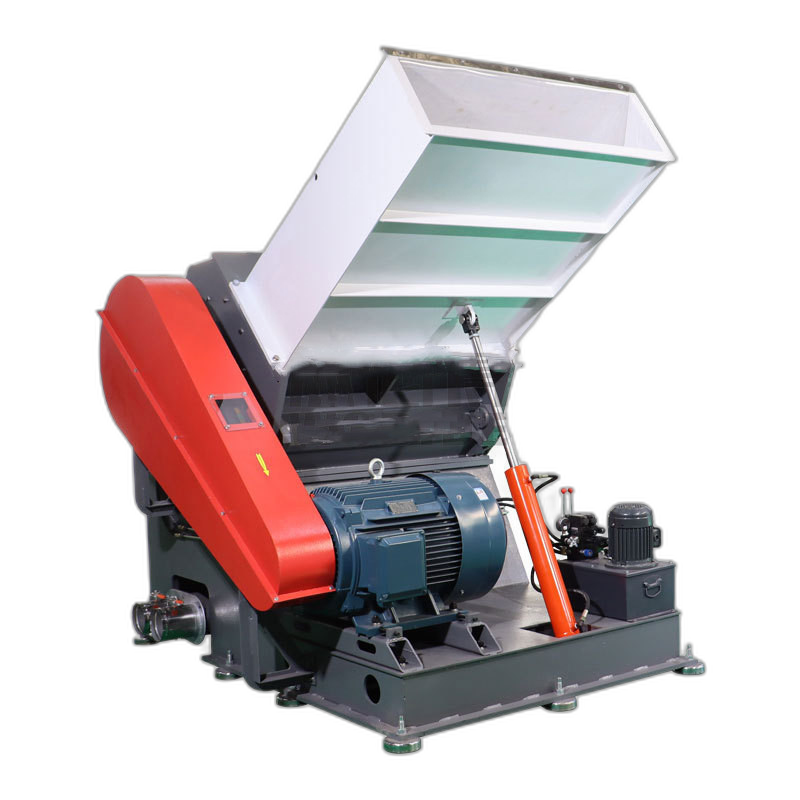

Heavy-Duty Plastic Crusher Machine For Recycling Pallets And Pipe

Suitable for crushing and recycling pallets, pallets, pipes and wide profiles.

It eliminates the need to use conventional machines to pre-decompose products and reduces degradation of raw materials.

Save labor, reduce labor intensity, and improve crushing and recycling efficiency.

    oops...!

    no product data.

    Go to homepage

    Pallet Crusher

    1.Using double V scissor cutting, it consumes less energy, less shearing heat, evenly crushed particles, and high shearing efficiency.

    2.The bearing is installed outside the unit, dust or water is not easy to invade, the heat dissipation is good, and maintenance and repair are simple and easy.

    3.The opening and closing of the heavy-duty crushing chamber and screen can be easily realized through the hydraulic system. Maintenance is very convenient, and the cleaning of the crushing chamber cavity can also be completed quickly.

    4.The specially designed hopper is low, flat and sloping, making it easy to feed pallets and wide profiles.

    5.The rotor adopts high-strength welded steel structure, and the most suitable rotor can be designed according to different materials to achieve optimal cutting.

    6.We can provide optimized feeding solutions for different materials.

    7.The rotors have undergone strict dynamic and static balance testing to ensure smooth and reliable machine operation.

    8.European-style expansion pulley is used to achieve powerful crushing while saving energy consumption.

    9.Inertia flywheel is optional to improve cutting intensity.

    Click to view
    undefined

    USE KNIVES

    SKD-11 High wear-resistant cutting tool

    图片1 (27)

    *Using double V scissor cutting, it consumes less energy, less shearing heat, evenly crushed particles, and high shearing efficienc.

     Application Range

    Shredding and recycling of pallets, pallets, pipes and wide profiles

    11
    Before breaking
    22
    After broken

    Pallet tray

    11
    Before breaking
    22
    After broken

    Plate profiles

    Tool Type

    A variety of cutting tools, selected according to material requirements, more efficient and faster

    undefined
    7 (2)
    Claw knife type
    Narrow blade, strong dispersion force, and large shearing force
    Applicable to: thick and hard material blocks/heads, etc.
    8 (2)
    Blade type
    Universal blade type, rapid crushing and high uniformity of material particles.
    Applicable to: nozzles/defective products/sheets/sprues, etc.
    9 (2)
    Flat knife type
    Wide blade, alloy material, fast and sharp, low dust crushing.
    Applicable to: boxes and baskets/bottle shells/packaging products, films/woven packaging tapes/cloth materials, etc.
    4 (3)
    Heavy duty claw knife
    SK-11 reinforced and hardened material, with strong force and large rotation, For difficult materials such as fiber-reinforced materials, hard rubber head blocks, nylon materials, PC materials, etc.,

    Warm reminder: The above are the types of knives that can be equipped with the standard powerful crusher.

    Please choose the correct one according to the material requirements!

    If you are not sure about the knife type, please contact customer service and let us use our expertise to select the type for you!

    Baozhun plastic crusher brings you: the most practical! The most energy efficient! Maximum efficiency!

    Fourth, Machine Details Display

    11 (2)
    11 (2)
    ● High quality knives
    ● Thickened and reinforced crushing chamber
    ● 57-59℃ igh hardness cutting tools
    ● Good crushing force, durable and wear-resistant
    44 (2)
    ● Limit switch
    ● When the box is opened, the blade automatically stops running to protect the user's safety
    22 (2)
    ● Nut handle
    ● Easy connection, strong and durable
    55 (2)
    ● Large diameter flywheel
    ● Large diameter rotating flywheel
    ● Strong inertia and strong crushing force
    ● Can easily handle thick and hard materials
    33 (2)
    ● Brand motor
    ● All copper core high-end brand
    ● Strong power and stable performance
    66 (2)
    ● Customizable discharge screen
    ● The size of the material discharged is controlled by the screen
    ● 5-50MM range can be customized
    ● The larger the mesh size, the higher the production capacity.

    Technical Parameters

    Model unit GXGF1200
    Crushing chamber (mm) 1200*340
    Crushing capacity (kg/h) 600-1000KG
    Blade number PCS 4
    Blade number PCS 10
    Power Kw 55
    HP 75
    Outine dimensions (L×W×H MM) 2300*2150*2000
    Net weight (kg) 5500KG
    结构图 (2)
    结构图 (2)
    结构图 (2)
    结构图 (2)

    Use with automation

    It can be equipped with a fan to discharge material from the storage barrel, a conveyor belt to feed material, and a screw machine to automatically feed in and out of the material system, saving time and labor, and making the production capacity more efficient

    图片6 (5)
    Automatic screw machine discharge
    Cyclone recycling automatic storage
    Cyclone recycling automatic storage

    Schematic Diagram

    1 (14)
    Bent bucket crusher
    2 (10)
    Straight bucket crusher
    3 (7)
    Pipe crusher
    4 (4)
    Heavy duty rubber head crusher
    5 (4)
    Silent crusher
    6 (3)
    Sheet film crusher
    7 (2)
    Film sheet edge recycling machine
    8 (2)
    Medium speed slow speed edge machine
    9
    pallet crusher
    10
    Heavy barrel crusher
    11 (3)
    Double shaft shredder
    12
    Single shaft shredder
    13
    Silent dust recycling crusher
    14
    Pipe recycling crusher
    15、Automatic inlet and outlet crusher
    Automatic inlet and outlet crusher
    16
    Conveying iron removal recycling crusher
