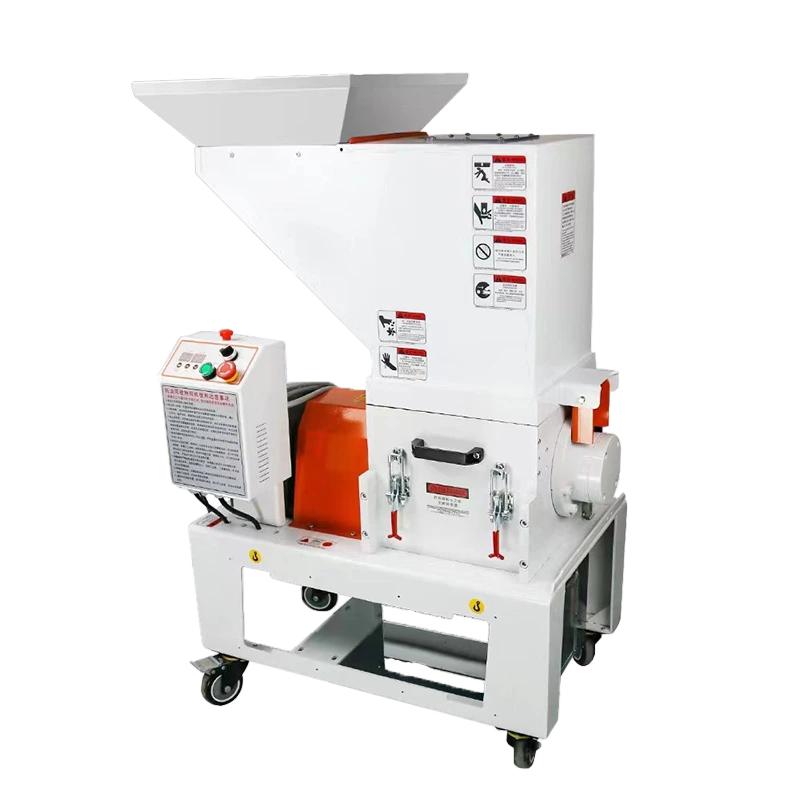

Slow speed side grinder

When used in conjunction with hosts such as injection molding machines, it can be recycled immediately within 30 seconds without centralized crushing, ensuring cleanliness and tidiness.

    oops...!

    no product data.

    Go to homepage

    Slow speed side grinder

    When used in conjunction with hosts such as injection molding machines, it can be recycled immediately within 30 seconds without centralized crushing, ensuring cleanliness and tidiness.

    Machine usage:

    Suitable for crushing and recycling PC, nylon, ABS and other defective spout materials.


    The machine-side crusher is used with injection molding machines and other hosts. It is equipped with a recycling system. The material at the nozzle is immediately recycled in 20 seconds. The crushed materials are automatically sent back to the production equipment. No manual labor is required, and the recycling is fast and pollution-free.


    Machine principle:

    The nozzle material that needs to be crushed falls into the hopper after being crushed by the machine-side crusher, and then sent to the recycler by the fan. The recycler isolates the powder material and recycles it into the dust bag, while the granular material is the same as in the dryer. According to the required ratio of old and new materials, the new materials are mixed and flowed into the main machine through the manual toilet valve at the bottom of the recycler.

    Click to view
    白底

    Tool Type

    A variety of cutting tools, selected according to material requirements, more efficient and faster

    undefined
    7 (2)
    Claw knife type
    Narrow blade, strong dispersion force, and large shearing force
    Applicable to: thick and hard material blocks/heads, etc.
    8 (2)
    Blade type
    Universal blade type, rapid crushing and high uniformity of material particles.
    Applicable to: nozzles/defective products/sheets/sprues, etc.
    9 (2)
    Flat knife type
    Wide blade, alloy material, fast and sharp, low dust crushing.
    Applicable to: boxes and baskets/bottle shells/packaging products, films/woven packaging tapes/cloth materials, etc.
    4 (3)
    Heavy duty claw knife
    SK-11 reinforced and hardened material, with strong force and large rotation, For difficult materials such as fiber-reinforced materials, hard rubber head blocks, nylon materials, PC materials, etc.,

    Warm reminder: The above are the types of knives that can be equipped with the standard powerful crusher.

    Please choose the correct one according to the material requirements!

    If you are not sure about the knife type, please contact customer service and let us use our expertise to select the type for you!

    Baozhun plastic crusher brings you: the most practical! The most energy efficient! Maximum efficiency!

    Fourth, Machine Details Display

    11 (2)
    11 (2)
    ● High quality knives
    ● Thickened and reinforced crushing chamber
    ● 57-59℃ igh hardness cutting tools
    ● Good crushing force, durable and wear-resistant
    44 (2)
    ● Limit switch
    ● When the box is opened, the blade automatically stops running to protect the user's safety
    22 (2)
    ● Nut handle
    ● Easy connection, strong and durable
    55 (2)
    ● Large diameter flywheel
    ● Large diameter rotating flywheel
    ● Strong inertia and strong crushing force
    ● Can easily handle thick and hard materials
    33 (2)
    ● Brand motor
    ● All copper core high-end brand
    ● Strong power and stable performance
    66 (2)
    ● Customizable discharge screen
    ● The size of the material discharged is controlled by the screen
    ● 5-50MM range can be customized
    ● The larger the mesh size, the higher the production capacity.

    Product Features

    Product Features

    ①Reduce noise by 80%
    The fuselage adopts a closed double-layer structure with a built-in soundproof cover. The noise level is ≥80dB per meter.
    ②Rotor technology
    Concentric dynamic balancing process, ensures smooth operation
    53567e668fa85ed22a8d031d86fd3b2
    ③Easy tool change
    Unique tool design makes tool replacement easier
    ④Drying reduction treatment in hopper
    Made of thickened double-layer steel plate, twice as quiet

    Double-layer soundproof box, ultra-quiet

    Let you no longer worry about noise

    The barrel is made of stainless steel, which is soundproof and noise-reducing, easy to wash and rust-proof,and keep raw materials from being contaminated

    undefined

    Pineapple cutter

    Forged with SKD11 precision, quenched at 1030C high temperature,

    and tempered multiple times, the hardness can reach HRC59-61 degrees, high wear resistance, zero dust, and uniform particles

    t2

    Crushing effect

    PC, PP, PVC, POM, ABS, nylon and other hard nozzle defective materials can be easily crushed

    11
    Before breaking

    Before crushing: Various nozzle materials and defective waste materials

    11
    Before breaking

    After crushing: The particles are uniform and free of dust

    Automatic recycling system matching

    Fully automatic recycling in 20 seconds

    New materials and crushed materials are fully automatically mixed and recycled in proportion.

    No discoloration, no pollution, no waste

    undefined

    Fan + cyclone recovery system

    Various recycling combinations

    222C8FD2-8B58-445e-937B-7D392909AA36
    Fan + recovery system
    E1A3285D-0ACB-4fcf-A468-C00BFB6493C9
    Two material ratio valve
    E5EF20E8-D649-49d9-B930-2AA8043B032C
    Square storage hopper

    MACHINE SIDE CRUSHER

    Automatic online crushing and recycling of defective plastic spouts

    111
    111
    222
    222
    333
    333

    Slow silent crusher

    MEDIUM SPEED CRUSHER

    LOW SPEED CRUSHER

    Pineapple knife type, gnawing crushing, uniform particles, no dust, no noise


    Grinder blade chopping, screen feeding,low dust, low noise

    Blade shredding, screenfeeding, low dust, low noise

    Schematic Diagram

    Models ZHMS-1HP ZHMS-2HP ZHMS-3HP ZHMS-5HP
    Motor brand Shi Yuan (Taiwan) Shi Yuan (Taiwan) Shi Yuan (Taiwan) Shi Yuan (Taiwan)
    Motor Power 1.1KW 1.5KW 2.2KW 3.7KW
    Thermal relay Schneider Schneider Schneider Schneider
    Blade material SKD-11 SKD-11 SKD-11 SKD-11
    Heat treatment 58℃ 58℃ 58℃ 58℃
    Fixed knife 6pieces 6pieces 8pieces 8pieces
    Rotation (S knife) 2pieces 2pieces 3pieces 3pieces
    Rotation (pineapple knife) 3pieces 3pieces 4pieces 4pieces
    Spindle speed 23rpm 23rpm 23rpm 23rpm
    Crushed particles 5mm-6mm 5mm-6mm 5mm-6mm 5mm-6mm
    Crushing ability 15-20(kg/h) 20-25(kg/h) 25-30(kg/h) 40-45(kg/h)
    Input size (L*W) 250*250mm 300*320mm 420*300mm 400*440mm
    Body size (L*W*H) 900*450*1200mm 1100*500*1300mm 1200*500*1330mm 560*1280*1500mm
    Machine weight 205kg 275kg 315kg 420kg
