Gaoxin Machinery-Professional Plastic Crusher & Dryer Machine Manufacturer Since 1995.

Vertical color mixing 1
Vertical color mixing 1

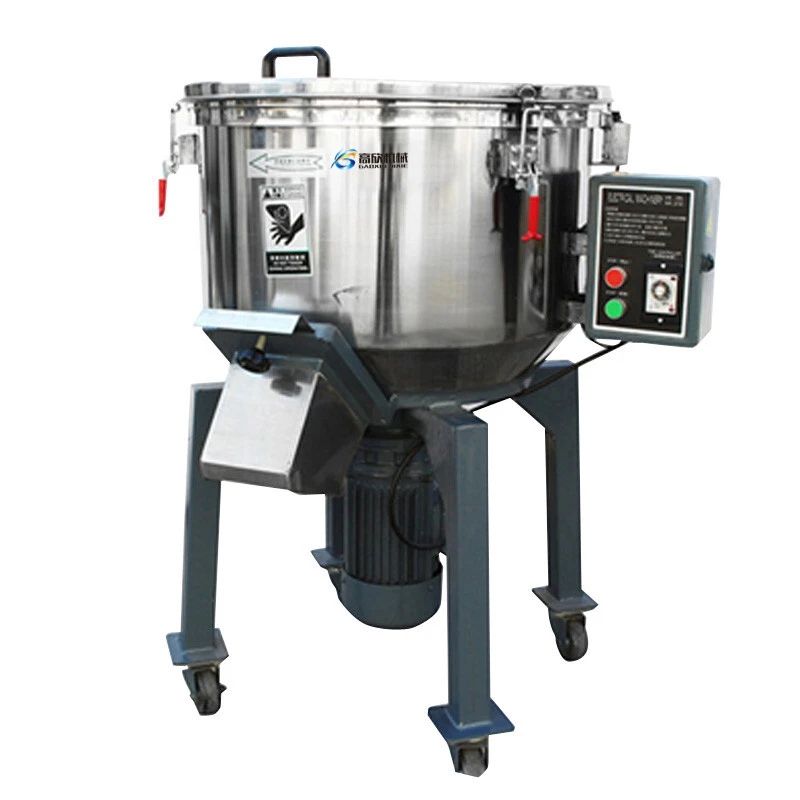

Vertical color mixing

Suitable for mixing various plastics: mixing new and old materials, mixing large and small materials, mixing powder + granules, etc., with high uniformity and easy operation

    oops...!

    no product data.

    Go to homepage

    Vertical mixer features:

    1.Four-wheel upright design, small in size and easy to move

    2.Equipped with cycloidal pinwheel reduction motor, low noise, long-lasting and durable.

    3.Complete uniform mixing in a short time, low energy consumption and high efficiency.

    4.The lid and bottom of the barrel are stamped and formed, with precise fit and more durability.

    5.The timer can select the mixing time between 0-30 minutes.

    6.The vertical blade is made of stainless steel and has a scientific and reasonable structure. It can fully stir the raw materials during work and minimize the load, saving time and electricity. It is made of high-quality stainless steel material, high strength, and easy to clean.

    Click to view
    undefined

    Paddles inside the machine

    Stainless steel material, smooth and easy to clean; lotus-shaped paddles, high mixing uniformity and short time.

    图片1 (37)
    图片1 (37)
    图片1(1) (5)
    图片1(1) (5)

    Mixing effect

    Suitable for mixing various plastics: mixing new and old materials, mixing large and small materials, mixing powder + granules, etc., with high uniformity and easy operation

    Widely used in plastic raw materials, crushed materials, powder materials, chemical industry, food and other industries

    1 (23)
    1 (23)
    2 (19)
    2 (19)
    3 (15)
    3 (15)

    Structure diagram

    F9FAE96E-FDC7-4632-89CF-816C47F372B8
    F9FAE96E-FDC7-4632-89CF-816C47F372B8

    Frequently made models

    F372C17F-9170-4ef3-A072-3AAF49C6EE38
    F372C17F-9170-4ef3-A072-3AAF49C6EE38

    25KG-300KG models available

    Technical Parameters

    Model Powre Capacity Voltage Dimensions Rotating speed  Net Weight
    ZHQB-25 0.75KW 25KG 380V/3Φ 720X720X920MM 80R/Min 90Kg
    ZHQB-50 1.5KW 50KG 380V/3Φ 830*830*1120MM 80R/Min 120Kg
    ZHQB-100 3KW 100KG 380V/3Φ 1000*1000*1280MM 80R/Min 180Kg
    ZHQB-150 4KW 150KG 380V/3Φ 1130*1130*1380MM 80R/Min 270Kg
    ZHQB-200 7.5KW 200KG 380V/3Φ 1200*1200*1500MM 80R/Min 320Kg
    ZHQB-300 7.5KW 300KG 380V/3Φ 1200*1200*1700MM 80R/Min 380Kg

    Use cases and a corner of the workshop

    图片1(2) (4)
    图片1(2) (4)
    图片1(3) (2)
    图片1(3) (2)
    图片1(4) (3)
    图片1(4) (3)
    图片1(5) (3)
    图片1(5) (3)
    图片1(6) (2)
    图片1(6) (2)
    图片1(7) (2)
    图片1(7) (2)
