Gaoxin Machinery-Professional Plastic Crusher & Dryer Machine Manufacturer Since 1995.

High-speed powder mix 1
High-speed powder mix 2
High-speed powder mix 1
High-speed powder mix 2

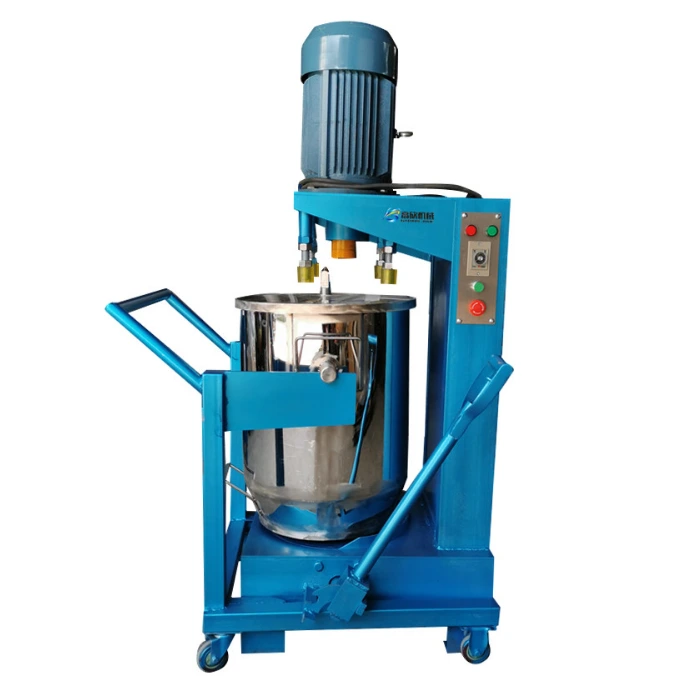

High-speed powder mix

Working principle:

The high-speed powder mixer uses a special "z"-shaped three-layer structure mixing blade.

The upper and lower blades collect the material from both ends to the center, and the inner spiral transports the material from the center to both sides, forming efficient convection mixing, thereby mixing the color. The powder is quickly and fully dispersed and stirred evenly

    oops...!

    no product data.

    Go to homepage

    High-speed toner mixer uses

    It is mainly suitable for efficient mixing and dispersion of various plastics, pigments, toners, additives and other materials.

    High-speed toner mixer uses

    There are various types of powdering machines, and 5KG-10KG-100KG plastic powdering machine models are optional, and the powder can be powdered evenly in batches;

    The blades of the plastic grinder are made of thickened stainless steel and have a double-blade design;

    The distance between the powder blade and the barrel wall is precisely calculated! The speed is fast, the powder is beaten quickly and the uniformity is high.

    Click to view
    undefined

    Product application scope

    It is mainly suitable for efficient mixing and dispersion of various plastics, pigments, toners, additives and other materials.

    1 (29)
    1 (29)
    2 (25)
    2 (25)
    3 (19)
    3 (19)
    4 (14)
    4 (14)

    Plastic mixed and scattered

    Pigments mixed and dispersed

    Mix and disperse toner

    Additives are mixed and dispersed

    Powder bucket and paddle

    Made of stainless steel, the materials are tightly connected without dead ends, smooth and easy to clean; evener, faster and more efficient!

    It has the special function of being quiet and dust-free; reducing noise pollution during operation and damage to the operator's clothing.

    图片1(1) (10)
    图片1(1) (10)
    图片1(2) (8)
    图片1(2) (8)
    图片1(3) (4)
    图片1(3) (4)

    Complete variety, multiple models available

    Working principle: The high-speed powder mixer uses a special "z"-shaped three-layer structure mixing blade. The upper and lower blades collect the material from both ends to the center, and the inner spiral transports the material from the center to both sides, forming efficient convection mixing, thereby mixing the color. The powder is quickly and fully dispersed and stirred evenly

    1 (25)
    10KG
    2 (21)
    20KG
    3 (16)
    30KG
    4 (12)
    50KG
    5 (11)
    100-150KG

    High speed mixer parameters

    model Configuration (kw) (r/min) (kg) (mm)
    (per time/yield)
    LD-10 10kg/5kg桶-1套 2.2 4级 1440 100 510*510*1700
    LD-20 20kg 桶-1套 3 4级 1440 120 580*580*1700
    LD-30 30kg桶-1套 4 6级 980 140 580*580*1750
    LD-50 50kg桶-1套 5.5 6级 980 200 750*950*1600
    LD-100 100kg桶-1套 7.5 6级 980 250 1000*920*2000
    LD-150 150kg桶-1套 11 6级 980 300 1150*1040*2060

    A corner of the high-speed mixer workshop

    11 (8)
    11 (8)
    22 (8)
    22 (8)
    33 (6)
    33 (6)
    44 (6)
    44 (6)
    55 (5)
    55 (5)
    66 (5)
    66 (5)
