Gaoxin Machinery-Professional Plastic Crusher & Dryer Machine Manufacturer Since 1995.

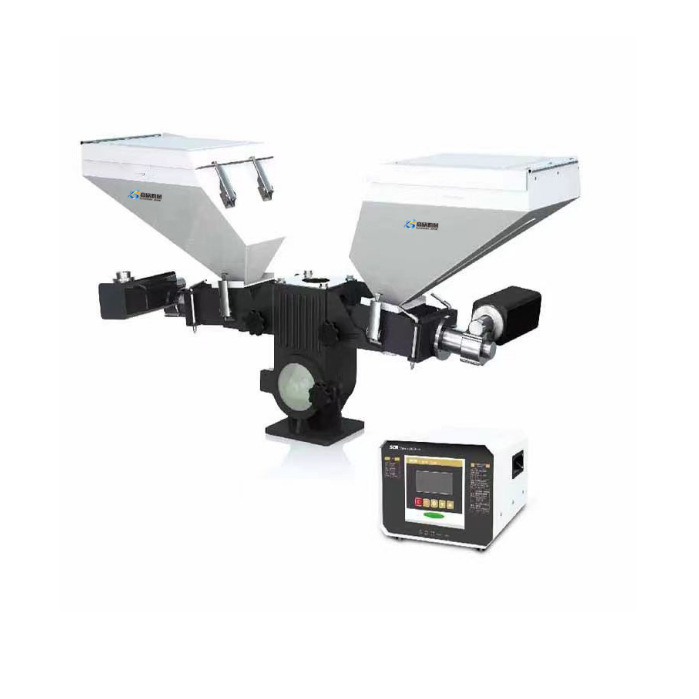

Metering color masterbatch mixer 1
Metering color masterbatch mixer 1

Metering color masterbatch mixer

Adopting PLC color touch screen controller, the metering masterbatch machine uses touch screen as the user operation interface, which is intuitive and convenient. This machine can be synchronized with the injection molding machine signal.

There are many types of screw diameters, which can provide different outputs from 0.04 to 80 kg per hour.

    oops...!

    no product data.

    Go to homepage

    Application range of metering masterbatch mixer:

    Specially used for injection molding machines, extruders, film blowing machines and other molding machines, it is an instrument that automatically mixes one main material with multiple masterbatches or additives in proportion.


    Adopting PLC color touch screen controller, the metering masterbatch machine uses touch screen as the user operation interface, which is intuitive and convenient. This machine can be synchronized with the injection molding machine signal. There are many types of screw diameters, which can provide different outputs from 0.04 to 80 kg per hour

    Click to view
    undefined
    undefined

    Can choose a variety of materials

    Machine features:

    1. PLC touch screen is used to control calculation, accurate measurement and output

    2. The metering masterbatch machine is synchronized with the injection molding machine signal, with formula storage and reading functions, and can be called to start the machine

    3. It has a metering function, automatically monitors the masterbatch or addition situation, and automatically adjusts and adapts when the raw material stacking density changes

    4. The metering part can be removed from the base as a whole without leaking material. There are visual material windows on the base and the side of the hopper, which is easy to observe the raw materials

    5. It can realize quantitative feeding, accurate measurement and stable transportation

    6. Humanized design, simple operation, and stable machine performance

    7. Modular assembly structure, screw and sleeve can be replaced or cleaned

    8. The dryer weight is 200KG and needs to be equipped with a reinforced large base

    9. Optional material level alarm, detect masterbatch blockage and alarm

    10. Optional standard agitator, customer double mixing requirements

    11. Machine maintenance: modular accessories, module switching and maintenance are simple

    12. Flange size: can be customized according to the size required by your company

    13. Applicable to extruders, injection molding machines and blown film modes, please note when placing an order

    14. Foolproof installation and debugging. There is a dedicated engineering telephone to guide installation and debugging

    15. The metering masterbatch machine is not applicable and can be returned

    Can choose a variety of materials

    图片1 (36)
    Mixing type

    Machine features:

    1. PLC touch screen is used to control calculation, accurate measurement and output

    2. The metering masterbatch machine is synchronized with the injection molding machine signal, with formula storage and reading functions, and can be called to start the machine

    3. It has a metering function, automatically monitors the masterbatch or addition situation, and automatically adjusts and adapts when the raw material stacking density changes

    4. The metering part can be removed from the base as a whole without leaking material. There are visual material windows on the base and the side of the hopper, which is easy to observe the raw materials

    5. It can realize quantitative feeding, accurate measurement and stable transportation

    6. Humanized design, simple operation, and stable machine performance

    7. Modular assembly structure, screw and sleeve can be replaced or cleaned

    8. The dryer weight is 200KG and needs to be equipped with a reinforced large base

    9. Optional material level alarm, detect masterbatch blockage and alarm

    10. Optional standard agitator, customer double mixing requirements

    11. Machine maintenance: modular accessories, module switching and maintenance are simple

    12. Flange size: can be customized according to the size required by your company

    13. Applicable to extruders, injection molding machines and blown film modes, please note when placing an order

    14. Foolproof installation and debugging. There is a dedicated engineering telephone to guide installation and debugging

    15. The metering masterbatch machine is not applicable and can be returned

    Technical Parameters

    Model WSM-12 WSM-16 WSM-25
     Motor Power(KW) 0.3 0.3 0.3
    rotary speed(rp.m.) 1.8-300 1.8-300 1.8-300
    Mixer Power(KW) 0.09 0.09 0.09
    Screw Dia.(mm) 12 16 25
    Output Capacity(kg/hr) 0.05-20 0.5-45 5-60
    Storage Capacity(L) 13 13 13
    Dimensions HxWxD(cm) 450x560x310 450x560x310 450x560x310
    (KG) 24 24 24

    Metered masterbatch mixing
