This machine is suitable for various plastic toners, chemical powders, raw material granules, mixing old and new materials, mixing beverage and food grade powders, and other uses;
Rolling barrel color mixer performance
1.Omni-directional 360-degree rotating mixing, the feeding and discharging can be positioned arbitrarily.
2.There are no paddles or bearings in the barrel. The barrel rolls up and down to make the flows collide with each other to achieve a uniform effect.
3.High uniformity and no material contamination;
4.The barrel body is made of stainless steel, the welding is firm and smooth, and it is easy to clean.
Automatic stop and start device, equipped with protective mesh cover, safe operation, beautiful and practical.
Full 360 degree rotation
No bearings, no pollution, no dead angle
Mixing, feeding and discharging can be positioned arbitrarily..
Rolling barrel color mixer uses
This machine is suitable for various plastic toners, chemical powders, raw material granules, mixing old and new materials, mixing beverage and food grade powders, and other uses;

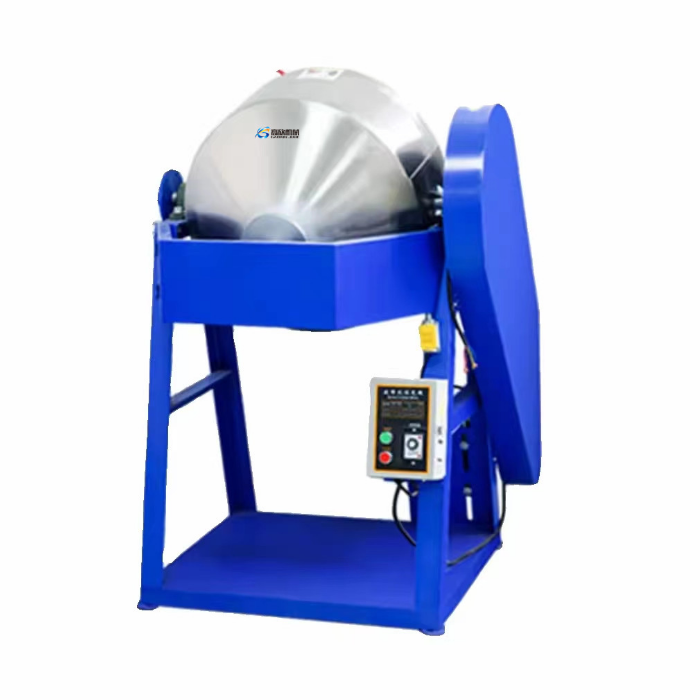

Front view
Back view
Structural diagram of barrel color mixing machine
Technical Parameters
Model | Powre | Capacity | Voltage | Dimensions | Rotating speed | Net Weight |
ZHG-50 | 0.75KW | 50 Kg | 380 /3Φ | 900×890×1400MM | 46/ Min | 120 Kg |
ZHG-100 | 1.5 KW | 100 Kg | 380/ 3Φ | 10602×1020×1350MM | 46/ Min | 147 Kg |
