Plastic Crusher Supplier with Custom Services for Plastic Industry
Product details of the plastic crusher supplier
Product Introduction
Appreciated by most customers, Gaoxin Machinery have been deeply realized the importance of plastic crusher supplier to users. The product has been tested for multiple times to be good in its performance and functionality. As a dominant plastic crusher supplier supplier, Gaoxin Machinery focus on its customer service.

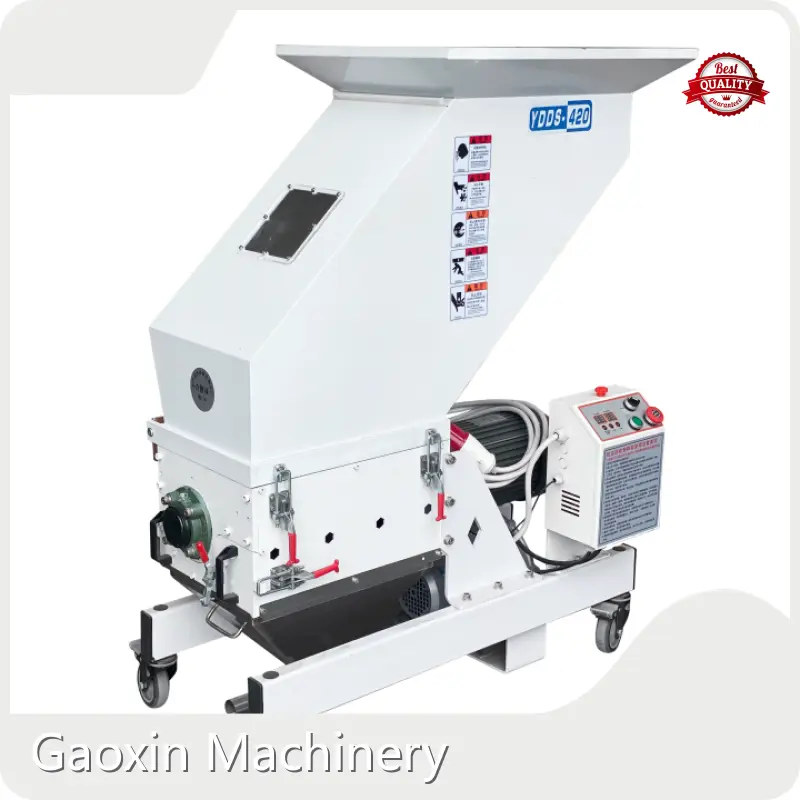

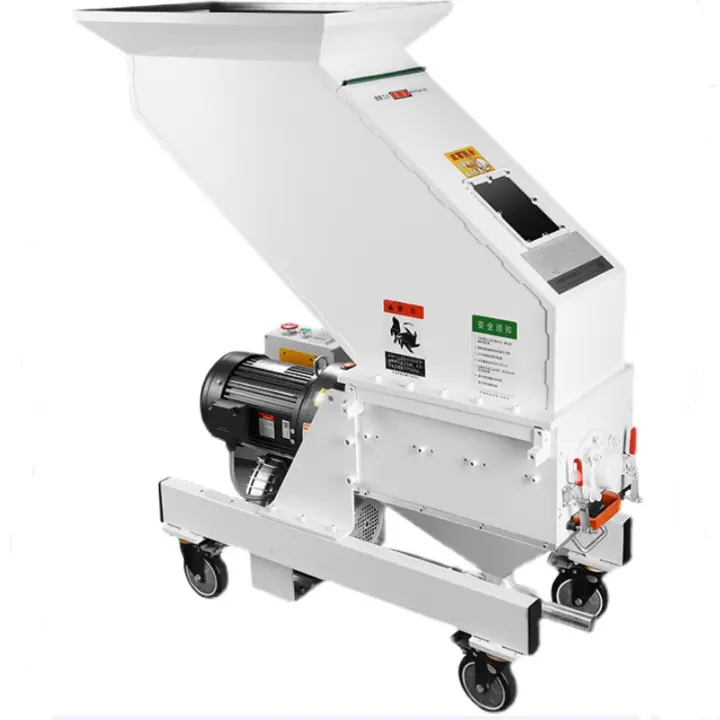

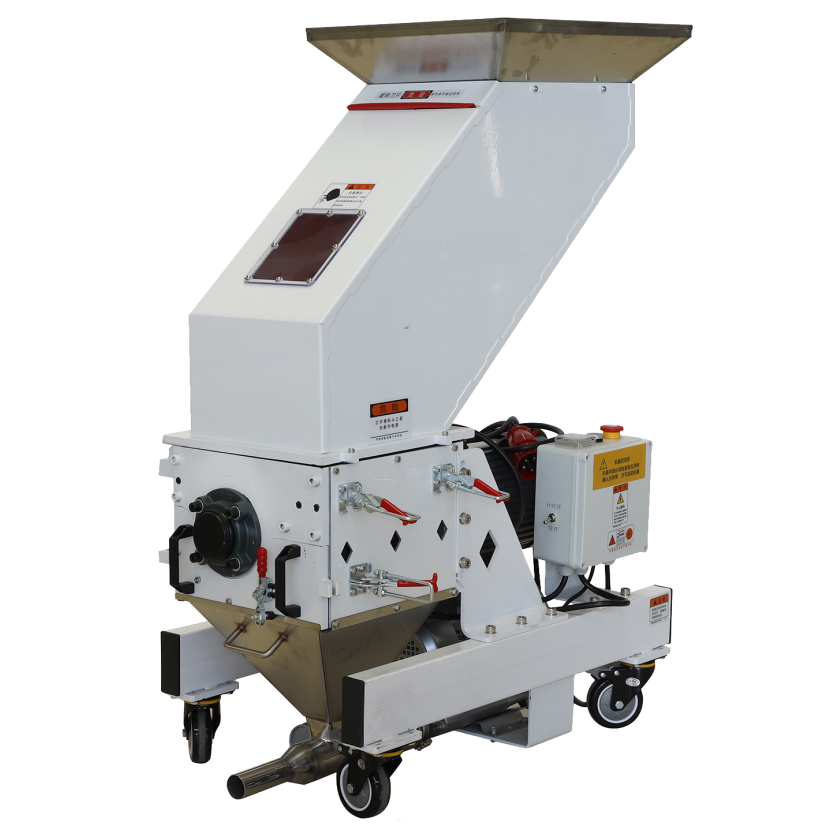

Low speed side grinder
Machine usage:
Suitable for crushing and recycling PC, nylon, ABS and other defective spout materials.
The machine-side crusher is used with injection molding machines and other hosts. It is equipped with a recycling system. The material at the nozzle is immediately recycled in 20 seconds. The crushed materials are automatically sent back to the production equipment. No manual labor is required, and the recycling is fast and pollution-free.
Machine principle:
The nozzle material that needs to be crushed falls into the hopper after being crushed by the machine-side crusher, and then sent to the recycler by the fan. The recycler isolates the powder material and recycles it into the dust bag, while the granular material is the same as in the dryer. According to the required ratio of old and new materials, the new materials are mixed and flowed into the main machine through the manual toilet valve at the bottom of the recycler.
Double-layer soundproof box, ultra-quiet
Let you no longer worry about noise
The barrel is made of stainless steel, which is soundproof and noise-reducing, easy to wash and rust-proof,and keep raw materials from being contaminated
Stepped claw design, made of high-quality knife steel.Adopt gear reducer with high rotation efficiency.It has high crushing efficiency and is especially suitable for occasions with relatively large nozzles.The precise matching gap between the moving and fixed knives is especially suitable for immediate recycling of injection molding machines with soft materials.You can flexibly choose the suction machine + proportional valve, blowing fan + blowing device, conveyor belt, etc.
Pineapple cutter
Forged with SKD11 precision, quenched at 1030C high temperature, and tempered multiple times,
the hardness can reach HRC59-61 degrees, high wear resistance, zero dust, and uniform particles
Crushing effect
PC, PP, PVC, POM, ABS, nylon and other hard nozzle defective materials can be easily crushed
Before crushing: Various nozzle materials and defective waste materials
After crushing: The particles are uniform and free of dust
Automatic recycling system matching
Fully automatic recycling in 20 seconds
New materials and crushed materials are fully automatically mixed and recycled in proportion.
No discoloration, no pollution, no waste
Fan + cyclone recovery system
Various recycling combinations
MACHINE SIDE CRUSHER
Automatic online crushing and recycling of defective plastic spouts
Slow silent crusher
MEDIUM SPEED CRUSHER
LOW SPEED CRUSHER
Pineapple knife type, gnawing crushing, uniform particles, no dust, no noise
Grinder blade chopping, screen feeding,low dust, low noise
Blade shredding, screenfeeding, low dust, low noise
Schematic Diagram
| Models | AMG-2000 | AMG-3000 | AMG-5000 |
| Motor brand | CPG/Shi Yuan (Taiwan) | CPG/Shi Yuan (Taiwan) | CPG/Shi Yuan (Taiwan) |
| Motor Power | 2.2KW | 2.2KW | 3.7KW |
| Electrical appliances | Schneider | Schneider | Schneider |
| Blade material | D2 | D2 | D2 |
| Heat treatment | 61℃ | 61℃ | 61℃ |
| Fixed knife | 2pieces | 2pieces | 4pieces |
| Rotation (S knife) | 8pieces | 10pieces | 15pieces |
| Rotation (pineapple knife) | 24pieces | 30pieces | 45pieces |
| Spindle speed | 140rpm | 140rpm | 140rpm |
| Crushed particles | 5mm-8mm | 5mm-8mm | 5mm-8mm |
| Crushing ability | 50-100(kg/h) | 70-150(kg/h) | 100-200(kg/h) |
| Input size (L*W) | 280*234mm | 280*290mm | 280*430mm |
| Body size (L*W*H) | 800*500*1100mm | 800*500*1200mm | 900*500*1260mm |
| Machine weight | 150kg | 160kg | 200kg |
