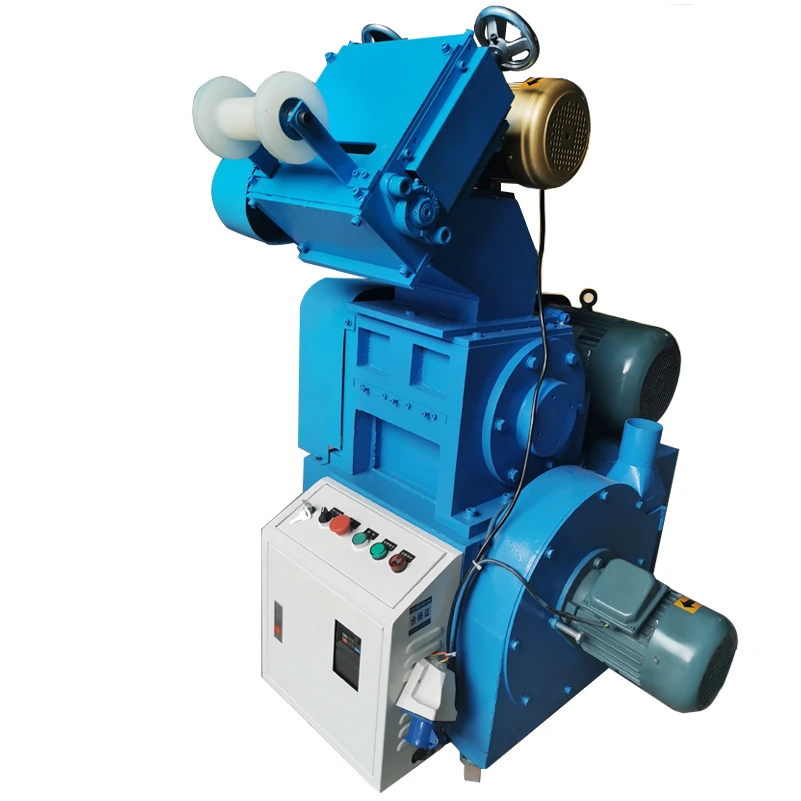

Edge material online crusher

This edge material online crusher can efficiently and effectively process a variety of materials with its powerful crushing capabilities. Its compact dimensions make it easy to integrate into existing production processes for seamless operations.

    oops...!

    no product data.

    Go to homepage

    Edge material online crusher

    Used for online crushing and recycling of machine edges in extrusion, film blowing, and casting equipment. The long edge materials can be automatically pulled into crushing and recycled automatically.


    Sheet/film materials are automatically pulled into and crushed

    The debris is forced into the main screw

    Automatic clamping when sheet/film material thickness changes

    The pull-in speed is adjustable and synchronized with the host

    Click to view
    undefined

    Machine style and performance

    It is suitable for extracting or suction-type recovery and crushing of various soft and hard edges cut during the production of extruders such as casting machines, calenders, sheet machines, and plate machines.

    Then it is transported to the cyclone separator through the pipeline through the fan, and then escorted by the feeding screw into the screw inlet of the extruder and automatically mixed with new materials to achieve the effect of automatic recycling.

    11
    Type A: Air suction type

    Type A: Air suction type
    Suitable for thin and light membrane edge materials

    11
    Type B:Pressure wheel typs

    Type B:Pressure wheel typs
    Suitable for wide and thick films or sheets

    Tool Type

    A variety of cutting tools, selected according to material requirements, more efficient and faster

    undefined
    7 (2)
    Claw knife type
    Narrow blade, strong dispersion force, and large shearing force
    Applicable to: thick and hard material blocks/heads, etc.
    8 (2)
    Blade type
    Universal blade type, rapid crushing and high uniformity of material particles.
    Applicable to: nozzles/defective products/sheets/sprues, etc.
    9 (2)
    Flat knife type
    Wide blade, alloy material, fast and sharp, low dust crushing.
    Applicable to: boxes and baskets/bottle shells/packaging products, films/woven packaging tapes/cloth materials, etc.
    4 (3)
    Heavy duty claw knife
    SK-11 reinforced and hardened material, with strong force and large rotation, For difficult materials such as fiber-reinforced materials, hard rubber head blocks, nylon materials, PC materials, etc.,

    Warm reminder: The above are the types of knives that can be equipped with the standard powerful crusher.

    Please choose the correct one according to the material requirements!

    If you are not sure about the knife type, please contact customer service and let us use our expertise to select the type for you!

    Baozhun plastic crusher brings you: the most practical! The most energy efficient! Maximum efficiency!

    Fourth, Machine Details Display

    11 (2)
    11 (2)
    ● High quality knives
    ● Thickened and reinforced crushing chamber
    ● 57-59℃ igh hardness cutting tools
    ● Good crushing force, durable and wear-resistant
    44 (2)
    ● Limit switch
    ● When the box is opened, the blade automatically stops running to protect the user's safety
    22 (2)
    ● Nut handle
    ● Easy connection, strong and durable
    55 (2)
    ● Large diameter flywheel
    ● Large diameter rotating flywheel
    ● Strong inertia and strong crushing force
    ● Can easily handle thick and hard materials
    33 (2)
    ● Brand motor
    ● All copper core high-end brand
    ● Strong power and stable performance
    66 (2)
    ● Customizable discharge screen
    ● The size of the material discharged is controlled by the screen
    ● 5-50MM range can be customized
    ● The larger the mesh size, the higher the production capacity.

    Schematic Diagram

    Models unit GX163 GX-250
    Crusher Motor HP 1.5KW 3KW
    Rotor Diameter mm 180 220
    Cutting Length mm 160 250
    Stator Knife Pc/Set 2 2
    Rotor Knife Pc/Set 3 3
    Blower Motor HP 1HP 1.5HP
    Capacity Kgs/hr 20~60 45~120
    Toroue Motor KW 0.37 0.75
    Power W 400 400
    L*M*H mm 900*900*1200 1100*900*1300
    N.W KGS 280KG 约420KG
    结构图 (2)
    结构图 (2)
    结构图 (2)
    结构图 (2)

    Host supporting use cases

    It is widely used for online crushing and recycling of various soft and hard edge materials (sheets, plates, film edge materials of PP, PVC, PET, PE, PS and other materials) with a thickness of 0.02-5.0mm.

    11
    Non-woven fabric edge material is broken online

    Non-woven fabric edge material is broken online

    11
    Before breaking

    Automatically press materials into the host machine

    11
    Before breaking

    Bubble film edge material recycling

    11
    Before breaking

    Stretch film edge recycling

    Schematic Diagram

    1 (14)
    Bent bucket crusher
    2 (10)
    Straight bucket crusher
    3 (7)
    Pipe crusher
    4 (4)
    Heavy duty rubber head crusher
    5 (4)
    Silent crusher
    6 (3)
    Sheet film crusher
    7 (2)
    Film sheet edge recycling machine
    8 (2)
    Medium speed slow speed edge machine
    9
    pallet crusher
    10
    Heavy barrel crusher
    11 (3)
    Double shaft shredder
    12
    Single shaft shredder
    13
    Silent dust recycling crusher
    14
    Pipe recycling crusher
    15、Automatic inlet and outlet crusher
    Automatic inlet and outlet crusher
    16
    Conveying iron removal recycling crusher
