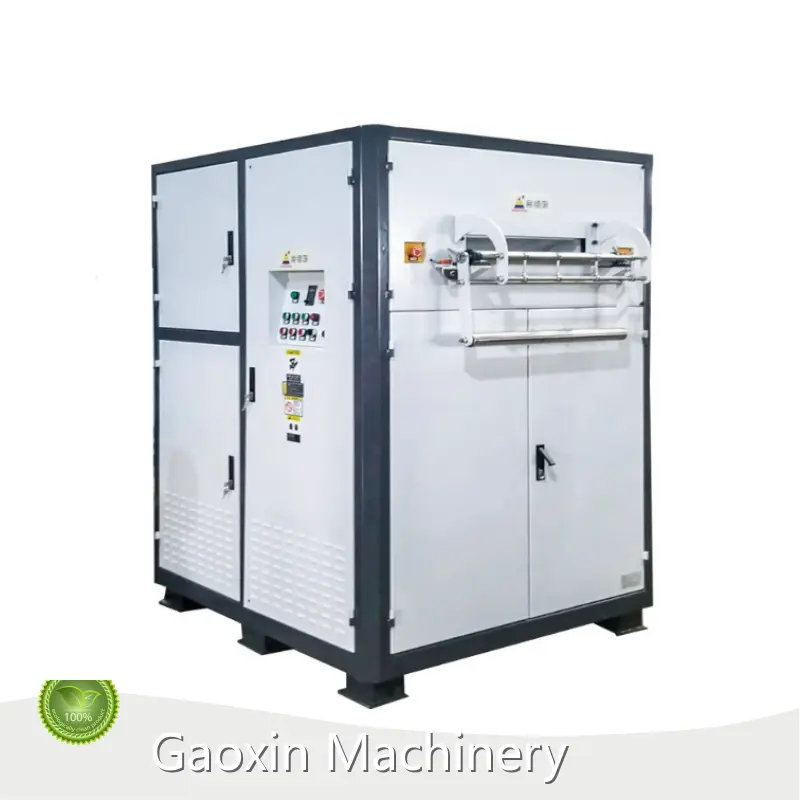

Gaoxin Machinery Plastic Recycling Crusher with Good Price

Product details of the plastic recycling crusher

Product Introduction

Gaoxin Machinery plastic recycling crusher is designed by our experts bringing the latest concepts into the designing process. Multiple testing methods have been carried out to ensure the superior quality of the product. With complete production lines, Gaoxin Machinery guarantees the high efficiency of plastic recycling crusher production.

Sheet cup making online crusher

Suitable for crushed plastic products: PP, PET, PSPVC, PLA, bio-based materials and other disposable plastic products, food packaging plastic blister trays, plastic blister packaging.

Sheet cup making online crusher

Thermoforming online, sheet, cup making, environmentally friendly lunch boxes, blister packaging and other forming machines

The tail end is used as the remaining material in the mesh

Line crushing and conveying, storage.

Click to view

Product Features

Product Features

① Break tradition smash

This machine realizes immediate online crushing and conveying. Material storage is integrated, saving manpower and avoiding raw material contamination

② Customizable duplex position

One crusher can crush two hosts to produce of waste, saving costs

③ Fully enclosed silent design

The fuselage adopts fully enclosed sound insulation treatment Built-in sound insulation material, minimal noise

④ Frequency

The frequency converter adjusts the speed to keep the crusher speed consistent with the host discharge line speed

 Application Range/Breaking Effect

Multifunctional crusher, can be used for both soft and hard materials

Before breaking

After broken

Injection molding nozzle material

Before breaking

After broken

Injection molding nozzle material

Before breaking

After broken

Injection molding nozzle material

Before breaking

After broken

Greenhouse film

Before breaking

After broken

Plastic bucket

Before breaking

After broken

Pipes

Accessory description

Accessory description

Duplex

Double-station automatic clamping, no manual adjustment is required when the material thickness changes.

Enter the host smoothly

The crushed thin film fragments are forced to be transported to the large screw of the main machine to prevent the thin film fragments from bridging and unable to enter the main machine.

Long life

All copper wire motor, long life and durable.

Reduce noise

Soundproof outer box to reduce media noise and avoid dust.

Electrical control

Use Siemens or Taian Electric to ensure stable operation of the equipment.

High hardness cutting tools

High hardness tool material, better wear resistance and higher production efficiency.

Fourth, Machine Details Display

11 (2)

● High quality knives ● Thickened and reinforced crushing chamber ● 57-59℃ igh hardness cutting tools ● Good crushing force, durable and wear-resistant

● Limit switch ● When the box is opened, the blade automatically stops running to protect the user's safety

● Nut handle ● Easy connection, strong and durable

● Large diameter flywheel ● Large diameter rotating flywheel ● Strong inertia and strong crushing force ● Can easily handle thick and hard materials

● Brand motor ● All copper core high-end brand ● Strong power and stable performance

● Customizable discharge screen ● The size of the material discharged is controlled by the screen ● 5-50MM range can be customized ● The larger the mesh size, the higher the production capacity.

Schematic Diagram

Model	unit	GXGR650	GXGR800	GXGR1000	GXGR1200
Crushing chamber	(mm)	650*250	420*280	480*330	660*350
Traction motor	（KW)	0.75	0.75	1.5	1.5
Crushing power	（KW)	11	15	22	37
Feeding motor power	（KW)	2.2	3.75	4	5.5
Traction speed	(m/min)	5-50M（adjustable）	5-50M（adjustable）	5-50M（adjustable）	5-50M（adjustable）
Maximum width	（MM)	640	790	980	1180
maximum thickness	（MM)	2	4	6	9
Crushingcapacity	(kg/h)	200～300	300～400	400～600	600～800
Blade number	PCS	2	4	4	4
Blade number	PCS	6	6	6	9
Operating noise	(db）	80-90	80-90	80-90	80-90
Outine dimensions	(L×W×H MM)	900*1600*2000	1100*1800*2000	1100*2000*2000	1500*2200*2000
Net weight	(kg)	1100	2000	2500	3000

结构图 (2)

结构图 (2)

Use with automation

Traction automatic feeding, can be combined with online automatic crushing and recycling, automatic screw discharging, cyclone automatic storage, high efficiency and energy saving.

Online automatic recycling

Screw discharging + ton bag storage

Cyclone discharging + automatic storage

Schematic Diagram

Bent bucket crusher

Straight bucket crusher

Pipe crusher

Heavy duty rubber head crusher

Silent crusher

Sheet film crusher

Film sheet edge recycling machine

Medium speed slow speed edge machine

pallet crusher

Heavy barrel crusher

Double shaft shredder

Single shaft shredder

Silent dust recycling crusher

Pipe recycling crusher

Automatic inlet and outlet crusher

Conveying iron removal recycling crusher
