Horizontal mixers are often used for large-capacity plastic dyeing and granulation, modification, recycling of recycled materials,
Stirring and drying of PVC, TPR, TPE, PP, PE and other plastic powders and chemical powders
(Such as: calcium carbonate, barium sulfate, talc powder, flame retardant, titanium dioxide, PVC powder, additives, ceramic
Horizontal mixer functions and uses:
1. Suitable for mixing large quantities of plastic granules, powder, new materials, old materials, adding aids, and mixing colors; the single-layer barrel wall has pure mixing function, and the double-layer can be heated. Commonly used for large-capacity plastic dyeing and granulation, modification, recycling of recycled materials, mixing and drying of PVC, TPR, TPE, PP, PE and other plastic powders and chemical powders (such as: calcium carbonate, barium sulfate, talc, Stirring and drying of flame retardants, titanium dioxide, PVC powder, additives, ceramic glazes, etc.).
2. Double-layer oil heating, the temperature is usually 50-150 degrees, up to 300 degrees.
3. A screw feeder can be added to facilitate operator operation.
Two regular models
Suitable for all kinds of powders, granules, broken materials, flake materials, new and old materials and Stir and mix materials of different colors, varieties and sizes.
Fast rotation speed, uniform and fast mixing

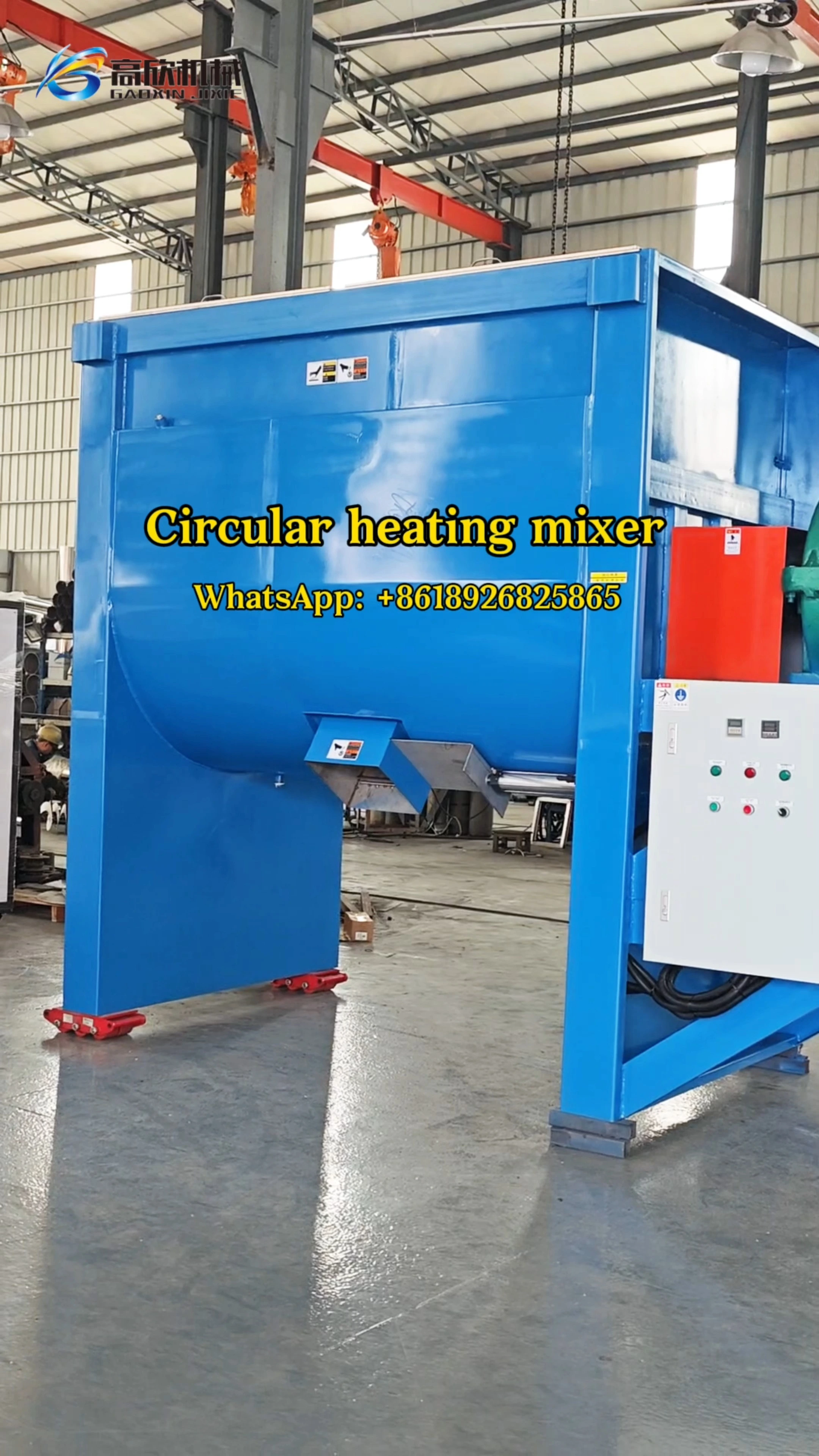

Stirring and drying synchronization:
Oil temperature heating mainly uses an electric heating plate to heat the heat transfer oil in the oil tank to transfer temperature. This temperature is used to stir-fry and dry the materials in the barrel during the mixing process. The interlayer heating of the barrel body can reach an adjustable temperature of 50-200°C and is fully dried. and drainage to achieve sufficient drying and drainage to achieve the purpose of rapid, uniform, mixed drying.
Paddles inside the machine
The mixing principle is: using double "S" mixing blades, the outer spiral collects materials from both sides to the center, and the inner spiral transports materials from the center to both sides, forming efficient convection mixing.
Product application scope
Horizontal mixers are often used for large-capacity plastic dyeing and granulation, modification, recycling of recycled materials,
Stirring and drying of PVC, TPR, TPE, PP, PE and other plastic powders and chemical powders
(Such as: calcium carbonate, barium sulfate, talc powder, flame retardant, titanium dioxide, PVC powder, additives, ceramic glaze, etc.
Various powder materials
Crushed fruit frame material
Plastic materials
Optional models + automated matching
Automated use in injection molding, blow molding, granulation, food, and chemical industries
Technical Parameters
Horizontal mixer parameters:
Model | Motor | Caoacuty | Volume | VOltage | Tachometer | Qutlie dimesions(MM) |
ZHQC-300 | 4 KW | 300 KG | 0.6㎡ | 380V/50HZ | 20r/min | 2000*1100*1600 |
ZHQC-500 | 5.5 KW | 500 KG | 1㎡ | 380V/50HZ | 20r/min | 2500*900*1700 |
ZHQC-1000 | 11 KW | 1000 KG | 2㎡ | 380V/50HZ | 18r/min | 3000*1300*2100 |
ZHQC-1500 | 15 KW | 1500 KG | 3㎡ | 380V/50HZ | 18r/min | 3020*1400*2200 |
ZHQC-2000 | 20 KW | 2000 KG | 4㎡ | 380V/50HZ | 15r/min | 3450*1500*2400 |
ZHQC-3000 | 30 KW | 3000 KG | 6㎡ | 380V/50HZ | 15r/min | 3780*1910*2700 |
ZHQC-5000 | 45KW | 5000 KG | 10㎡ | 380V/50HZ | 11r/min |
4600*1930*2550MM |
Horizontal heating mixer parameters:
Model | Motor | Electrothermal | Caoacuty | Volume | VOltage | Tachometer | Qutlie dimesions(MM) |
ZHQC-300 | 4 KW | 8 KW | 300 KG | 0.6㎡ | 380V/50HZ | 20r/min | 2000*1100*1600 |
ZHQC-500 | 5.5 KW | 12KW | 500 KG | 1㎡ | 380V/50HZ | 20r/min | 2500*900*1700 |
ZHQC-1000 | 11 KW | 21 KW | 1000 KG | 2㎡ | 380V/50HZ | 18r/min | 3000*1300*2100 |
ZHQC-1500 | 15 KW | 24KW | 1500 KG | 3㎡ | 380V/50HZ | 18r/min | 3020*1400*2200 |
ZHQC-2000 | 20 KW | 31KW | 2000 KG | 4㎡ | 380V/50HZ | 15r/min | 3450*1500*2400 |
ZHQC-3000 | 30 KW | 42 KW | 3000 KG | 6㎡ | 380V/50HZ | 15r/min | 3780*1910*2700 |
ZHQC-5000 | 45KW | 56KW | 5000KG | 10㎡ | 380V/50HZ | 11r/min | 4600*1930*2550MM |
Usage and shipping cases
