Crusher Machine Plastic for Plastic Industry Factory Price

Product details of the crusher machine plastic

Product Overview

In the development of Gaoxin Machinery crusher machine plastic, the research design is put into a huge cost. The product is praised by our customers for its high performance and good durability. Dongguan Gaoxin Machinery Co., Ltd. unlocks gains and efficiencies with its skilled engineers.

Product Information

Compared with peer products, our crusher machine plastic has more obvious advantages and they are reflected in the following aspects.

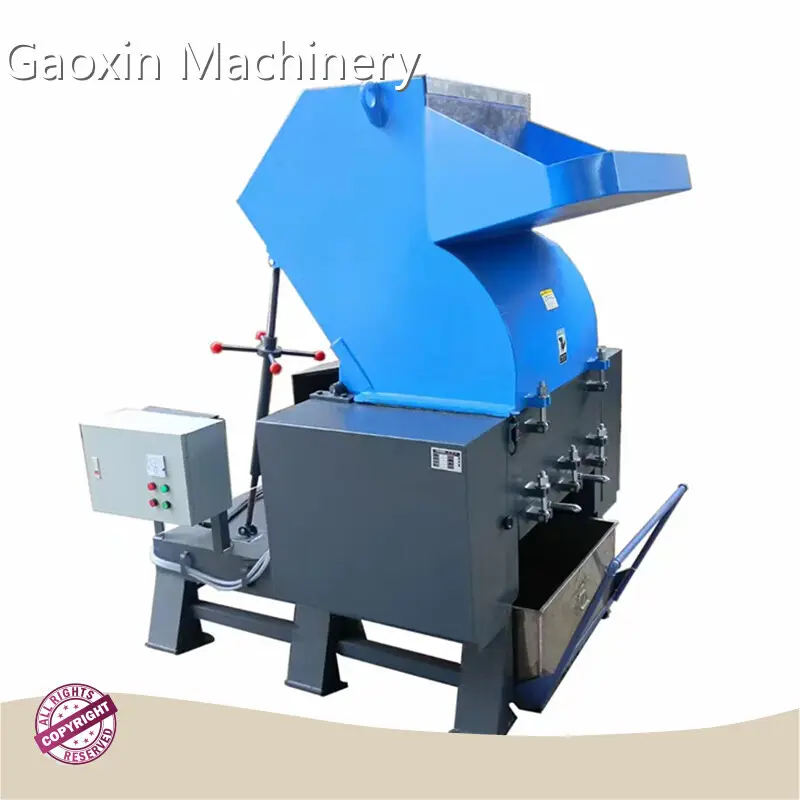

Powerful Plastic Crusher

Powerful plastic crusher:

1. All-steel welded machine base, sturdy and durable.

2. Easy-to-disassemble design, convenient for cleaning and maintenance.

3. High-quality high-hardness knives, sharp blades, easy to replace, and durable.

4. Crush all kinds of soft materials, hard plastics, thin woven tapes, fruit baskets, plastic buckets, pipes and sheets more easily

5. The size of the machine can be customized, and the production capacity can reach 100KG--2 tons/H.

Discharge size: The standard screen aperture is 8-12MM. The crushed granules can be determined according to the screen aperture size.

The larger the mesh, the higher the production capacity.

Click to view

 Application Range/Breaking Effect

Multifunctional crusher, can be used for both soft and hard materials

Before breaking

After broken

Injection molding nozzle material

Before breaking

After broken

Injection molding nozzle material

Before breaking

After broken

Injection molding nozzle material

Before breaking

After broken

Greenhouse film

Before breaking

After broken

Plastic bucket

Before breaking

After broken

Pipes

Tool Type

A variety of cutting tools, selected according to material requirements, more efficient and faster

Claw knife type

Narrow blade, strong dispersion force, and large shearing force Applicable to: thick and hard material blocks/heads, etc.

Blade type

Universal blade type, rapid crushing and high uniformity of material particles. Applicable to: nozzles/defective products/sheets/sprues, etc.

Flat knife type

Wide blade, alloy material, fast and sharp, low dust crushing. Applicable to: boxes and baskets/bottle shells/packaging products, films/woven packaging tapes/cloth materials, etc.

Heavy duty claw knife

SK-11 reinforced and hardened material, with strong force and large rotation, For difficult materials such as fiber-reinforced materials, hard rubber head blocks, nylon materials, PC materials, etc.,

Warm reminder: The above are the types of knives that can be equipped with the standard powerful crusher.

Please choose the correct one according to the material requirements!

If you are not sure about the knife type, please contact customer service and let us use our expertise to select the type for you!

Baozhun plastic crusher brings you: the most practical! The most energy efficient! Maximum efficiency!

Fourth, Machine Details Display

11 (2)

● High quality knives ● Thickened and reinforced crushing chamber ● 57-59℃ igh hardness cutting tools ● Good crushing force, durable and wear-resistant

● Limit switch ● When the box is opened, the blade automatically stops running to protect the user's safety

● Nut handle ● Easy connection, strong and durable

● Large diameter flywheel ● Large diameter rotating flywheel ● Strong inertia and strong crushing force ● Can easily handle thick and hard materials

● Brand motor ● All copper core high-end brand ● Strong power and stable performance

● Customizable discharge screen ● The size of the material discharged is controlled by the screen ● 5-50MM range can be customized ● The larger the mesh size, the higher the production capacity.

Automatic Use

It can be matched with fan storage barrel discharge, conveyor belt feeding, and screw machine automatic feeding and discharging system, saving time, labor and manpower, and more efficient production capacity

1 (13)

2 (9)

3 (6)

Schematic Diagram

Model	unit	GXGP230	GXGP300	GXGP400	GXGP500	GXGP600	GXGP800	GXGP1000	GXGP1200
Crushing chamber	(mm)	230×200	310×200	410×230	515×290	610×320	815×470	1020*610	1220*720
Crushing capacity	(kg/h)	100～150	150～200	200～250	300～350	350～450	600～800	800～1000	1000～1200
Blade number	PCS	2	2	2	2	4	4	4	4
Blade number	PCS	6	9	12	15	18	24	30	36
Power	Kw	4	5.5	7.5	11	15	22/30	37.5/55	55/75
	HP	5	7.5	10	15	20	30/40	50/75	75/100
Outine dimensions	(L×W×H MM)	940×600×1090	1150×720×1220	1160×840×1310	1430×1010×1550	1500×1110×1730	2150×1490×2220	2500*1750*2750	2600*2150*3100
Net weight	(kg)	288	432	500	900	1100	2000	3000	4500

结构图 (2)

结构图 (2)

Schematic Diagram

Bent bucket crusher

Straight bucket crusher

Pipe crusher

Heavy duty rubber head crusher

Silent crusher

Sheet film crusher

Film sheet edge recycling machine

Medium speed slow speed edge machine

pallet crusher

Heavy barrel crusher

Double shaft shredder

Single shaft shredder

Silent dust recycling crusher

Pipe recycling crusher

Automatic inlet and outlet crusher

Conveying iron removal recycling crusher

Packaging & Shipping

1 (15)

2 (11)

3 (8)

4 (5)

5 (5)

6 (4)

7 (3)

Company Introduction

Dongguan Gaoxin Machinery Co., Ltd. is a modern company located in dong guan. And the main product is Plastic machinery and general machinery,Plastic Crusher,Mixer Dryer Machine,Plastic Recycling Machine,Industrial Chiller. Based on the principle of providing customers with high-quality products, our company has always been taking integrity and duty as the enterprise spirit, and customer first as the corporate mission. Gaoxin Machinery has a group of experienced R&D and product management teams. They can independently complete all aspects from production, quality control to export, and can meet the requirements of customers and the market for product quality. Guided by the actual needs of customers, Gaoxin Machinery provides comprehensive, perfect and quality solutions based on the benefit of customers.
We value honesty greatly and always keep the promise. And our products are complete in kinds and reliable in quality. If you have any needs, feel free to contact us at any time.
