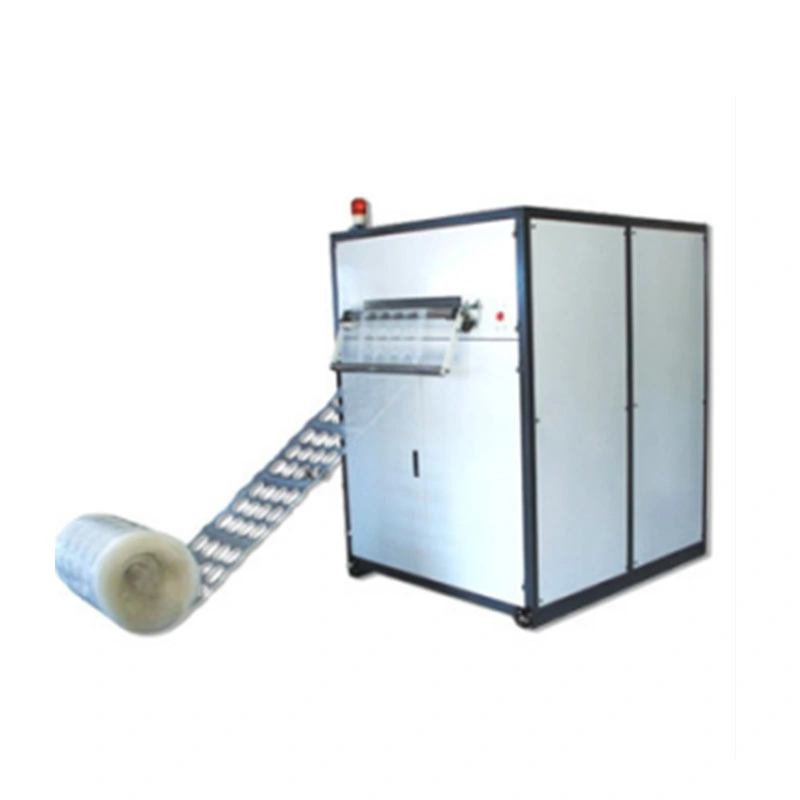

Online crushing machine for sheet cup making

● Thermoforming online, sheet, cup making, environmentally friendly lunch boxes, blister packaging and other forming machines

● The tail end is used as the remaining material in the mesh

● Line crushing and conveying, storage.

Application scope:

Suitable for crushed plastic products: PP, PET, PSPVC, PLA, bio-based materials and other disposable plastic products, food packaging plastic blister trays, plastic blister packaging.

Inquiry

Write a Review

Features

① Break tradition smash

This machine realizes immediate online crushing and conveying.

Material storage is integrated, saving manpower and avoiding raw material contamination

② Customizable duplex position

One crusher can crush two hosts to produce

of waste, saving costs

③ Fully enclosed silent design

The fuselage adopts fully enclosed sound insulation treatment

Built-in sound insulation material, minimal noise

④ Frequency

The frequency converter adjusts the speed to keep the crusher speed consistent with the host discharge line speed

Accessory description

Special V-shaped SKD-11 high wear-resistant cutting tool

Duplex

Double-station automatic clamping, no manual adjustment is required when the material thickness changes

Enter the host smoothly

The crushed thin film fragments are forced to be transported to the large screw of the main machine to prevent the thin film fragments from bridging and unable to enter the main machine

Long life

All copper wire motor, long life and durable

Reduce noise

Soundproof outer box to reduce media noise and avoid dust

Electrical control

Use Siemens or Taian Electric to ensure stable operation of the equipment

High hardness cutting tools

High hardness tool material, better wear resistance and higher production efficiency

Use with automation

Traction automatic feeding, can be combined with online automatic crushing and recycling, automatic screw discharging,

cyclone automatic storage, high efficiency and energy saving

Screw discharging + ton bag storage

Cyclone discharging + automatic storage

Online automatic recycling

Technical parameters

Model	unit	GXGR650	GXGR800	GXGR1000	GXGR1200
Crushing chamber	(mm)	650*250	420*280	480*330	660*350
Traction motor	(KW)	0.75	0.75	1.5	1.5
Crushing power	(KW)	11	15	22	37
		2.2	3.75	4	5.5
Traction speed	(m/min)	5-50M（adjustable）	5-50M（adjustable）	5-50M（adjustable）	5-50M（adjustable）
Maximum width	(MM)	640	790	980	1180
maximum thickness	(MM)	2	4	6	9
Crushingcapacity	(kg/h)	200～300	300～400	400～600	600～800
Blade number	PCS	2	4	4	4
Blade number	PCS	6	6	6	9
Operating noise	(db）	80-90	80-90	80-90	80-90
Outine dimensions	(L×W×H MM)	90016002000	110018002000	110020002000	150022002000
Net weight	(kg)	1100	2000	2500	3000
