Industrial chillers
Uses of industrial chillers:
It should be used for cooling various molds, pipelines, and water tanks to improve the surface finish of plastic products, reduce marks, prevent products from shrinking and deforming, and make them easy to demold. It is convenient for demolding plastic products, accelerates product shaping, and greatly improves the production efficiency of plastic molding machines.
Application industries:
Injection molding, extrusion, bottle blowing, machining, casting, surface treatment, laser technology, welding, plastic molding, electronics, electroplating, pharmaceutical chemicals, printing and other industries
A corner of the production workshop

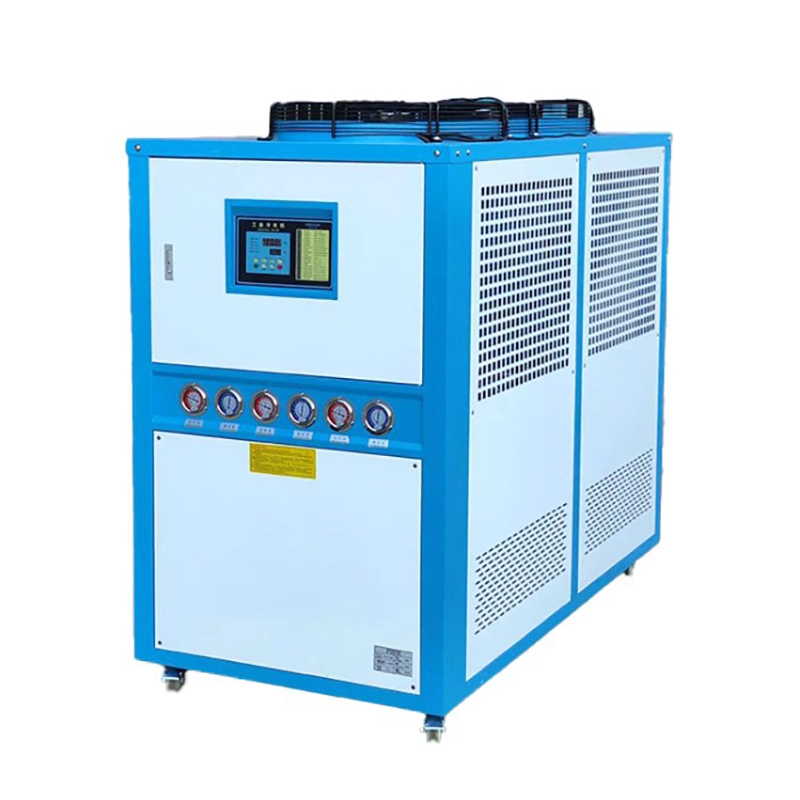

Air-cooled chiller physical picture
5HP-200HP models are available
Detailed description
High-quality accessories for higher quality
Compressor: Panasonic brand
New machine ice, low noise, fast cooling, stable performance
Water pump: Taiwan Muchuan
Large flow, strong power
Control panel: Bangpu brand microcomputer control Full-featured, intelligent control
Evaporator: All copper material
Thickened all copper evaporator, fast heat dissipation
Features of air-cooled chillers
The advantages of air-cooled chillers are: they inhale cold air by themselves and discharge hot air to dissipate heat, without the need for an external cooling tower, without the restriction of circulating water pipes, and are easy to install and move.
No need to install a cooling water tower, easy to install and move, suitable for places where water sources are scarce and no water towers are required. Low-noise fan motor, excellent cooling and condensing effect, stable throttling mechanism, and excellent anti-rust treatment.
Adopt high-performance compressors imported from Europe and the United States, with high EER value, low noise and stable operation. This product adopts a touch-type waterproof and dustproof control panel, and the cooling temperature is adjustable from 3 to 30℃. The contactor belongs to the French Schneider series. The control system adopts a modular design and is equipped with multiple protection devices such as system acid and alkali protection, current overload protection, high and low voltage protection, and time delay protection. If there is a fault, it will alarm and display the fault in time.
This product uses a brand new original imported compressor, which belongs to the Japanese Sanyo Panasonic series, making the product more energy efficient. Condenser The vertical shell and tube design is adopted, and the evaporator copper tube adopts high-efficiency internally threaded copper tube, which can effectively improve the thermal effect and is also easy to clean.
Three evaporator modes
Suitable for different refrigeration purposes of equipment
Example: cooling injection molding machines, laser machines, printing machines, etc.
For example: food grade equipment, drinking water cooling, etc.
For example: cooling extruder tanks, cooling pools, etc.
Use the installation diagram for reference
Widely used
Technical parameters
| Model | GX-3FWS | GX-5FWS | GX-8FWS | GX-10FWS | GX-15FWS | GX-20FWS | GX-30FWS | GX-40FWS | GX-50FWS | |||
| Refrigerating capacity | W | 9000 | 15000 | 24000 | 30000 | 45000 | 60000 | 90000 | 120000 | 140000 | ||
| Compressor power | KW | 2.2 | 3.7 | 6 | 7.5 | 11 | 15 | 22 | 30 | 30 | ||
| Frozen warer pump power | HP | 0.5 | 0.5 | 1 | 1 | 2 | 3 | 3HP | 5HP | 5HP | ||
| Cooiling warer fiow | L/min | 100 | 100 | 200 | 200 | 340 | 520 | 520 | 800 | 800 | ||
| Water pump head | m | 18 | 18 | 18 | 18 | 18 | 18 | 20 | 20 | 20 | ||
| Chilled water pipe | 寸 | 1 | 1 | 1 | 1.5 | 2 | 2 | 2.5 | 2.5 | 2.5 | ||
| Tank capacity | L | 54 | 54 | 156 | 156 | 180 | 260 | 280 | 460 | 580 | ||
| Cooling fan | MM | 350*2 | 400*2 | 450*2 | 450*2 | 600*2 | 550*3 | 630*3 | 600*4 | 630*4 | ||
| Net weight | Kg | 160 | 190 | 310 | 350 | 520 | 630 | 840 | 1140 | 1500 | ||
| Outline dimensions | L*W*H(mm) | 110*500*990 | 120*500*1060 | 1450*700*1500 | 1450*700*1500 | 1750*900*1600 | 2000*900*1750 | 2200*930*1750 | 2200*1760*1980 | 2500*1900*2100 | ||
| lnput power | 3P-380V( 415-50HZ / 60HZ ; 3PH-220V 50HZ/ 60HZ ) | |||||||||||
| Refrigerant | R22(R407C/ 134a/ 404A/410A) | |||||||||||
| Thput power | Capillary / exernal balance of thermal expansion | |||||||||||
