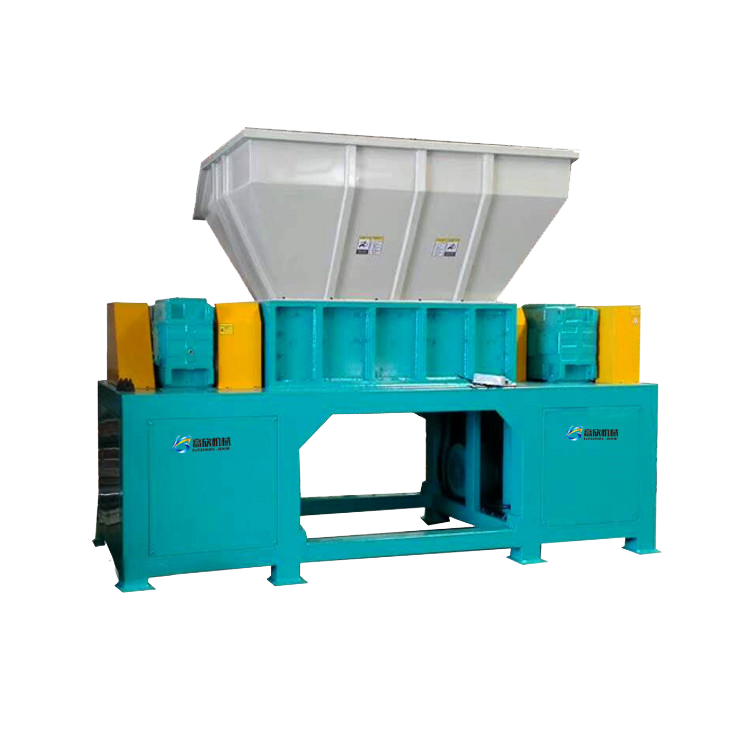

Double shaft shredders 1
Double shaft shredders 1

Double shaft shredders

Therefore, it is widely used in coarse and medium crushing operations of various solid waste, films, rubber heads, tires, plastic barrels, scrap household appliances, metal, leather, carton wood, rubber, etc., with a single machine processing capacity of 5-25 tons per hour.

    oops...!

    no product data.

    Go to homepage

    Double shaft shredder performance:

    Specially used for shredding bulk materials, waste and other materials.

    By shearing each other with two sets of cutterheads composed of high-grade alloy steel, various soft and hard materials are sheared, torn and squeezed to achieve the effect of shredding and reducing the size of the materials.

    This machine has the characteristics of large output, low energy consumption, low noise, and low dust.

    Double shaft shredder uses:

    Therefore, it is widely used in coarse and medium crushing operations of various solid waste, films, rubber heads, tires, plastic barrels, scrap household appliances, metal, leather, carton wood, rubber, etc., with a single machine processing capacity of 5-25 tons per hour.

    Click to view
    撕碎机1

    Application scope

    Widely used in various solid waste, scrap tires, rubber, barrels, waste plastics, scrap metal, wood, etc. Agricultural film woven bags, wires and cables, waste household appliances, sofas, paper, leather, wood, pipes, metal, household waste, It is suitable for coarse and medium crushing of medical waste, electronic waste, circuit boards, oil drum rubber, etc., with high output. (Strong shredding, recycling; large output, low energy consumption, low noise, low dust)

    图片1 (64)
    Agricultural film woven bag
    10 (3)
    Rubber tires
    4 (23)
    Plastic glue bucket
    图片1 (61)
    Rubber head block
    5 (19)
    Tray pallet
    6 (14)
    Old household appliances
    7 (8)
    Drum
    8 (5)
    Silk fishing net
    9 (3)
    Auto parts
    图片1(1) (17)
    Hardware and electronics
    11 (17)
    Old clothes sponge
    12 (5)
    Wood

    Processing effect

    1 (43)
    Plastic
    2 (35)
    Pipes
    3 (29)
    Wood
    4 (24)
    Tire
    5 (20)
    Hardware and electronics
    6 (15)
    Film

    Tool structure

    (Hardness reaches 58 degrees right) Two types of knife types are available, with knife widths ranging from 10MM to 80MM and sizes available.

    图片1(2) (13)
    Combination knife
    图片1(3) (7)
    Double hob
    图片1(4) (4)
    Integral knife
    图片1(5) (4)
    Mining knife

    Automatic matching of double-shaft shredder

    图片1(6) (3)
    Automatic discharging + secondary crushing by crusher + automatic recycling and storage
    图片1(7) (3)
    Conveyor belt feeding + outgoing belt discharging
    Model GX-600 GX-800 GX-1000 GX-1200 GX-1400
    Main motor power/KW 7.5+7.5 22+22 30+30 40+40 50+50
    Shredding Chamber Measurement/mm 600*450 800*600 1000*600 1200*600 1410*800
    Rotator Diameter/mm Φ220 Φ290 Φ290 Φ300 Φ440
    Spindle speed(r/min) 15 15 15 15 15
    Mobile Cutter Number/PCS 48 60 60 100 100
    Fixed Cutter Number/PCS 16 20 20 20 20
    Cutter Thickness/mm 30 50 50 60 70
    Dimensions/mm 1500*800*1600 2600*1000*2000 2800*1000*2000 3200*100*2400 3400*1500*2600
    Weight/KG 900 2200 2500 3200 5600

    Double shaft shredder physical picture reference

    图片1(8) (2)
    图片1(8) (2)
    图片1(9) (2)
    图片1(9) (2)
    图片1(10)
    图片1(10)
    图片1(11)
    图片1(11)
