Air-cooled granulator, environmentally friendly granulator 1
Air-cooled granulator, environmentally friendly granulator 1

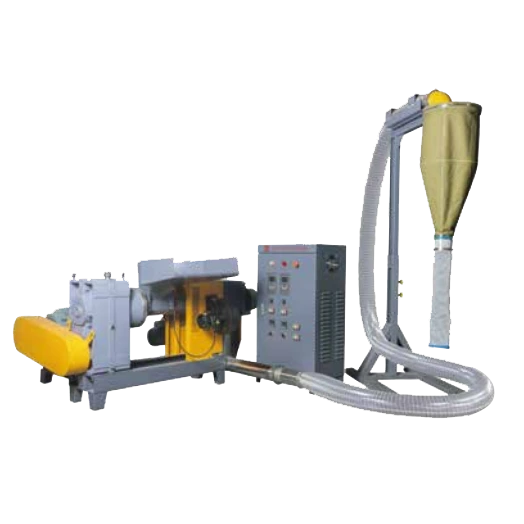

Air-cooled granulator, environmentally friendly granulator

No heating, no water, no modification,

Odorless, smokeless, energy-saving and environmentally friendly

    oops...!

    no product data.

    Go to homepage

    Main uses

    Suitable for the treatment, recycling and manufacturing of waste, defective products and scraps of film materials, bubble films, melt-blown fabrics, non-woven fabrics, CPE.PE.CPP.PO.PP.PET.PA, PVC, TPU and other films. materials, used in conjunction with a high proportion of raw materials


    Machine advantages:

    No heating, no water, no modification,

    Odorless, smokeless, energy-saving and environmentally friendly

    Click to view
    75型1

    Scope of application

    Used for processing film materials, bubble films, melt-blown fabrics, non-woven fabrics, CPE.PE.CPP.PO.PP.PET.PA, PVC, TPU and other waste materials, defective products, and scrap materials, recycling materials, and can be used with raw materials Used in conjunction with high proportions

    Uniform particles, odorless, smokeless and static-free

    1 (41)
    PO
    2 (32)
    PE
    3 (26)
    PE
    4 (21)
    TPU
    5 (17)
    Degradable
    6 (13)
    PVC
    7 (7)
    PA
    8 (4)
    PE

    Scenes to be used

    Odorless and smokeless, energy-saving and environmentally friendly

    图片1 (59)
    Non-woven fabrics
    图片2 (24)
    Film type
    图片3 (15)
    Bubble wrap

    Three models to choose from

    The production capacity can reach 30KG-300KG per hour

    75型1

    GX-75 environmentally friendly granulator

    Applicable materials: LDPE/GXPE/CPE/PVC/TPU/degradable and other plastics

    ● No water consumption

    ● Energy saving and environmental protection

    ● No modification

    ● Smokeless and odorless

    图片1 (60)

    Model

    Output*

    Average power consumption*

    Total power

    Working current

    Total Weight

    land area

    GX-75

    30~60 KG/hours

    200~250 degrees/ton

    ~13 KW

    15~24 A

    0.78 T

    3 M2

    *Output/power consumption will vary depending on the material.

    Part Brand Parameter Quantity
    Screw diameter   75 MM 1
    Extrusion motor Feng Sheng Level6 11 KW 1
    Cutter motor Feng Sheng Level6 0.75 KW 1
    Frequency converter Hope senlan 11 KW 1
    0.75 KW 1
    Fan Champions League 0.75 KW 2
    146 1
    PVC steel wire pipe   10 M 1
    Buckle     2
    Blade     10
    Screen changer (optional)   Manual duplex
    None
    Filter mesh   80 mesh stainless steel thickened 30
    Part Brand Parameter Quantity
    Screw diameter   110 MM 1
    Extrusion motor Siemens Level6 37 KW 1
    Cutter motor Feng Sheng Level6 0.75 KW 1
    Frequency converter Hope senlan 37 KW 1
    0.75 KW 1
    Fan Champions League 1.5 KW 3
    0.75 KW 2
    Cooling cabinet     2
    Reducer   200 1
    Stainless steel storage barrel   200 KG 1
    PVC steel wire pipe   5 M 3
    Buckle     6
    Blade     30
    Screen changer (optional)   Automatic duplex R
    None
    Filter mesh   80 mesh stainless steel thickened 30
    1500型1 (2)

    GX-110 environmentally friendly granulator

    Applicable materials: LDPE/GXPE/CPE/PVC/TPU/degradable and other plastics

    ● No water consumption

    ● Energy saving and environmental protection

    ● No modification

    ● Smokeless and odorless

    图片1 (60)

    Model

    Output*

    Average power consumption*

    Total power

    Working current

    Total Weight

    land area

    GX-110

    80~130 KG/hours

    200~250 degrees/ton

    45 KW

    50~80 A

    2.4 T

    10 M2

    *Output/power consumption will vary depending on the material.

    Part Brand Parameter Quantity
    Screw diameter   110 MM 1
    Extrusion motor Siemens Level 37 KW 1
    Cutter motor Feng Sheng Level 0.75 KW 1
    Frequency converter Hope senlan 37 KW 1
    0.75 KW 1
    Fan Champions League 1.5 KW 3
    0.75 KW 2
    Cooling cabinet     2
    Reducer   200 1
    Stainless steel storage barrel   200 KG 1
    PVC steel wire pipe   5 M 3
    Buckle     6
    Blade     30
    Screen changer (optional)   Automatic duplex R
    None
    Filter mesh   80 mesh stainless steel thickened 30



    1500型1 (2)

    GX-150 environmentally friendly granulator

    Applicable materials: LDPE/GXPE/CPE/PVC/TPU/degradable and other plastics

    ● No water consumption

    ● Energy saving and environmental protection

    ● No modification

    ● Smokeless and odorless

    图片1 (60)

    Model

    Output*

    Average power consumption*

    Total power

    Working current

    Total Weight

    land area

    GX-150

    150~230 KG/hours

    200~250 degrees/ton

    ~65 KW

    60~100 A

    3.1 T

    10 M2

    *Output/power consumption will vary depending on the material.

    Part Brand Parameter Quantity
    Screw diameter   150 MM 1
    Extrusion motor Siemens Level 6 55 KW 1
    Cutter motor Feng Sheng Level 6 0.75 KW 1
    Frequency converter Hope senlan 55 KW 1
    0.75 KW 1
    Fan Champions League 1.5 KW 3
    0.75 KW 2
    Cooling cabinet     2
    Reducer   280 1
    Stainless steel storage barrel   200 KG 1
    PVC steel wire pipe   5 M 3
    Buckle     6
    Blade     30
    Screen changer (optional)   Automatic duplex R
    None
    Filter mesh   80 mesh stainless steel thickened
