Recycling Grinder Machine for Plastic Industry with Good Price
Product details of the recycling grinder machine
Product Information
Thanks to its design, Gaoxin Machinery recycling grinder machine brings much convenience for customers. With superior craftsmanship, Gaoxin Machinery ensures the quality of this product. It caters for the development of industry market with a broader prospect.
Single shaft shredder performance:
It is specially used for shredding heavy bulk materials, waste garbage and other materials.
By shearing each other with two sets of cutterheads composed of high-grade alloy steel, various soft and hard materials are sheared, torn and squeezed to achieve the effect of shredding and reducing the size of the materials.
This machine has the characteristics of large output, low energy consumption, low noise, and low dust.
Single shaft shredder uses:
Therefore, it is widely used in coarse and medium crushing operations of various solid waste, plastic rubber heads, pipes, blocks, tires, plastic barrels, scrap household appliances, metal, leather, carton wood, rubber, etc., with a single machine processing capacity of 5- 25 tons.
Application scope
Widely used in various solid waste, scrap tires, rubber, barrels, waste plastics, scrap metal, wood, etc. Agricultural film woven bags, wires and cables, waste household appliances, sofas, paper, leather, wood, pipes, metal, household waste, It is suitable for coarse and medium crushing of medical waste, electronic waste, circuit boards, oil drum rubber, etc., with high output. (Strong shredding, recycling; large output, low energy consumption, low noise, low dust)
Processing effect
Tool structure
Use high hardness DC53/D2 material cutters, durable and durable (Hardness reaches 58 degrees right) Two types of knife types are available, with knife widths ranging from 10MM to 80MM and sizes available.
Automatic matching of double-shaft shredder
Conveyor belt feeding + outgoing belt discharging
| Model | 600 | 700 | 800 | 1000 | 1200 | 1400 |
| Inlet size (D*F) (mm) | 1210 X 1210 | 1300 X1270 | 1420X 1500 | 1420 X1700 | 1420 X1900 | 1420 X2100 |
| Discharge height C(mm) | 480 | 560 | 560 | 560 | 560 | 560 |
| Cylinder stroke (mm) | 500 | 650 | 800 | 800 | 800 | 800 |
| Rotor diameter (mm) | 225 | 305 | 385 | 395 | 395 | 395 |
| Rotor length (mm) | 600 | 700 | 800 | 1000 | 1200 | 1400 |
| Spindle speed (rpm) | 80 | 80 | 80 | 80 | 80 | 80 |
| Screen aperture (mm) | 40 | 40 | 40 | 40 | 40 | 40 |
| Number of operating knives (PCS) | 23+4 | 29+4 | 35+4 | 45+4 | 55+4 | 70+4 |
| Fixed tool quantity (PCS) | 2+2 | 2+2 | 2+2 | 2+2 | 3+3 | 3+3 |
| Host power (Kw) | 18.5 | 30 | 37 | 45 | 55 | 75 |
| Wave pressure power (Kw) | 1.5 | 2.25 | 3.75 | 3.75 | 5.5 | 5.5 |
| Hopper volume (L) | 760 | 1100 | 1500 | 1760 | 2030 | 2430 |
| Outline dimensions (L*W*H) (mm) | 1780 X 1290 X 1690 | 1780 X 1290 X 1690 | 2670 X 1760 X2090 | 2670X 1960X2090 | 2670 X2500X2090 | 2670 X2810X2140 |
| Equipment weight (Kg) | 1750 | 2950 | 3650 | 4250 | 5050 | 6300 |
| Model | 600 | 800 | 1000 | 1200 | 1400 |
| Inlet size (D*F) (mm) | 1210 X 1210 | 1420X 1500 | 1420 X1700 | 1420 X1900 | 1420 X2100 |
| Discharge height C(mm) | 480 | 560 | 560 | 560 | 560 |
| Cylinder stroke (mm) | 500 | 800 | 800 | 800 | 800 |
| Rotor diameter (mm) | 225 | 385 | 395 | 395 | 395 |
| Rotor length (mm) | 600 | 800 | 1000 | 1200 | 1400 |
| Spindle speed (rpm) | 80 | 80 | 80 | 80 | 80 |
| Screen aperture (mm) | 40 | 40 | 40 | 40 | 40 |
| Number of operating knives (PCS) | 23+4 | 35+4 | 45+4 | 55+4 | 70+4 |
| Fixed tool quantity (PCS) | 2+2 | 2+2 | 2+2 | 3+3 | 3+3 |
| Host power (Kw) | 18.5 | 37 | 45 | 55 | 75 |
| Wave pressure power (Kw) | 1.5 | 3.75 | 3.75 | 5.5 | 5.5 |
| Hopper volume (L) | 760 | 1500 | 1760 | 2030 | 2430 |
| Outline dimensions (L*W*H) (mm) | 1780 X 1290 X 1690 | 2670 X 1760 X2090 | 2670X 1960X2090 | 2670 X2500X2090 | 2670 X2810X2140 |
| Equipment weight (Kg) | 1750 | 3650 | 4250 | 5050 | 6300 |

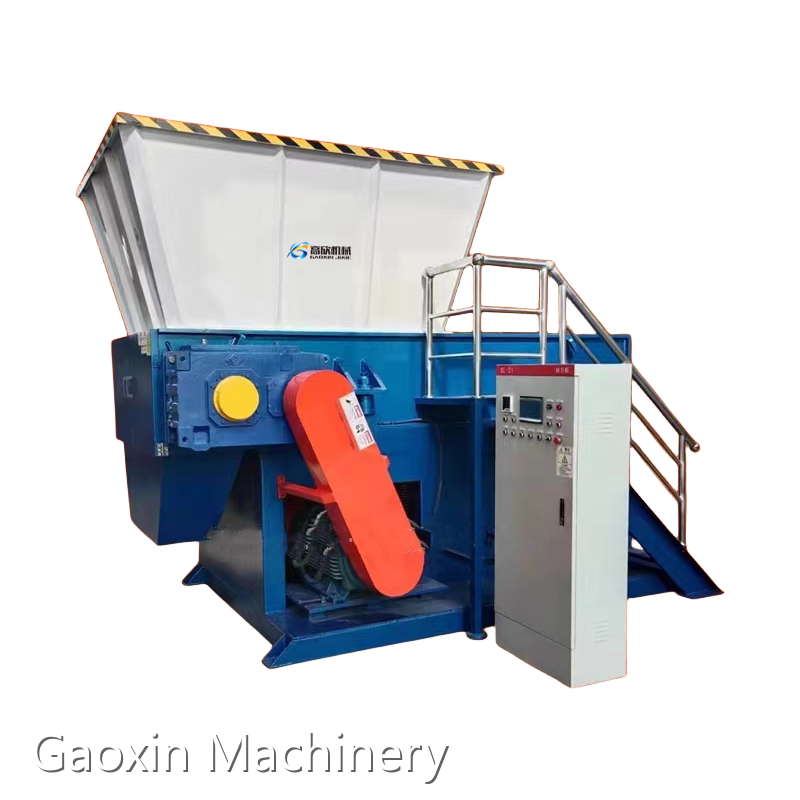

Single shaft shredder physical picture reference
