Quality Plastics Mixers Manufacturer for Rubber Industry
Company Advantages
· The production of Gaoxin Machinery plastics mixers is in compliance with the accepted international standards.
· The product performs its functions properly during the service life.
· Dongguan Gaoxin Machinery Co., Ltd. is willing to serve you with advanced and superb technology and super level.

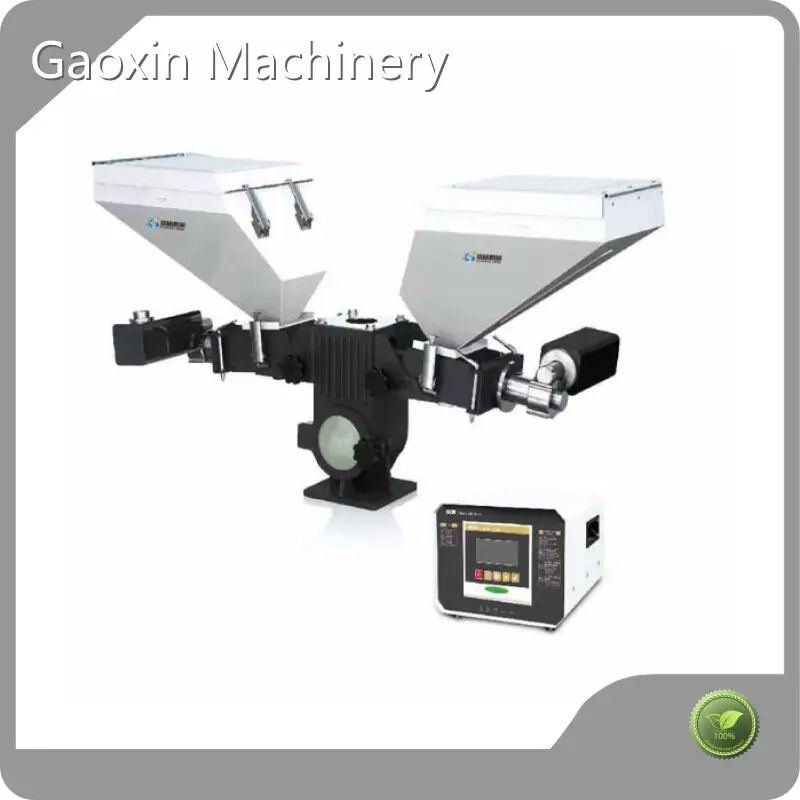

Application range of metering masterbatch mixer:
Specially used for injection molding machines, extruders, film blowing machines and other molding machines, it is an instrument that automatically mixes one main material with multiple masterbatches or additives in proportion.
Adopting PLC color touch screen controller, the metering masterbatch machine uses touch screen as the user operation interface, which is intuitive and convenient. This machine can be synchronized with the injection molding machine signal. There are many types of screw diameters, which can provide different outputs from 0.04 to 80 kg per hour
Can choose a variety of materials
Machine features:
1. PLC touch screen is used to control calculation, accurate measurement and output
2. The metering masterbatch machine is synchronized with the injection molding machine signal, with formula storage and reading functions, and can be called to start the machine
3. It has a metering function, automatically monitors the masterbatch or addition situation, and automatically adjusts and adapts when the raw material stacking density changes
4. The metering part can be removed from the base as a whole without leaking material. There are visual material windows on the base and the side of the hopper, which is easy to observe the raw materials
5. It can realize quantitative feeding, accurate measurement and stable transportation
6. Humanized design, simple operation, and stable machine performance
7. Modular assembly structure, screw and sleeve can be replaced or cleaned
8. The dryer weight is 200KG and needs to be equipped with a reinforced large base
9. Optional material level alarm, detect masterbatch blockage and alarm
10. Optional standard agitator, customer double mixing requirements
11. Machine maintenance: modular accessories, module switching and maintenance are simple
12. Flange size: can be customized according to the size required by your company
13. Applicable to extruders, injection molding machines and blown film modes, please note when placing an order
14. Foolproof installation and debugging. There is a dedicated engineering telephone to guide installation and debugging
15. The metering masterbatch machine is not applicable and can be returned
Technical Parameters
| Model | WSM-12 | WSM-16 | WSM-25 | ||
| Motor Power(KW) | 0.3 | 0.3 | 0.3 | ||
| rotary speed(rp.m.) | 1.8-300 | 1.8-300 | 1.8-300 | ||
| Mixer Power(KW) | 0.09 | 0.09 | 0.09 | ||
| Screw Dia.(mm) | 12 | 16 | 25 | ||
| Output Capacity(kg/hr) | 0.05-20 | 0.5-45 | 5-60 | ||
| Storage Capacity(L) | 13 | 13 | 13 | ||
| Dimensions HxWxD(cm) | 450x560x310 | 450x560x310 | 450x560x310 | ||
| (KG) | 24 | 24 | 24 | ||
Metered masterbatch mixing
Company Features
· Gaoxin Machinery brand is famous for its first-rate plastics mixers and superlative service.
· Dongguan Gaoxin Machinery Co., Ltd. has updated technology to improve plastics mixers quality and process technology. Dongguan Gaoxin Machinery Co., Ltd. establishes complete R&D system integrated with compound optimization, formulation processing and production technology for plastics mixers. With innovation of the introduced technology, the quality of plastics mixers is greatly improved.
· Only by achieving efficiency can Gaoxin Machinery win the future. Inquire online!
Product Details
Next, Gaoxin Machinery will present you with the specific details of plastics mixers.
Application of the Product
Gaoxin Machinery's plastics mixers is widely used in various industries and fields.
We are always aware of new trends and developments in the market, so we can provide our customers with the industry-leading one-stop solutions.
Enterprise Advantages
Gaoxin Machinery's professional and experienced team provides a strong guarantee for rapid development.
Our company has received popular recognition from customers with sincere service attitude, pragmatic serving style and innovative service methods. Therefore, we have a good reputation in the industry.
To provide high-quality products for the society and customers, we will strive to build a good corporate culture, practice our strategy and fulfill our social responsibilities with a enterprising and harmonious attitude.
Gaoxin Machinery is now an excellent enterprise with rich production experience and mature processing technology, after years of flourishing.
Plastic machinery and general machinery,Plastic Crusher,Mixer Dryer Machine,Plastic Recycling Machine,Industrial Chiller's sales network covers all major domestic cities and other countries and regions, such as America, Australia, and Southeast Asia.
