Product details of the plastic recycling equipment
Product Information
The whole production process of Gaoxin Machinery plastic recycling equipment is guided and supervised by experienced professionals. Before delivering, we closely inspect the quality of the product. Gaoxin Machinery has perfect after-sales service network to guarantee your perfect purchasing experience.

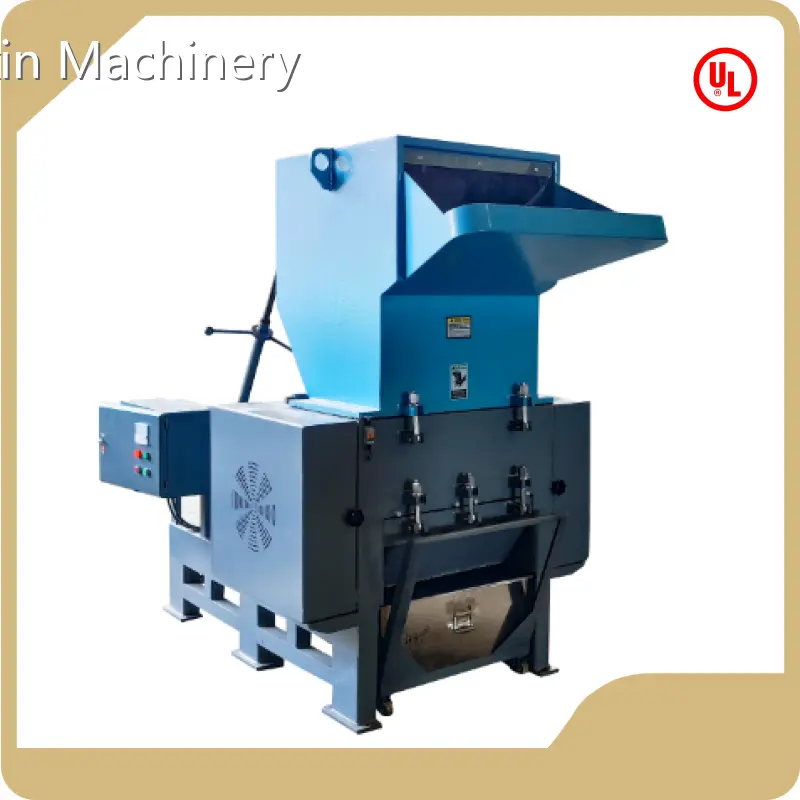

SILENT SHREDDER
Heavy-duty crusher:
1.The machine body is thickened and heavier, and the special cutter with super hardness can crush the materials with strong force without blocking the machine or jamming the materials.
2.Specialized for: hard and thick rubber and plastic products, blocks, PC materials, fiber-reinforced materials, nylon materials, shoe lasts and other difficult-to-crush materials. The powder can be directly crushed with high efficiency.
Product Features
Product Features
High-strength tool
1. The spindle tool holder and tool body are made of 45# steel quenching and tempering treatment;
2. The blade material is CR12MOV, with a hardness of 57-59 degrees;
3. It is installed with hexagon socket screw countersunk holes, and the screws will not be worn due to long-term use.
Application Range
Multifunctional crusher, can be used for both soft and hard materials
Shoe last material
Rubber head material
Injection molding nozzle material
Thick rubber block head
Super hard fiber material
Pallet Tray
Use with automation
It can be matched with fan storage barrel discharge, conveyor belt feeding, and screw machine automatic feeding and discharging system, saving time, labor and manpower, and more efficient production capacity
Warm reminder: The above are the types of knives that can be equipped with the standard powerful crusher.
Please choose the correct one according to the material requirements!
If you are not sure about the knife type, please contact customer service and let us use our expertise to select the type for you!
Guaranteed silent crusher brings you: the most practical! The most energy efficient! Maximize efficiency!
Schematic Diagram
| Model | unit | GXGY360 | GXGY420 | GXGY480 | GXGY660 | GXGY720 | GXGY1050 | GXGY1280 |
| Crushing chamber | (mm) | 360*260 | 420*280 | 480*330 | 660*350 | 720*500 | 1050*800 | 1280*800 |
| Crushing capacity | (kg/h) | 100～150 | 150～200 | 200～250 | 300～350 | 350～450 | 600～800 | 800～1000 |
| Blade number | PCS | 2 | 2 | 2 | 4 | 4 | 4 | 4 |
| Blade number | PCS | 18 | 21 | 24 | 27 | 30 | 45 | 45 |
| Power | Kw | 7.5 | 11 | 15 | 22 | 37.5 | 55 | 75 |
| HP | 10 | 15 | 20 | 30 | 50 | 75 | 100 | |
| Outine dimensions | (L×W×H MM) | 1060*830*1440 | 1270*900*1600 | 1370*960*1790 | 1570*1260*200 | 1870*1390*2480 | 2360*1920*3700 | 2150*2060*3700 |
| Net weight | (kg) | 540 | 795 | 1040 | 1700 | 2750 | 5400 | 6250 |
