Plastic Colour Mixer - for Plastic Industry - Gaoxin Machinery
Company Advantages
· Dongguan Gaoxin Machinery Co., Ltd. has managed to add a strong design attitude and a personality to plastic colour mixer product development.
· This product is the first choice of our customers, with long service life and practicality.
· By stressing the value of quality management,the quality of plastic colour mixer are more assured.

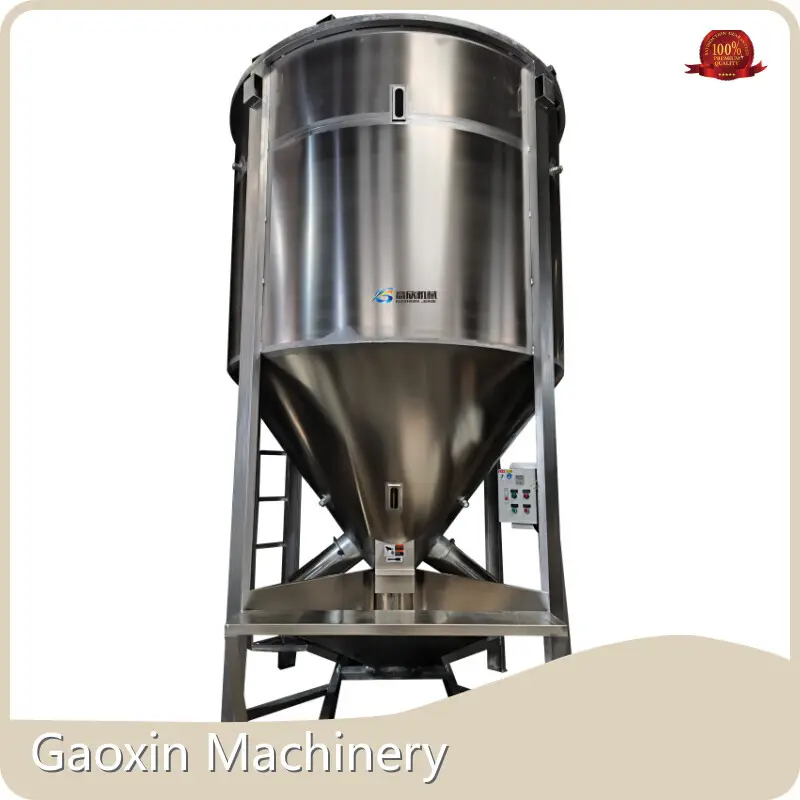

Vertical mixer performance features:
Specialized in mixing and mixing various granular raw materials and color masterbatch, this machine is a large-scale equipment for plastic mixing.
1. The barrel and spiral blades are evenly made of stainless steel to prevent corrosion and are easy to clean.
2. Low power consumption, large mixing capacity, fast speed, and even mixing can be achieved in 3-5 minutes.
3. The propeller blades are processed as a whole after welding, with high concentricity, smooth operation and low noise.
4. The bottom frame of the frame is designed with a grease filling device to make the bearings durable.
5. The rack is designed and manufactured in a frame style, which is sturdy and durable.
6. Sealed mixing ensures uniform mixing and no leakage.
7. Upright operation, small footprint and space saving.
8. Check the attached optional equipment:
A. Equipped with electric heat drying device. B. Equipped with automatic feeding device of spiral feeding machine
Two regular models
Suitable for mixing various plastic particles, broken materials, flake materials, new and old materials and materials of different colors.
Mixing and drying are synchronized. During the mixing process, the material maintains a continuous flow state, the hot air penetrates evenly, and the temperature can be adjusted from 50 to 200°C. Materials are mainly dried and drained through electric hot air to achieve full drying and energy saving effects.
Application scope
Suitable for: various plastic pellets, plastic flakes, broken materials,
new and old materials and adding color masterbatch for large batch mixing, drying and other purposes;
Detailed description
Optional models + automated matching
Automated use in injection molding, blow molding, granulation, food, and chemical industries
Vertical mixer technical parameters
Vertical mixer technical parameters:
| Model | power | （KG） | （㎡） | （V） | （r/min） | (φ*L) | |
| KW | HP | Caoacuty | Volume | VOltage | Tachometer | The sixe of the barrel body（MM） | |
| ZHQF-300 | 2.2 | 3 | 300 | 0.6 | 380V/50HZ | 350 | φ960*2100 |
| ZHQF-500 | 3 | 4 | 500 | 1 | 380V/50HZ | 350 | φ1300*2500 |
| ZHQF-1000 | 4 | 5 | 1000 | 2 | 380V/50HZ | 350 | φ1500*2800 |
| ZHQF-2000 | 5.5 | 7.5 | 2000 | 4 | 380V/50HZ | 350 | φ1900*3200 |
| ZHQF-3000 | 7.5 | 10 | 3000 | 6 | 380V/50HZ | 350 | φ2100*3500 |
| ZHQF-5000 | 7.5 | 10 | 5000 | 10 | 380V/50HZ | 350 | φ2250*4600 |
| ZHQF-8000 | 7.5 | 10 | 8000 | 16 | 380V/50HZ | 350 | φ2250*5900 |
| ZHQF-10000 | 11 | 15 | 10000 | 20 | 380V/50HZ | 350 | φ2250*6500 |
| ZHQF-12000 | 11 | 15 | 12000 | 24 | 380V/50HZ | 350 | φ2250*8000 |
Remarks: Different materials can be used according to customer requirements. Since the proportion of logistics in various industries is different, the above specifications are conventional models. For logistics with a large density, the motor power and heating power need to be increased and configured separately.
Technical parameters of vertical mixer (heated type)
| Model | Power | （KG） | （㎡） | （V） | （r/min） | (φ*L) | |
| Motor | Heating | Caoacuty | Volume | VOltage | Tachometer | The sixe of the barrel body（MM） | |
| ZHQF-300 | 2.2 KW | 12 KW | 300 | 0.6 | 380V/50HZ | 300 | φ960*2100 |
| ZHQF-500 | 3 KW | 15KW | 500 | 1 | 380V/50HZ | 300 | φ1300*2500 |
| ZHQF-1000 | 4 KW | 18 KW | 1000 | 2 | 380V/50HZ | 300 | φ1500*2800 |
| ZHQF-2000 | 5.5 KW | 30KW | 2000 | 4 | 380V/50HZ | 300 | φ1900*3200 |
| ZHQF-3000 | 7.5 KW | 30 KW | 3000 | 6 | 380V/50HZ | 300 | φ2100*3600 |
| ZHQF-5000 | 7.5 KW | 30 KW | 5000 | 10 | 380V/50HZ | 300 | φ2250*4600 |
| ZHQF-8000 | 7.5 | 30 KW | 8000 | 16 | 380V/50HZ | 350 | φ2250*5900 |
| ZHQF-10000 | 11 | 45KW | 10000 | 20 | 380V/50HZ | 350 | φ2250*6500 |
| ZHQF-12000 | 11 | 45JKW | 12000 | 24 | 380V/50HZ | 350 | φ2250*8000 |
Remarks: Different materials can be used according to customer requirements. Since the proportion of logistics in various industries is different, the above specifications are conventional models. For logistics with a large density, the motor power and heating power need to be increased and configured separately.
Packaging & Shipping
Company Features
· Dongguan Gaoxin Machinery Co., Ltd. is one of the world's most famous manufacturers of plastic colour mixer.
· Dongguan Gaoxin Machinery Co., Ltd. has technical personnel who have junior degree.
· We have a clear and confident vision for navigating the future and have met the challenges of innovation many times. So that we can go on providing the best products and services for our customers. Please contact us!
Product Details
We pursue perfection in every detail of the plastic colour mixer we produce. And our products represent the excellent quality.
Enterprise Advantages
Gaoxin Machinery advocates developing together with employees. We carry out a comprehensive training program and have a group of outstanding talents. They have strong professional strength and innovative ability.
Gaoxin Machinery answers all kinds of customer's questions with patience and provides valuable services, so that customers can feel respected and caring.
Our company has always followed the 'quality first, customer first' as our core values. And our enterprise spirit is 'dare to challenge, pursue for excellence'. We are dedicated to providing our clients with quality products and personalized services.
After years of development, Gaoxin Machinery becomes the leader in the industry.
Since the inception, our company has been constantly developing and innovating in the pace of time. At present, our products are sold well in the domestic market, and they occupy many foreign markets with a wide range of sales.
