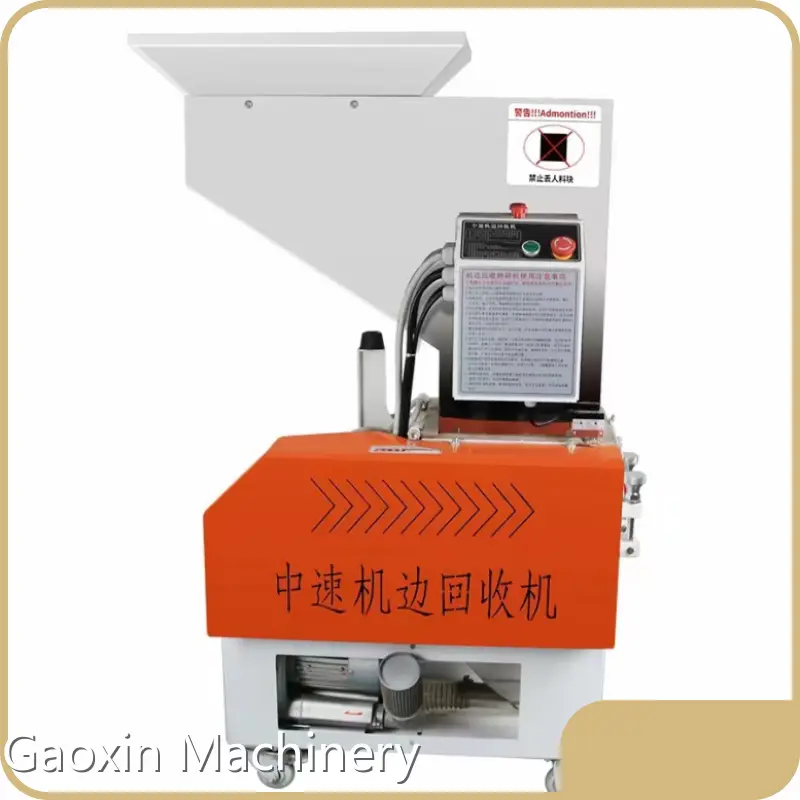

Hot Sale Pvc Pipe Crusher Machine for Plastic Industry 1
Hot Sale Pvc Pipe Crusher Machine for Plastic Industry 2
Hot Sale Pvc Pipe Crusher Machine for Plastic Industry 1
Hot Sale Pvc Pipe Crusher Machine for Plastic Industry 2

Hot Sale Pvc Pipe Crusher Machine for Plastic Industry

Inquiry
Send your inquiry

Product details of the pvc pipe crusher machine


Quick Detail

Gaoxin Machinery pvc pipe crusher machine is manufactured by the precision machining equipment. With the implementation of the improved quality inspection system, the product quality is guaranteed. Dongguan Gaoxin Machinery Co., Ltd. strives to become a green and efficient pvc pipe crusher machine company.


Product Introduction

Gaoxin Machinery's pvc pipe crusher machine has better quality than other products in the industry, which is specifically shown in the following aspects.

Medium speed side grinder

Machine usage:

Suitable for crushing and recycling PC, nylon, ABS and other defective spout materials.

The machine-side crusher is used with injection molding machines and other hosts. It is equipped with a recycling system. The material at the nozzle is immediately recycled in 20 seconds. The crushed materials are automatically sent back to the production equipment. No manual labor is required, and the recycling is fast and pollution-free.

Machine principle:

The nozzle material that needs to be crushed falls into the hopper after being crushed by the machine-side crusher, and then sent to the recycler by the fan. The recycler isolates the powder material and recycles it into the dust bag, while the granular material is the same as in the dryer. According to the required ratio of old and new materials, the new materials are mixed and flowed into the main machine through the manual toilet valve at the bottom of the recycler.

Click to view
undefined

SKD-11 claw knife

The material is hard and durable, the crushed particles are uniform, and the tool is easy to change.

Low speed--low dust--low noise---environmental protection automation

undefined

Crushing effect

PC, PP, PVC, POM, ABS, nylon and other hard nozzle defective materials can be easily crushed

11
Before breaking

Before crushing: Various nozzle materials and defective waste materials

11
Before breaking

After crushing: The particles are uniform and free of dust

Automatic recycling system matching

Fully automatic recycling in 20 seconds

New materials and crushed materials are fully automatically mixed and recycled in proportion.

No discoloration, no pollution, no waste

undefined

Fan + cyclone recovery system

Various recycling combinations

222C8FD2-8B58-445e-937B-7D392909AA36
Fan + recovery system
E1A3285D-0ACB-4fcf-A468-C00BFB6493C9
Two material ratio valve
E5EF20E8-D649-49d9-B930-2AA8043B032C
Square storage hopper

MACHINE SIDE CRUSHER

Automatic online crushing and recycling of defective plastic spouts

111
111
222
222
333
333

Slow silent crusher

MEDIUM SPEED CRUSHER

LOW SPEED CRUSHER

Pineapple knife type, gnawing crushing, uniform particles, no dust, no noise

Grinder blade chopping, screen feeding,low dust, low noise

Blade shredding, screenfeeding, low dust, low noise

TECHNICAL PARAMETERS OF MED-

IUM SPEED M ACHINE

Technical Parameters

Models ZHZS-180 ZHZS-240 ZHZS-300(A) ZHZS-300(B) ZHZS-360 ZHZS-420 ZHZS-420S ZHZS-510S ZHZS-610
Motor brand HANZEL/Teco HANZEL/Teco HANZEL/Teco Teco HANZEL/Teco HANZEL/Teco HANZEL/Teco HANZEL/Teco HANZEL/Teco
Motor Power 1.1KW 1.5KW 1.5KW 2.2KW 2.2KW 2.2KW 3KW 4.0KW 5.5KW
Thermal relay Schneider Schneider Schneider Teco Schneider Schneider Schneider Schneider Schneider
Switch Yijia Yijia Yijia Teco Yijia Yijia Yijia Yijia Yijia
Blade material SKD-11 SKD-11 SKD-11 9chrome steel SKD-11 SKD-11 SKD-11 SKD-11 SKD-11
Heattreatment 58℃ 58℃ 58℃ 58℃ 58℃ 58℃ 58℃ 58℃ 58℃
Fixed knife 2pieces 2pieces 2pieces 2pieces 2pieces 2pieces 2pieces 2pieces 4pieces
Rotary knife 18pieces 24pieces 30pieces 30pieces 36pieces 42pieces 42pieces 51pieces 60pieces
Spinning speed 280rpm 280rpm 280rpm 280rpm 280rpm 280rpm 280rpm 280rpm 280rpm
Screena perture (mm) 6mm 6mm 6mm 6mm 6mm 6mm 6mm 6mm 6mm
Crushed particles 5mm-6mm 5mm-6mm 5mm-6mm 5mm-6mm 5mm-6mm 5mm-6mm 5mm-6mm 5mm-6mm 5mm-6mm
Grinding  chamber size (mm) 180*280 240*280 300*280 300*280 360*280 400*280 420*400 510*400 600*400
Inlet size (mm) 500*320*56 550*380*58 550*440*58 550*440*58 630*500*58 640*560*58 640*560*58 650*700*80 780*760*120
Body size (L*W*H) 800*450*1090mm 900*500*1370mm 900*500*1420mm 900*500*1420mm 1050*600*1500mm 1050*650*1500mm 1050*650*1500mm 1300*800*1570 1350*980*1750
Machine weight 167kg 189kg 208kg 208kg 236kg 251kg 350kg 420Kg 450kg
