Hopper Dryer for Injection Molding Machine Factory Direct Supply for Plastic Industry
Company Advantages
· The production of Gaoxin Machinery hopper dryer for injection molding machine adopts the highest standard for the selection of raw materials.
· Gaoxin Machinery is known as the top manufacturer in producing the high quality product.
· The product is winning greater market share and can be suitable for wider application in the future.
Box dryer uses:
● Widely suitable for drying any plastic materials, and can dry materials of different materials and colors at the same time.
● Especially suitable for drying materials that require high temperature accuracy, low dosage, and various colors.
It is also suitable for use in preheating or drying processes in food, pharmaceutical, electronic plating and other industries.
Working principle of box dryer;
● Put the materials to be dried into the movable material tray. When the power is turned on, the powerful wind wheel will turn on;
● Start up and force the air entering from the air inlet to blow towards the electric heating tube. The air will be heated by the electric heating tube, pass through the perforated partition wall, and blow evenly towards the materials. The air carrying moisture will be drawn out of the oven by the dehumidification fan at the top. outside.
Repeating this cycle will achieve the effect of moisture removal and drying.
Applicable industries - widely used

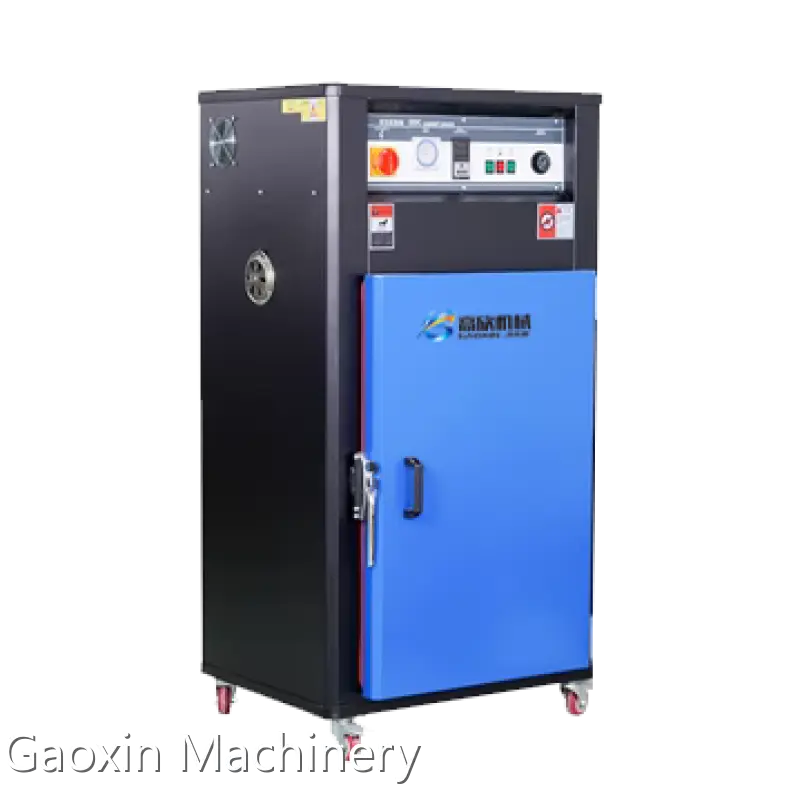

Box dryer, industrial drying oven
Can dry materials of different materials and colors at the same time
Preheating or drying treatment for various plastics, food, pharmaceuticals, electronic plating and other industries
Multiple models available
5-40 layers can be ordered, adjustable within 250℃
Box dryer structure diagram
Technical parameters of box dryer
| Model | Power | Capacity（KG） | Dimensions（L*W*H/（MM）） | Internal Dimensions | Weight | Temperature control range | |
| Motor | Electro-thermal | （L*W*H/（MM）） | (KG) | (℃) | |||
| Model | Motor | Electrothermal | Capacity | Qutlie dimesions | Iteral dimesios | The weight of the body | Tempetature range |
| XG-5th floor | 0.37 KW | 4.5KW | 45KG | 810*760*1250 | 600*560*600 | 115 | 250℃ |
| XG-9th floor | 0.37 KW | 6KW | 90KG | 810*760*1500 | 600*560*900 | 150 | 250℃ |
| GX-20th floor | 0.75 KW | 12 KW | 180 KG | 1350*780*1800 | 1100*620*1100 | 300 | 200℃ |
