Product details of the plastic recycling equipment


Quick Detail

Thanks to the low cost of raw materials and the high efficiency of streamlined production, plastic recycling equipment products have the advantage of high gross profit margin. The product has passed through many quality tests and third-party certifications. Dongguan Gaoxin Machinery Co., Ltd. has professional R&D and production capabilities.


Product Information

Our plastic recycling equipment has a certain share in the market because of the following characteristics.

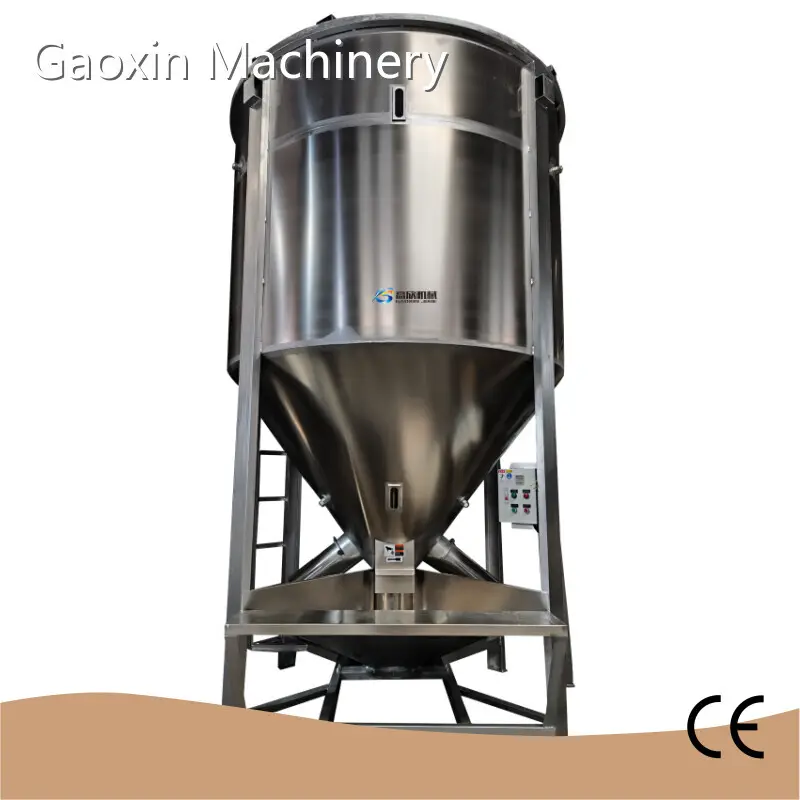

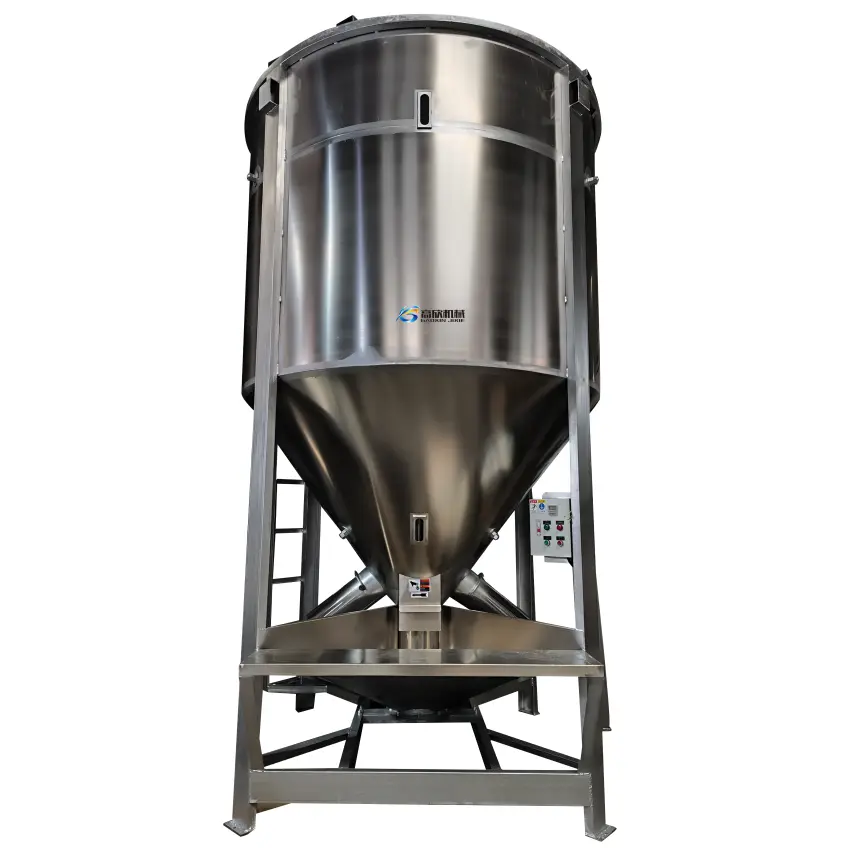

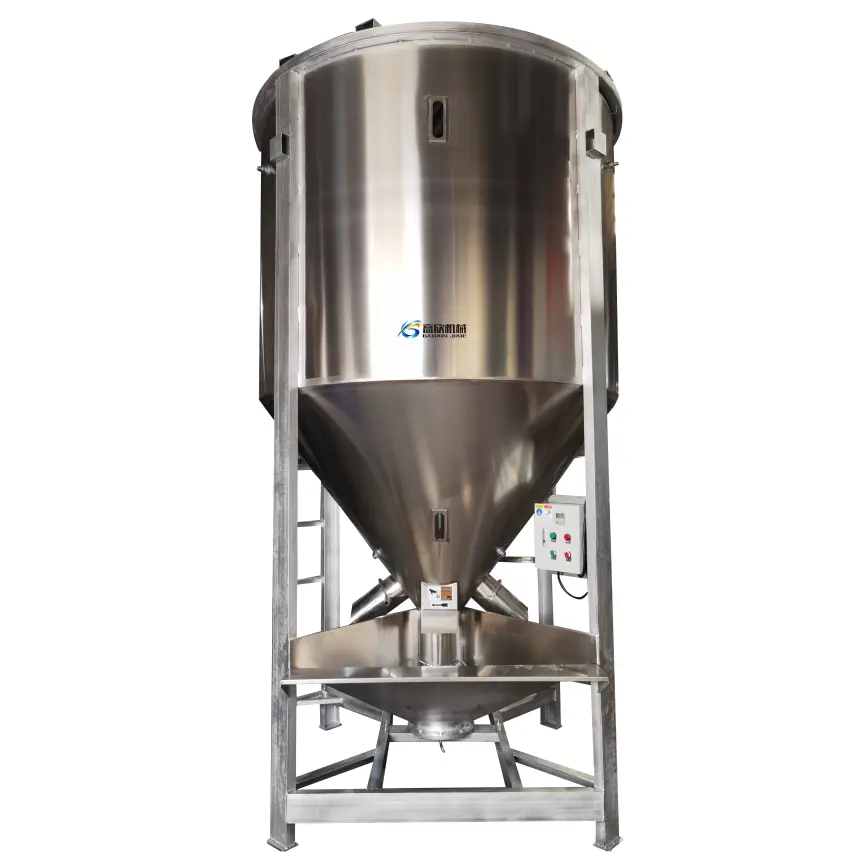

Vertical mixer performance features:

Specialized in mixing and mixing various granular raw materials and color masterbatch, this machine is a large-scale equipment for plastic mixing.

1. The barrel and spiral blades are evenly made of stainless steel to prevent corrosion and are easy to clean.

2. Low power consumption, large mixing capacity, fast speed, and even mixing can be achieved in 3-5 minutes.

3. The propeller blades are processed as a whole after welding, with high concentricity, smooth operation and low noise.

4. The bottom frame of the frame is designed with a grease filling device to make the bearings durable.

5. The rack is designed and manufactured in a frame style, which is sturdy and durable.

6. Sealed mixing ensures uniform mixing and no leakage.

7. Upright operation, small footprint and space saving.

8. Check the attached optional equipment:

A. Equipped with electric heat drying device. B. Equipped with automatic feeding device of spiral feeding machine

Click to view
Plastic mixer

Two regular models

5 tons plastic mixer
Mixing type
Suitable for mixing various plastic particles, broken materials, flake materials, new and old materials and materials of different colors.
111111(1) (2)
Stirring/heating drying type
Mixing and drying are synchronized. During the mixing process, the material maintains a continuous flow state, the hot air penetrates evenly, and the temperature can be adjusted from 50 to 200°C. Materials are mainly dried and drained through electric hot air to achieve full drying and energy saving effects.

Suitable for mixing various plastic particles, broken materials, flake materials, new and old materials and materials of different colors.

Mixing and drying are synchronized. During the mixing process, the material maintains a continuous flow state, the hot air penetrates evenly, and the temperature can be adjusted from 50 to 200°C. Materials are mainly dried and drained through electric hot air to achieve full drying and energy saving effects.

Application scope

Suitable for: various plastic pellets, plastic flakes, broken materials,

new and old materials and adding color masterbatch for large batch mixing, drying and other purposes;

11
Plastic color
2 (18)
Plastic materials
3 (13)
Crushed material
4 (10)
Bottle flake recycling material
5 (9)
Bottle flake recycling material
6 (8)
Various feeds

Detailed description

111111 (3)
Multifunctional electric control box
Schneider Electric, With automatic timing, Overload protection function, Easy and convenient to operate
222222 (2)
Discharge port
Blade discharge design, Blanking is smooth and fast Various valves available
3333333 (2)
Motor
All-copper core high-quality motor, Strong power, energy saving and low consumption, Durable
444 (2)
Inlet
Enlarge the feed port Fast feedingInstall protective fenceEnsure safe operation

Optional models + automated matching

Automated use in injection molding, blow molding, granulation, food, and chemical industries

图片1 (34)
Equipped with screw machine for automatic discharging
图片2 (17)
Ton bag feeding chute + ton bag discharging rack
3 (14)
Forced feeding model
4 (11)
Air-fed mixing homogenizing barrel
5 (10)
Negative pressure drying and deodorizing system
6 (9)
Screening + air delivery + storage all-in-one machine
7 (4)
Pelleting + screening + air transport storage

Vertical mixer technical parameters

Vertical mixer technical parameters:

Model power (KG) (㎡) (V) (r/min) (φ*L)
KW HP Caoacuty Volume VOltage Tachometer The sixe of the barrel body(MM)
ZHQF-300 2.2 3 300 0.6 380V/50HZ 350 φ960*2100
ZHQF-500 3 4 500 1 380V/50HZ 350 φ1300*2500
ZHQF-1000 4 5 1000 2 380V/50HZ 350 φ1500*2800
ZHQF-2000 5.5 7.5 2000 4 380V/50HZ 350 φ1900*3200
ZHQF-3000 7.5 10 3000 6 380V/50HZ 350 φ2100*3500
ZHQF-5000 7.5 10 5000 10 380V/50HZ 350 φ2250*4600
ZHQF-8000 7.5 10 8000 16 380V/50HZ 350 φ2250*5900
ZHQF-10000 11 15 10000 20 380V/50HZ 350 φ2250*6500
ZHQF-12000 11 15 12000 24 380V/50HZ 350 φ2250*8000

Remarks: Different materials can be used according to customer requirements. Since the proportion of logistics in various industries is different, the above specifications are conventional models. For logistics with a large density, the motor power and heating power need to be increased and configured separately.

Technical parameters of vertical mixer (heated type)

Model Power (KG) (㎡) (V) (r/min) (φ*L)
Motor Heating Caoacuty Volume VOltage Tachometer The sixe of the barrel body(MM)
ZHQF-300 2.2 KW 12 KW 300 0.6 380V/50HZ 300 φ960*2100
ZHQF-500 3 KW 15KW 500 1 380V/50HZ 300 φ1300*2500
ZHQF-1000 4 KW 18 KW 1000 2 380V/50HZ 300 φ1500*2800
ZHQF-2000 5.5 KW 30KW 2000 4 380V/50HZ 300 φ1900*3200
ZHQF-3000 7.5 KW 30 KW 3000 6 380V/50HZ 300 φ2100*3600
ZHQF-5000 7.5 KW 30 KW 5000 10 380V/50HZ 300 φ2250*4600
ZHQF-8000 7.5 30 KW 8000 16 380V/50HZ 350 φ2250*5900
ZHQF-10000 11 45KW 10000 20 380V/50HZ 350 φ2250*6500
ZHQF-12000 11 45JKW 12000 24 380V/50HZ 350 φ2250*8000

Remarks: Different materials can be used according to customer requirements. Since the proportion of logistics in various industries is different, the above specifications are conventional models. For logistics with a large density, the motor power and heating power need to be increased and configured separately.
