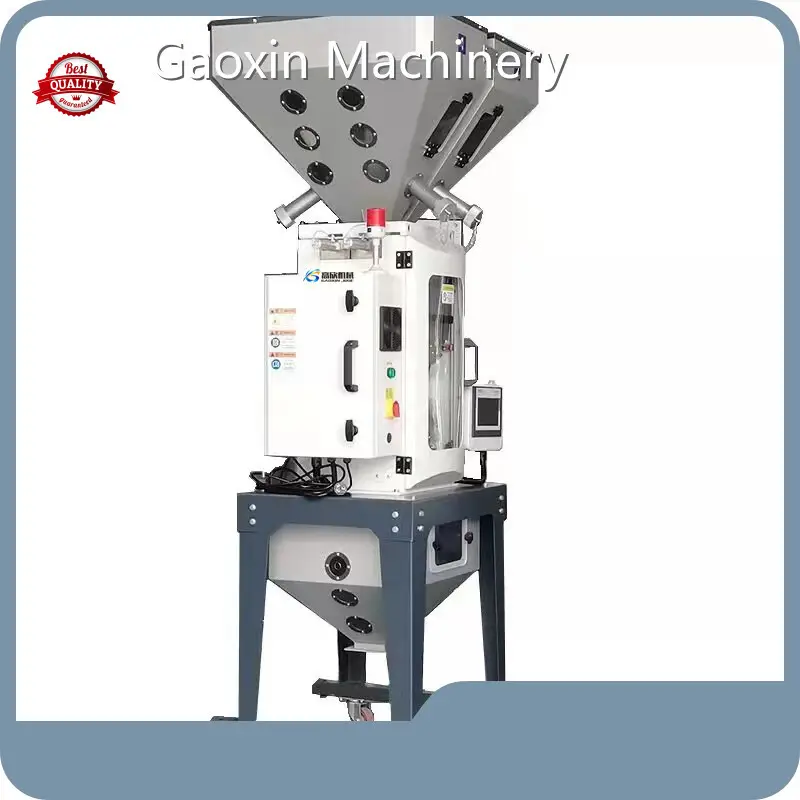

High End Plastic Pellet Mixer for Plastic Industry
Product details of the plastic pellet mixer
Product Information
Our plastic pellet mixer are as superb quality as well as the leading brand products. Owning to its superior quality and reasonable price,our plastic pellet mixer has met with warm reception and quick sale in the market. Dongguan Gaoxin Machinery Co., Ltd. has made unremitting efforts to provide plastic pellet mixer for one-stop shopping centers around the world.
Weighing type mixer purpose:
Weighing-mixing-proportioning ingredients
The machine is suitable for plastic extrusion, extrusion or hollow molding process, the need for a variety of raw materials, according to the weight ratio accurate mix. Microcomputer control system, and with automatic feeding function, high accuracy, easy to operate.
Weighing mixer can add multiple types of materials
Principle of weighing mixer
Product features:
1. Single-chip microprocessor design, more powerful, smaller and stronger anti-interference ability;
2. EEPROM memory is used, and the setting data will not be lost after the power is cut off, and no battery is required;
3. The human-machine interface status display touch keyboard data input is used, which is more convenient to operate and can store a large amount of formula data (500 groups);
4. High-speed and high-precision AD grabs weight faster and more stably;
5. All borings are evenly mixed after gravity measurement, and the accuracy can be strictly controlled.
6. Check the weight data and the selected raw materials to ensure the precision and accuracy of the mixing;
7. It can be directly installed on the molding equipment, but the adapter base should be purchased;
8. When the machine is used for ground installation, it is necessary to select a combination of a start-up cut-off valve, a tripod storage bucket and a suction box.
Technical Parameters
| Models | GXB-50 | GXB-100 | GXB-200 | GXB-400 | GXB-600 |
| Number of groups | 4 | 4 | 4 | 4 | 4 |
| Mixing capacity(kg/hr) | 50 | 100 | 200 | 400 | 600 |
| Batch weight(kg) | 1 | 3 | 3.5 | 8 | 10 |
| Main material mixing range(%) | 5~100 | 5~100 | 5~100 | 5~100 | 5~100 |
| Additive mixture range (%) | 0.5~10 | 0.5~10 | 0.5~10 | 0.5~10 | 0.5~10 |
| Main Hopper volume (L) | 18 | 25 | 32 | 45 | 70 |
| Volume of additive hopper (L) | 5 | 8 | 12 | 15 | 18 |
| Volume of mixing barrel (L) | 8 | 10 | 10 | 18 | 25 |
| Power supply specifications(V/Hz) | 1Φ | 1Φ | 1Φ | 3Φ | 3Φ |
| 230/50 | 230/50 | 230/50 | 400/50 | 400/50 | 400/50 |
| Total power (kw) | 0.12 | 0.12 | 0.25 | 0.55 | 0.55 |
| Compressed air(kgf/cm2) | 6~8 | 6~8 | 6~8 | 6~8 | 6~8 |
| Noise(dB) | <75 | <75 | <75 | <75 | <75 |
| H(mm) | 1500 | 1725 | 1745 | 1905 | 1905 |
| W(mm) | 700 | 925 | 825 | 940 | 940 |
| D(mm) | 640 | 700 | 750 | 910 | 910 |
| Base(mm)(HxWxDxBxAxC) | 200*375*275* | 200*375*275* | 280*535*415* | 280*535*415* | 280*535*415* |
| 130*130-Φ100 | 150*150-Φ100 | 150*150-Φ100 | 150*150-Φ100 | 150*150-Φ100 | 150*150-Φ100 |
| Move the tripod(mm)(H1xH2xWxD) | 600*675*540 | 660*675*560 | 660*675*560 | 800*850*780*610 | 800*850*780*610 |
| weight(kg)Direct mounting type | 90 | 90 | 130 | 140 | 180 |
| weight(kg) Ground mounting type | 110 | 110 | 155 | 165 | 230 |
A corner of the workshop
