Product details of the pvc pipe crusher machine


Quick Overview

Gaoxin Machinery pvc pipe crusher machine is designed in accordance with international standards, using high grade raw material. The product is outstanding in respects of performance, durability, and usability. Dongguan Gaoxin Machinery Co., Ltd. has skilled artificial production lines, experienced high-quality technical backbones and management talents.


Product Information

Compared with its peer products, pvc pipe crusher machine produced by Gaoxin Machinery has the following advantages.

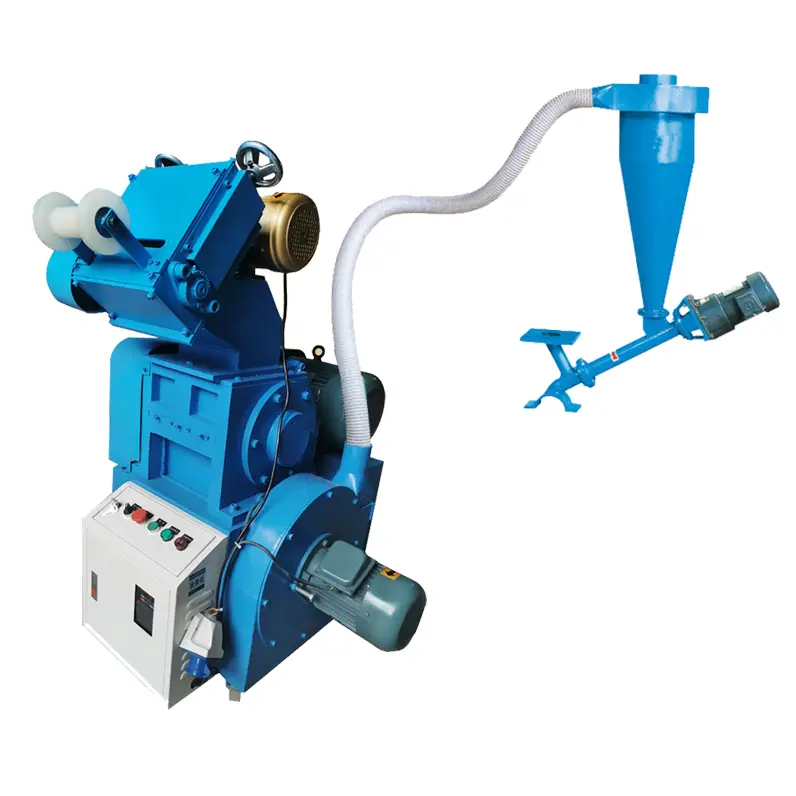

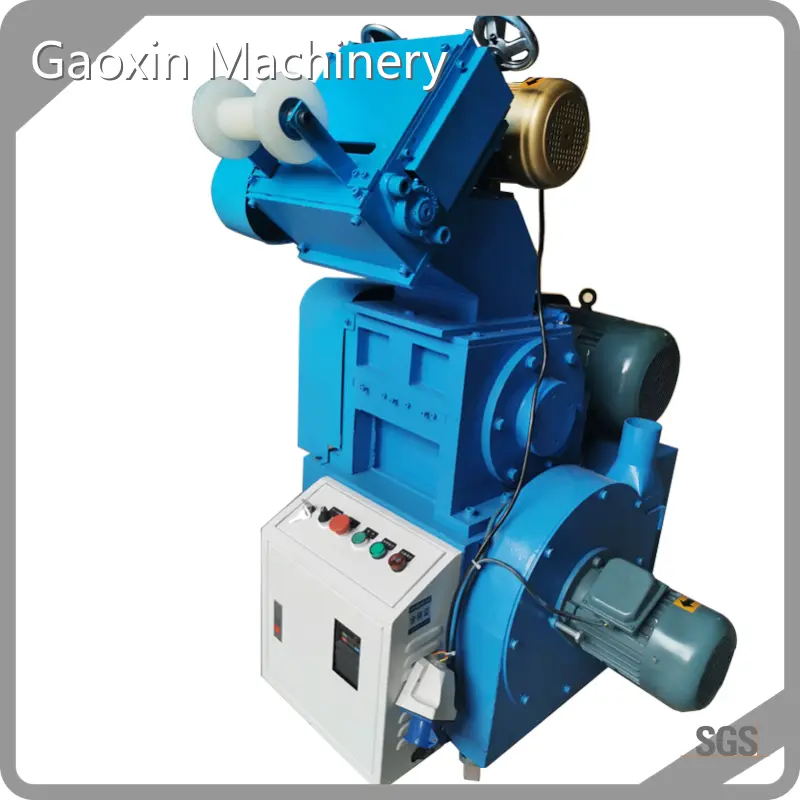

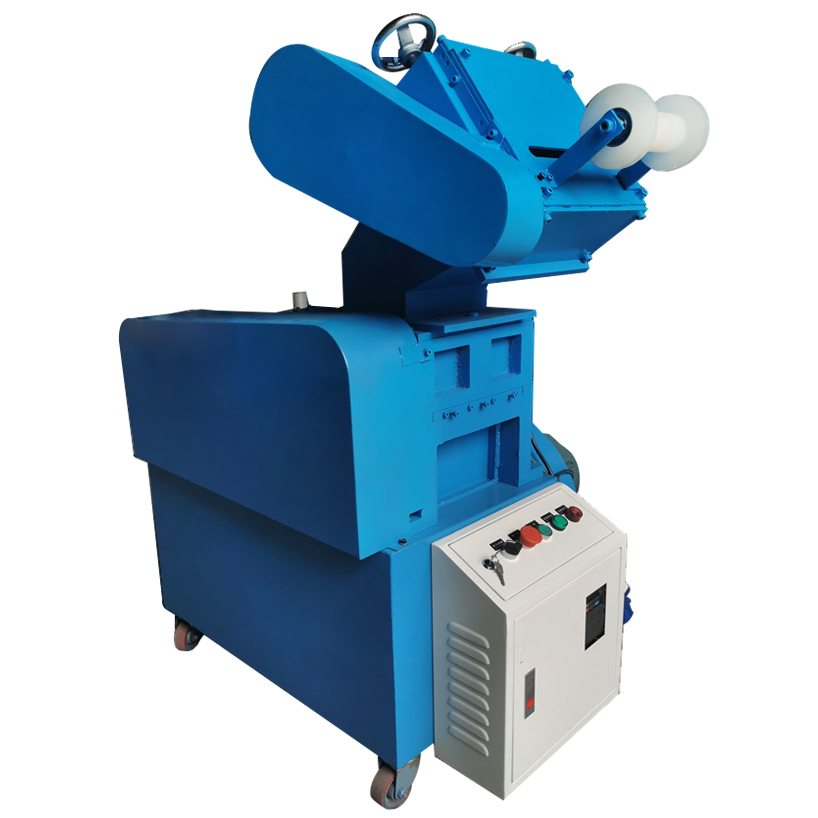

Edge material online crusher

Used for online crushing and recycling of machine edges in extrusion, film blowing, and casting equipment. The long edge materials can be automatically pulled into crushing and recycled automatically.

Sheet/film materials are automatically pulled into and crushed

The debris is forced into the main screw

Automatic clamping when sheet/film material thickness changes

The pull-in speed is adjustable and synchronized with the host

Click to view
undefined

Machine style and performance

It is suitable for extracting or suction-type recovery and crushing of various soft and hard edges cut during the production of extruders such as casting machines, calenders, sheet machines, and plate machines.

Then it is transported to the cyclone separator through the pipeline through the fan, and then escorted by the feeding screw into the screw inlet of the extruder and automatically mixed with new materials to achieve the effect of automatic recycling.

11
Type A: Air suction type

Type A: Air suction typeSuitable for thin and light membrane edge materials

11
Type B:Pressure wheel typs

Type B:Pressure wheel typsSuitable for wide and thick films or sheets

Tool Type

A variety of cutting tools, selected according to material requirements, more efficient and faster

undefined
7 (2)
Claw knife type
Narrow blade, strong dispersion force, and large shearing force Applicable to: thick and hard material blocks/heads, etc.
8 (2)
Blade type
Universal blade type, rapid crushing and high uniformity of material particles. Applicable to: nozzles/defective products/sheets/sprues, etc.
9 (2)
Flat knife type
Wide blade, alloy material, fast and sharp, low dust crushing. Applicable to: boxes and baskets/bottle shells/packaging products, films/woven packaging tapes/cloth materials, etc.
4 (3)
Heavy duty claw knife
SK-11 reinforced and hardened material, with strong force and large rotation, For difficult materials such as fiber-reinforced materials, hard rubber head blocks, nylon materials, PC materials, etc.,

Warm reminder: The above are the types of knives that can be equipped with the standard powerful crusher.

Please choose the correct one according to the material requirements!

If you are not sure about the knife type, please contact customer service and let us use our expertise to select the type for you!

Baozhun plastic crusher brings you: the most practical! The most energy efficient! Maximum efficiency!

Fourth, Machine Details Display

11 (2)
11 (2)
● High quality knives ● Thickened and reinforced crushing chamber ● 57-59℃ igh hardness cutting tools ● Good crushing force, durable and wear-resistant
44 (2)
● Limit switch ● When the box is opened, the blade automatically stops running to protect the user's safety
22 (2)
● Nut handle ● Easy connection, strong and durable
55 (2)
● Large diameter flywheel ● Large diameter rotating flywheel ● Strong inertia and strong crushing force ● Can easily handle thick and hard materials
33 (2)
● Brand motor ● All copper core high-end brand ● Strong power and stable performance
66 (2)
● Customizable discharge screen ● The size of the material discharged is controlled by the screen ● 5-50MM range can be customized ● The larger the mesh size, the higher the production capacity.

Schematic Diagram

Models unit GX163 GX-250
Crusher Motor HP 1.5KW 3KW
Rotor Diameter mm 180 220
Cutting Length mm 160 250
Stator Knife Pc/Set 2 2
Rotor Knife Pc/Set 3 3
Blower Motor HP 1HP 1.5HP
Capacity Kgs/hr 20~60 45~120
Toroue Motor KW 0.37 0.75
Power W 400 400
L*M*H mm 900*900*1200 1100*900*1300
N.W KGS 280KG 约420KG
结构图 (2)
结构图 (2)
结构图 (2)
结构图 (2)

Host supporting use cases

It is widely used for online crushing and recycling of various soft and hard edge materials (sheets, plates, film edge materials of PP, PVC, PET, PE, PS and other materials) with a thickness of 0.02-5.0mm.

11
Non-woven fabric edge material is broken online

Non-woven fabric edge material is broken online

11
Before breaking

Automatically press materials into the host machine

11
Before breaking

Bubble film edge material recycling

11
Before breaking

Stretch film edge recycling

Schematic Diagram

1 (14)
Bent bucket crusher
2 (10)
Straight bucket crusher
3 (7)
Pipe crusher
4 (4)
Heavy duty rubber head crusher
5 (4)
Silent crusher
6 (3)
Sheet film crusher
7 (2)
Film sheet edge recycling machine
8 (2)
Medium speed slow speed edge machine
9
pallet crusher
10
Heavy barrel crusher
11 (3)
Double shaft shredder
12
Single shaft shredder
13
Silent dust recycling crusher
14
Pipe recycling crusher
15、Automatic inlet and outlet crusher
Automatic inlet and outlet crusher
16
Conveying iron removal recycling crusher

Packaging & Shipping

1 (15)
1 (15)
2 (11)
2 (11)
3 (8)
3 (8)
4 (5)
4 (5)
5 (5)
5 (5)
6 (4)
6 (4)
7 (3)
7 (3)


Company Introduction

Dongguan Gaoxin Machinery Co., Ltd., whose technology is introduced from abroad, is a leading firm in field of pvc pipe crusher machine. We have been continually investing in new production equipment and improving existing tools and machinery. This will help increase our flexibility in responding to changing customer demands. We pledge to put both business success and environment protection as our priority. We assume social responsibility during production to reduce carbon footprint as much as possible.
We only produce high-quality products. Welcome customers to contact customer service staff for consultation!
