Gaoxin Machinery Plastic Recycling Machine Upply
Product details of the plastic recycling machine
Product Description
Gaoxin Machinery plastic recycling machine is precisely manufactured in accordance with industry set norms. Many customers are greatly impressed by its optimal performance and superior quality. To be more advanced in global market, Gaoxin Machinery always guarantees the quality of plastic recycling machine before loading.

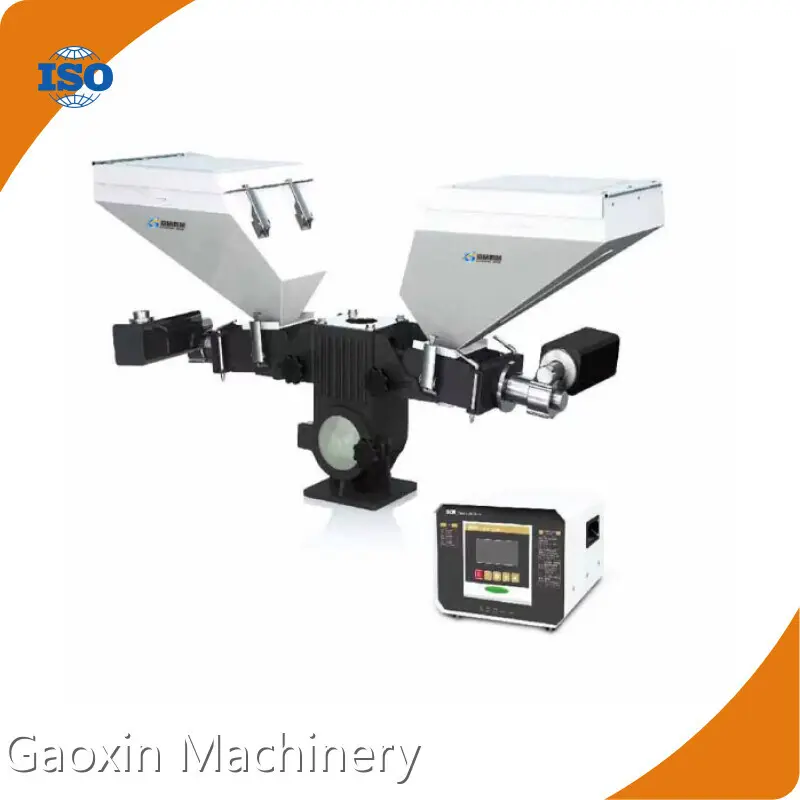

Application range of metering masterbatch mixer:
Specially used for injection molding machines, extruders, film blowing machines and other molding machines, it is an instrument that automatically mixes one main material with multiple masterbatches or additives in proportion.
Adopting PLC color touch screen controller, the metering masterbatch machine uses touch screen as the user operation interface, which is intuitive and convenient. This machine can be synchronized with the injection molding machine signal. There are many types of screw diameters, which can provide different outputs from 0.04 to 80 kg per hour
Can choose a variety of materials
Machine features:
1. PLC touch screen is used to control calculation, accurate measurement and output
2. The metering masterbatch machine is synchronized with the injection molding machine signal, with formula storage and reading functions, and can be called to start the machine
3. It has a metering function, automatically monitors the masterbatch or addition situation, and automatically adjusts and adapts when the raw material stacking density changes
4. The metering part can be removed from the base as a whole without leaking material. There are visual material windows on the base and the side of the hopper, which is easy to observe the raw materials
5. It can realize quantitative feeding, accurate measurement and stable transportation
6. Humanized design, simple operation, and stable machine performance
7. Modular assembly structure, screw and sleeve can be replaced or cleaned
8. The dryer weight is 200KG and needs to be equipped with a reinforced large base
9. Optional material level alarm, detect masterbatch blockage and alarm
10. Optional standard agitator, customer double mixing requirements
11. Machine maintenance: modular accessories, module switching and maintenance are simple
12. Flange size: can be customized according to the size required by your company
13. Applicable to extruders, injection molding machines and blown film modes, please note when placing an order
14. Foolproof installation and debugging. There is a dedicated engineering telephone to guide installation and debugging
15. The metering masterbatch machine is not applicable and can be returned
Technical Parameters
| Model | WSM-12 | WSM-16 | WSM-25 | ||
| Motor Power(KW) | 0.3 | 0.3 | 0.3 | ||
| rotary speed(rp.m.) | 1.8-300 | 1.8-300 | 1.8-300 | ||
| Mixer Power(KW) | 0.09 | 0.09 | 0.09 | ||
| Screw Dia.(mm) | 12 | 16 | 25 | ||
| Output Capacity(kg/hr) | 0.05-20 | 0.5-45 | 5-60 | ||
| Storage Capacity(L) | 13 | 13 | 13 | ||
| Dimensions HxWxD(cm) | 450x560x310 | 450x560x310 | 450x560x310 | ||
| (KG) | 24 | 24 | 24 | ||
Metered masterbatch mixing
Company Advantage
• With good location advantages, the open and easy traffic serves as the foundation for Gaoxin Machinery's development.
• Gaoxin Machinery has a development history of years. Now, we have leading production and processing capabilities in the industry.
• Our high quality teams that understands technology and knows well about management, lay a solid foundation for our development and growth.
Gaoxin Machinery's Plastic machinery and general machinery,Plastic Crusher,Mixer Dryer Machine,Plastic Recycling Machine,Industrial Chiller are all qualified by national certification. If you have any needs, please contact us as soon as possible.
