Applications and features of hydraulic rubber cutter：
Hydraulic rubber cutter is mainly used to cut the natural rubber, synthetic rubber, and other plastic materials, especially it is suitable to be installed near the rubber mixer to cut small piece of rubber.
Two limit switches are installed on the frame to control the reversal valve to control the movement direction of the rubber knife, at the same time it protects the cover of the cylinder.
Rubber cutter owns reasonable structure, convenient automated operation, low noise, and is equipped with safety devices.

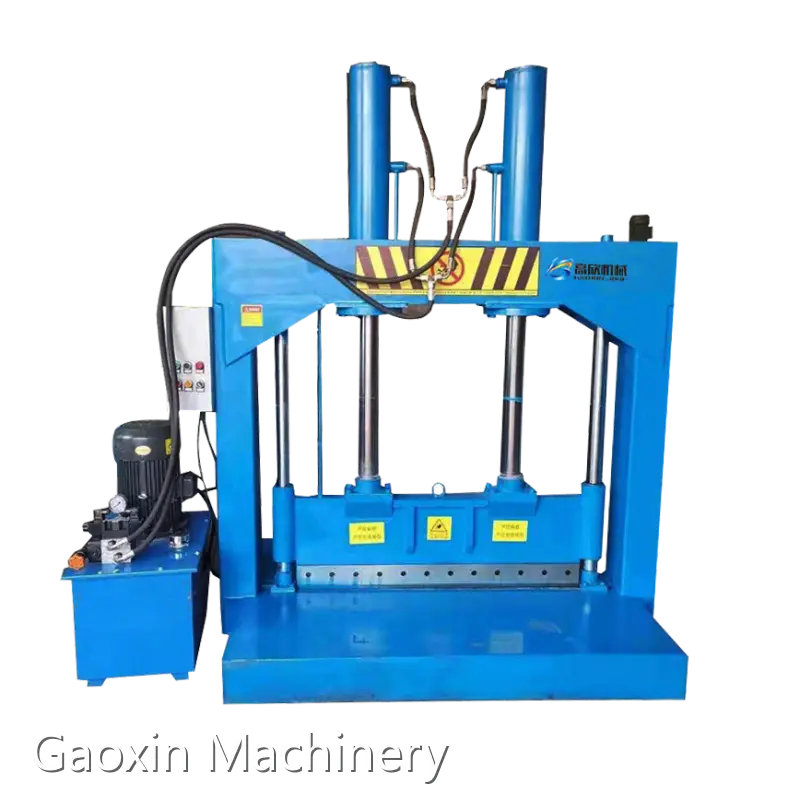

Common styles of hydraulic rubber cutting machines
Specifications
| Model | VHC-800 | VHC-1000 | VHC-1200 | VHC-1500 |
| Pressure（KN） | 20-80 | 80-160 | 80-200 | 80-200 |
| Motor power(HP) | 5 | 15 | 15 | 20 |
| Voltage(V) | 380V/415V/220V400V etc. | |||
| Cutter width (MM) | 800 | 1000 | 1200 | 1500 |
| Piston stroke (MM) | 600-800 | 600-1000 | 600-1000 | 600-1200 |
| Oil pressure(MPa) | 10 | 20 | 20 | 25 |
| Size(CM) | 110*60*150 | 125*105*230 | 145*120*230 | 175*140*230 |
| Weight(KG) | 800 | 1200 | 1500 | 1800 |
Company Advantages
· While designing Gaoxin Machinery hydraulic metal baler, we uphold the principles of innovation and functionality.
· The product is thoroughly checked in order to ensure that it performs without any flaws.
· If you have questions about hydraulic metal baler, feel free to contact our customer service team.
Company Features
· Dongguan Gaoxin Machinery Co., Ltd. has developed into one of the leading manufacturers in China, specializing in hydraulic metal baler designing and developing.
· Our company has garnered national attention. We won several awards such as Outstanding Supplier of the Year and Business of Excellence Award. These accolades are recognition of our dedication.
· Enterprise culture is the driving force for sustaining Gaoxin Machinery's development. Get quote!
Application of the Product
The hydraulic metal baler produced by our company is widely recognized by customers and widely used in field.
Gaoxin Machinery is rich in industrial experience and is sensitive about customers' needs. We can provide comprehensive and one-stop solutions based on customers' actual situations.
