hdpe recycling machine's structure is more compact and easy to be installed, so as to effectively reduce labor intensity and shorten operating time. Our quality inspectors make sure that the product is in accordance with international quality standards. Dongguan Gaoxin Machinery Co., Ltd. is able to provide customers around the world with internationally-advanced technology and support.

Double shaft shredder performance:

Specially used for shredding bulk materials, waste and other materials.

By shearing each other with two sets of cutterheads composed of high-grade alloy steel, various soft and hard materials are sheared, torn and squeezed to achieve the effect of shredding and reducing the size of the materials.

This machine has the characteristics of large output, low energy consumption, low noise, and low dust.

Double shaft shredder uses:

Therefore, it is widely used in coarse and medium crushing operations of various solid waste, films, rubber heads, tires, plastic barrels, scrap household appliances, metal, leather, carton wood, rubber, etc., with a single machine processing capacity of 5-25 tons per hour.

Click to view

Application scope

Widely used in various solid waste, scrap tires, rubber, barrels, waste plastics, scrap metal, wood, etc. Agricultural film woven bags, wires and cables, waste household appliances, sofas, paper, leather, wood, pipes, metal, household waste, It is suitable for coarse and medium crushing of medical waste, electronic waste, circuit boards, oil drum rubber, etc., with high output. (Strong shredding, recycling; large output, low energy consumption, low noise, low dust)

Agricultural film woven bag

Rubber tires

Plastic glue bucket

Rubber head block

Tray pallet

Old household appliances

Drum

Silk fishing net

Auto parts

Hardware and electronics

Old clothes sponge

Wood

Processing effect

Plastic

Pipes

Wood

Tire

Hardware and electronics

Film

Tool structure

(Hardness reaches 58 degrees right) Two types of knife types are available, with knife widths ranging from 10MM to 80MM and sizes available.

Combination knife

Double hob

Integral knife

Mining knife

Automatic matching of double-shaft shredder

Automatic discharging + secondary crushing by crusher + automatic recycling and storage

Conveyor belt feeding + outgoing belt discharging

Model	GX-600	GX-800	GX-1000	GX-1200	GX-1400
Main motor power/KW	7.5+7.5	22+22	30+30	40+40	50+50
Shredding Chamber Measurement/mm	600*450	800*600	1000*600	1200*600	1410*800
Rotator Diameter/mm	Φ220	Φ290	Φ290	Φ300	Φ440
Spindle speed(r/min)	15	15	15	15	15
Mobile Cutter Number/PCS	48	60	60	100	100
Fixed Cutter Number/PCS	16	20	20	20	20
Cutter Thickness/mm	30	50	50	60	70
Dimensions/mm	15008001600	260010002000	280010002000	32001002400	340015002600
Weight/KG	900	2200	2500	3200	5600

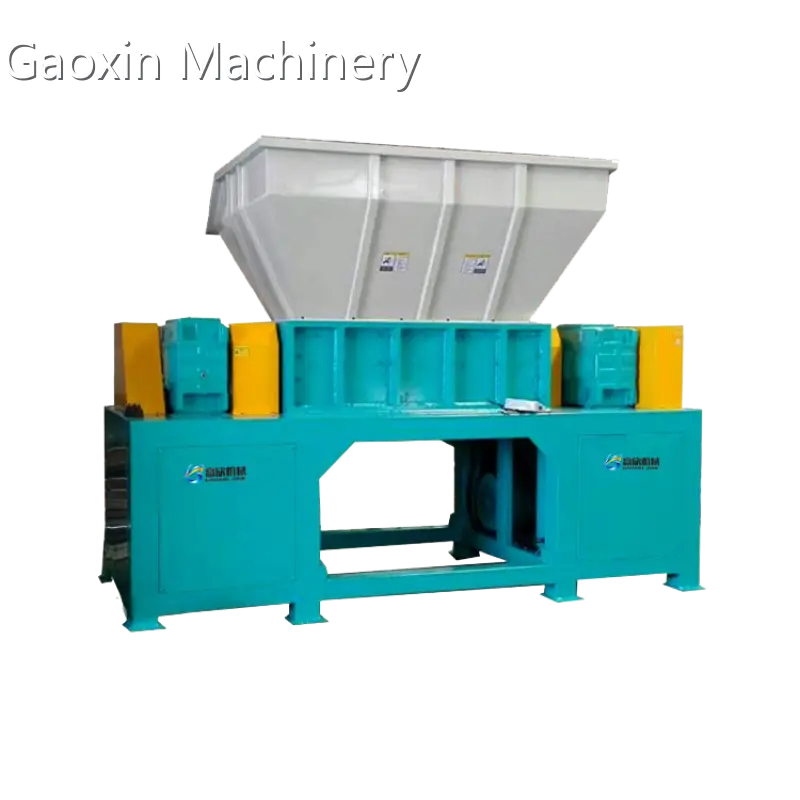

Double shaft shredder physical picture reference

图片1(8) (2)

图片1(9) (2)

图片1(10)

图片1(11)
