Gaoxin Machinery Feeding Conveyor Directly Sale
Product details of the feeding conveyor
Product Description
Gaoxin Machinery feeding conveyor is elaborately crafted from the sophisticated production equipment. The quality of the product has been greatly enhanced as the production technology has been improved. It is one of Dongguan Gaoxin Machinery Co., Ltd.'s greatest achievements to understand each customer’s unique business requirement.
Main uses
Suitable for the treatment, recycling and manufacturing of waste, defective products and scraps of film materials, bubble films, melt-blown fabrics, non-woven fabrics, CPE.PE.CPP.PO.PP.PET.PA, PVC, TPU and other films. materials, used in conjunction with a high proportion of raw materials
Machine advantages:
No heating, no water, no modification,
Odorless, smokeless, energy-saving and environmentally friendly
Scope of application
Used for processing film materials, bubble films, melt-blown fabrics, non-woven fabrics, CPE.PE.CPP.PO.PP.PET.PA, PVC, TPU and other waste materials, defective products, and scrap materials, recycling materials, and can be used with raw materials Used in conjunction with high proportions
Uniform particles, odorless, smokeless and static-free
Scenes to be used
Odorless and smokeless, energy-saving and environmentally friendly
Three models to choose from
The production capacity can reach 30KG-300KG per hour

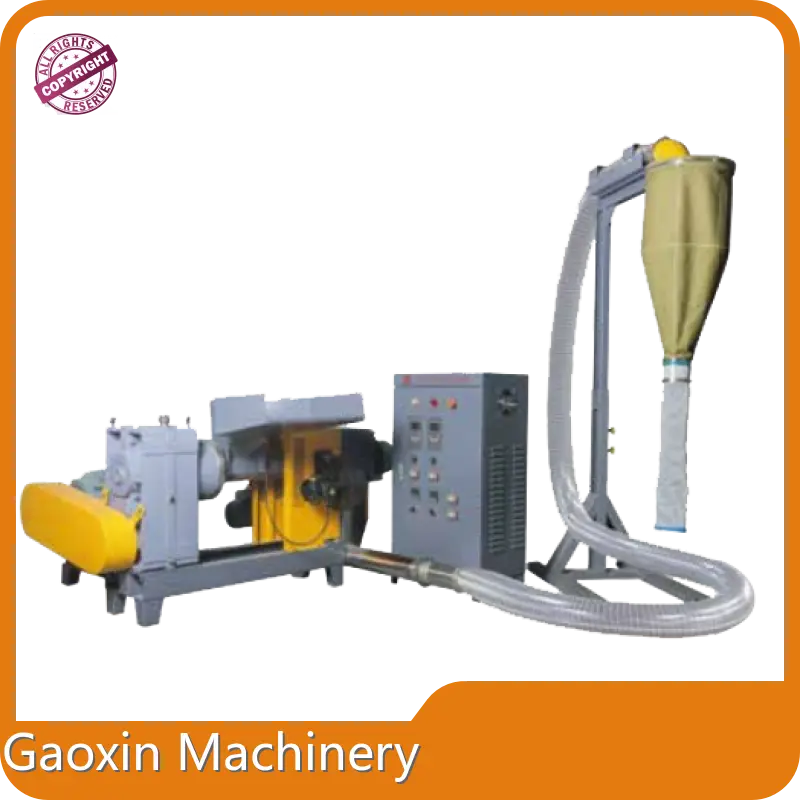

GX-75 environmentally friendly granulator
Applicable materials: LDPE/GXPE/CPE/PVC/TPU/degradable and other plastics
● No water consumption
● Energy saving and environmental protection
● No modification
● Smokeless and odorless
|
Model |
Output* |
Average power consumption* |
Total power |
Working current |
Total Weight |
land area |
|
GX-75 |
30~60 KG/hours |
200~250 degrees/ton |
~13 KW |
15~24 A |
0.78 T |
3 M2 |
*Output/power consumption will vary depending on the material.
| Part | Brand | Parameter | Quantity |
| Screw diameter | 75 MM | 1 | |
| Extrusion motor | Feng Sheng | Level6 11 KW | 1 |
| Cutter motor | Feng Sheng | Level6 0.75 KW | 1 |
| Frequency converter | Hope senlan | 11 KW | 1 |
| 0.75 KW | 1 | ||
| Fan | Champions League | 0.75 KW | 2 |
| 146 | 1 | ||
| PVC steel wire pipe | 10 M | 1 | |
| Buckle | 2 | ||
| Blade | 10 | ||
| Screen changer (optional) | Manual duplex | ||
| None | |||
| Filter mesh | 80 mesh stainless steel thickened | 30 | |
| Part | Brand | Parameter | Quantity |
| Screw diameter | 110 MM | 1 | |
| Extrusion motor | Siemens | Level6 37 KW | 1 |
| Cutter motor | Feng Sheng | Level6 0.75 KW | 1 |
| Frequency converter | Hope senlan | 37 KW | 1 |
| 0.75 KW | 1 | ||
| Fan | Champions League | 1.5 KW | 3 |
| 0.75 KW | 2 | ||
| Cooling cabinet | 2 | ||
| Reducer | 200 | 1 | |
| Stainless steel storage barrel | 200 KG | 1 | |
| PVC steel wire pipe | 5 M | 3 | |
| Buckle | 6 | ||
| Blade | 30 | ||
| Screen changer (optional) | Automatic duplex R | ||
| None | |||
| Filter mesh | 80 mesh stainless steel thickened | 30 | |
GX-110 environmentally friendly granulator
Applicable materials: LDPE/GXPE/CPE/PVC/TPU/degradable and other plastics
● No water consumption
● Energy saving and environmental protection
● No modification
● Smokeless and odorless
|
Model |
Output* |
Average power consumption* |
Total power |
Working current |
Total Weight |
land area |
|
GX-110 |
80~130 KG/hours |
200~250 degrees/ton |
45 KW |
50~80 A |
2.4 T |
10 M2 |
*Output/power consumption will vary depending on the material.
| Part | Brand | Parameter | Quantity |
| Screw diameter | 110 MM | 1 | |
| Extrusion motor | Siemens | Level 37 KW | 1 |
| Cutter motor | Feng Sheng | Level 0.75 KW | 1 |
| Frequency converter | Hope senlan | 37 KW | 1 |
| 0.75 KW | 1 | ||
| Fan | Champions League | 1.5 KW | 3 |
| 0.75 KW | 2 | ||
| Cooling cabinet | 2 | ||
| Reducer | 200 | 1 | |
| Stainless steel storage barrel | 200 KG | 1 | |
| PVC steel wire pipe | 5 M | 3 | |
| Buckle | 6 | ||
| Blade | 30 | ||
| Screen changer (optional) | Automatic duplex R | ||
| None | |||
| Filter mesh | 80 mesh stainless steel thickened | 30 | |
GX-150 environmentally friendly granulator
Applicable materials: LDPE/GXPE/CPE/PVC/TPU/degradable and other plastics
● No water consumption
● Energy saving and environmental protection
● No modification
● Smokeless and odorless
|
Model |
Output* |
Average power consumption* |
Total power |
Working current |
Total Weight |
land area |
|
GX-150 |
150~230 KG/hours |
200~250 degrees/ton |
~65 KW |
60~100 A |
3.1 T |
10 M2 |
*Output/power consumption will vary depending on the material.
| Part | Brand | Parameter | Quantity |
| Screw diameter | 150 MM | 1 | |
| Extrusion motor | Siemens | Level 6 55 KW | 1 |
| Cutter motor | Feng Sheng | Level 6 0.75 KW | 1 |
| Frequency converter | Hope senlan | 55 KW | 1 |
| 0.75 KW | 1 | ||
| Fan | Champions League | 1.5 KW | 3 |
| 0.75 KW | 2 | ||
| Cooling cabinet | 2 | ||
| Reducer | 280 | 1 | |
| Stainless steel storage barrel | 200 KG | 1 | |
| PVC steel wire pipe | 5 M | 3 | |
| Buckle | 6 | ||
| Blade | 30 | ||
| Screen changer (optional) | Automatic duplex R | ||
| None | |||
| Filter mesh | 80 mesh stainless steel thickened | ||
Use case + workshop corner
Company Feature
• Established in Gaoxin Machinery has been engaged in the production of Plastic machinery and general machinery,Plastic Crusher,Mixer Dryer Machine,Plastic Recycling Machine,Industrial Chiller for years. So far we have accumulated rich industry experience.
• Gaoxin Machinery is located in a position with traffic convenience. And the advantageous geographic location creates a broad prospect for the business development of our company.
• Apart from selling products, our company establishes a complete service system to provide consumers with intimate after-sales service.
• Gaoxin Machinery's Plastic machinery and general machinery,Plastic Crusher,Mixer Dryer Machine,Plastic Recycling Machine,Industrial Chiller are not only sold in Mainland China, but also exported to some countries and regions overseas. We enjoy a relatively wide recognition in the industry.
