For Rubber Industry Plastic Recycling Equipment by Gaoxin Machinery

Company Advantages

· The design concept of plastic recycling equipment is based on modern green style.

· The quality of this product is guaranteed and has many international certificates, such as ISO certificates.

· Dongguan Gaoxin Machinery Co., Ltd.'s plastic recycling equipment has super quality and competitive price in plastic recycling equipment industry.

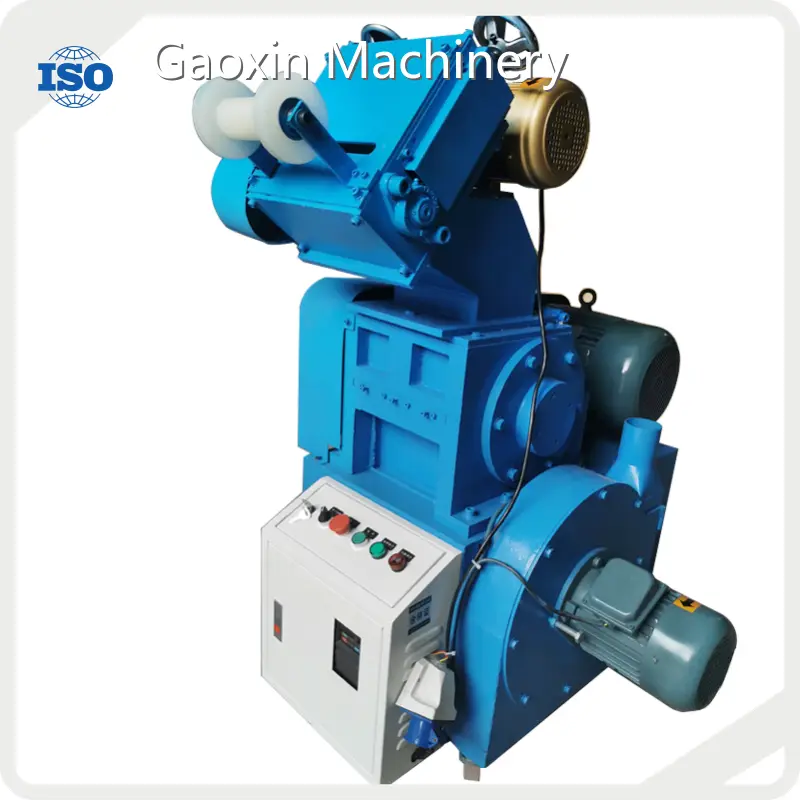

Edge material online crusher

Used for online crushing and recycling of machine edges in extrusion, film blowing, and casting equipment. The long edge materials can be automatically pulled into crushing and recycled automatically.

Sheet/film materials are automatically pulled into and crushed

The debris is forced into the main screw

Automatic clamping when sheet/film material thickness changes

The pull-in speed is adjustable and synchronized with the host

Click to view

Machine style and performance

It is suitable for extracting or suction-type recovery and crushing of various soft and hard edges cut during the production of extruders such as casting machines, calenders, sheet machines, and plate machines.

Then it is transported to the cyclone separator through the pipeline through the fan, and then escorted by the feeding screw into the screw inlet of the extruder and automatically mixed with new materials to achieve the effect of automatic recycling.

Type A: Air suction type

Type A: Air suction typeSuitable for thin and light membrane edge materials

Type B:Pressure wheel typs

Type B:Pressure wheel typsSuitable for wide and thick films or sheets

Tool Type

A variety of cutting tools, selected according to material requirements, more efficient and faster

Claw knife type

Narrow blade, strong dispersion force, and large shearing force Applicable to: thick and hard material blocks/heads, etc.

Blade type

Universal blade type, rapid crushing and high uniformity of material particles. Applicable to: nozzles/defective products/sheets/sprues, etc.

Flat knife type

Wide blade, alloy material, fast and sharp, low dust crushing. Applicable to: boxes and baskets/bottle shells/packaging products, films/woven packaging tapes/cloth materials, etc.

Heavy duty claw knife

SK-11 reinforced and hardened material, with strong force and large rotation, For difficult materials such as fiber-reinforced materials, hard rubber head blocks, nylon materials, PC materials, etc.,

Warm reminder: The above are the types of knives that can be equipped with the standard powerful crusher.

Please choose the correct one according to the material requirements!

If you are not sure about the knife type, please contact customer service and let us use our expertise to select the type for you!

Baozhun plastic crusher brings you: the most practical! The most energy efficient! Maximum efficiency!

Fourth, Machine Details Display

11 (2)

● High quality knives ● Thickened and reinforced crushing chamber ● 57-59℃ igh hardness cutting tools ● Good crushing force, durable and wear-resistant

● Limit switch ● When the box is opened, the blade automatically stops running to protect the user's safety

● Nut handle ● Easy connection, strong and durable

● Large diameter flywheel ● Large diameter rotating flywheel ● Strong inertia and strong crushing force ● Can easily handle thick and hard materials

● Brand motor ● All copper core high-end brand ● Strong power and stable performance

● Customizable discharge screen ● The size of the material discharged is controlled by the screen ● 5-50MM range can be customized ● The larger the mesh size, the higher the production capacity.

Schematic Diagram

Models	unit	GX163	GX-250
Crusher Motor	HP	1.5KW	3KW
Rotor Diameter	mm	180	220
Cutting Length	mm	160	250
Stator Knife	Pc/Set	2	2
Rotor Knife	Pc/Set	3	3
Blower Motor	HP	1HP	1.5HP
Capacity	Kgs/hr	20～60	45～120
Toroue Motor	KW	0.37	0.75
Power	W	400	400
L*M*H	mm	900*900*1200	1100*900*1300
N.W	KGS	280KG	约420KG

结构图 (2)

结构图 (2)

Host supporting use cases

It is widely used for online crushing and recycling of various soft and hard edge materials (sheets, plates, film edge materials of PP, PVC, PET, PE, PS and other materials) with a thickness of 0.02-5.0mm.

Non-woven fabric edge material is broken online

Non-woven fabric edge material is broken online

Before breaking

Automatically press materials into the host machine

Before breaking

Bubble film edge material recycling

Before breaking

Stretch film edge recycling

Schematic Diagram

Bent bucket crusher

Straight bucket crusher

Pipe crusher

Heavy duty rubber head crusher

Silent crusher

Sheet film crusher

Film sheet edge recycling machine

Medium speed slow speed edge machine

pallet crusher

Heavy barrel crusher

Double shaft shredder

Single shaft shredder

Silent dust recycling crusher

Pipe recycling crusher

Automatic inlet and outlet crusher

Conveying iron removal recycling crusher

Packaging & Shipping

1 (15)

2 (11)

3 (8)

4 (5)

5 (5)

6 (4)

7 (3)
