Gaoxin Machinery-Professional Plastic Crusher & Dryer Machine Manufacturer Since 1995.

Custom Pvc Crusher Machine Price List 1
Custom Pvc Crusher Machine Price List 1

Custom Pvc Crusher Machine Price List

Inquiry

Company Advantages

· Gaoxin Machinery pvc crusher machine is manufactured using state-of-the-art technology to guarantee the fine workmanship and smooth production.

· The advanced quality testing equipment and method are applied, ensuring the high quality of the product.

· With the innovative concept, excellent quality, and perfect detection system, Dongguan Gaoxin Machinery Co., Ltd. launched the Gaoxin Machinery.

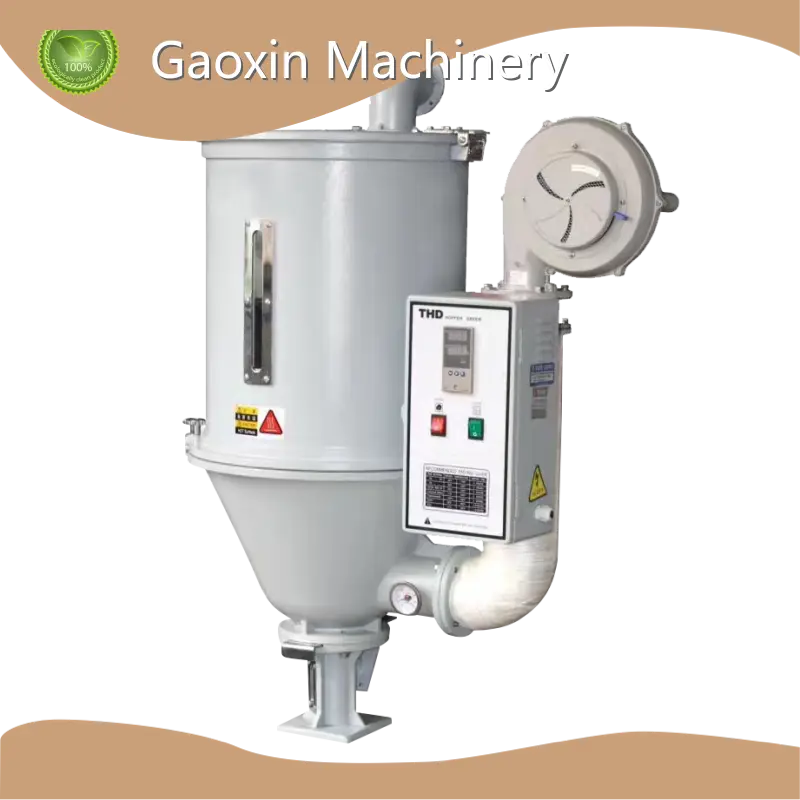

Plastic dryer uses:

The most effective and economical equipment for drying plastic raw materials. It is widely used for drying any plastic materials. It can dry raw materials that are wet due to packaging, transportation or recycling. The stainless steel barrel can be directly matched with injection molding machines, extruders, granulators, etc. For drying plastic. It's fast and saves space. This upward-blowing hot air dryer can provide a loading capacity of 25-2000kg, and multiple models are available.

Plastic drying machine principle:

The hot air generated by the heating tube is blown into the barrel through a high-performance high-temperature-resistant fan to fully dry the plastic, maintain plastic drying requirements, and maintain a uniform and constant temperature for a long time.

Click to view
图片1 (57)

Suitable for various raw materials

Adjustable temperature 50-120℃, even drying

Plastic dryers can dry raw materials that are wet due to packaging and transportation

Used to remove surface moisture, suitable for PP, PE, ABS, PVC and other raw materials, can be heated to high temperature and dried quickly

1 (38)
1 (38)
2 (30)
2 (30)
3 (24)
3 (24)
4 (19)
4 (19)
5 (15)
5 (15)
6 (11)
6 (11)
7 (5)
7 (5)
8 (3)
8 (3)

Dry thoroughly and quickly

The dryer is made of stainless steel, double-layer barrel, stainless steel electric heating cylinder, heat dissipation electric heating tube, and high-temperature fan

2 (31)
Standard hopper dryer
Dry evenly and quickly
3 (25)
Thermal energy type + hot air recovery type
More energy-saving and environmentally friendly, saving 25% of electricity

Scenes to be used

Can be used in many occasions, with automatic suction machine to achieve automated operation

4 (20)
Install on the host
5 (16)
With L-shaped tripod
6 (12)
With L-shaped tripod
7 (6)
Paired with automatic suction machine

Structure diagram

图片1 (58)

Dryer technical parameters:

Model Capacity (kg) HEATIG (kg) Blower (w) Powe (v) Dimensions (cm) Base size (cm) Net weight (kg)
GXDB-12E 12 1.8 50 220/3Φ 64×44×76 11×11×Φ4 22
GXDB-25E 25 3.5 122 220/3Φ 76×50×104 16×16×Φ6.2 34
GXDB-50E 50 4.5 157 220/3Φ 87×54×121 16×16×Φ7 45
GXDB-75E 75 6.5 227 380/3Φ 94×60×131 16×16×Φ7 56
GXDB-100E 100 6.5 246 380/3Φ 101×70×141 18×18×Φ8 68
GXDB-150E 150 9 350 380/3Φ 110×74×162 20×20×Φ8.8 78
GXDB-200E 200 12 350 380/3Φ 118×84×176 23×23×Φ11.5 110
GXDB-300E 300 15 750 380/3Φ 142×100×183 27.5×27.5×Φ12 152
GXDB-400E 400 15 750 380/3Φ 148×106×202 27.5×27.5×Φ12 170
GXDB-600E 600 20 1100 380/3Φ 158×116×240 28×28×Φ13.5 280
GXDB-800E/ 800 30 2200 380/3Φ 183*128*248 35*35×Φ13.5 460
GXDH-1000E 1000 40 2200 380/3Φ 202*142*248 50*50×Φ13.6 680
GXDH-1500E 1500 50 3000 380/3Φ 204*142*319 50*50×Φ13.5 750

Workshop corner

11 (16)
11 (16)
22 (16)
22 (16)
33 (13)
33 (13)
44 (11)
44 (11)
55 (9)
55 (9)
66 (8)
66 (8)


Company Features

· Dongguan Gaoxin Machinery Co., Ltd. is an experienced and reliable company in designing, manufacturing and distributing cost-effective products such as pvc crusher machine.

· We have talented staff that are not only highly skilled technically, but also artistically imaginative. They can create products as unique as our customer's brand is. We have state-of-the-art machines that can produce a broad spectrum of products in a highly economical way. With superb processing quality, they help us achieve consistently high-quality and impressive turnaround times. We have a group of talented employees. They can help create the perfect design and incorporate the customer's brand into the visual beauty of the product.

· Although there are ups and downs, what remains unchanged is Dongguan Gaoxin Machinery Co., Ltd. 's pioneering spirit.


Product Details

Gaoxin Machinery will show you product's specific details below.


Product Comparison

We insist on regulating the production process of the products in accordance with standards, so as to promote the pvc crusher machine has higher quality. Compared with peer products, the specific advantages are mainly reflected in the following aspects.


Enterprise Advantages

Our company has gathered a group of professional technical R&D personnel to provide safe and reliable production technology. With a focus on innovation, we keep up with the times and strive to solve various problems in the procedure of production.

With the rapid development of economy, the customer service management no longer merely belongs to the core work of service-oriented enterprises. Instead, it has become the focus for all enterprises to be more competitive. In order to follow the trend of the times, our company has built an outstanding customer service management system by learning the advanced service idea and knowledge. We promote customers from satisfaction to loyalty through persisting in providing quality service.

Gaoxin Machinery will stick to the business which is quality, innovative and efficient. Our corporate spirit is to be cooperative, optimistic and positive. Keeping pace with the times, we constantly innovate products to meet consumer demand. We are dedicated to providing more and better products and services.

Since the establishment in Gaoxin Machinery has been leading domestic and foreign market for many years and have won many honors in the industry.

Gaoxin Machinery's Plastic machinery and general machinery,Plastic Crusher,Mixer Dryer Machine,Plastic Recycling Machine,Industrial Chiller gain a good reputation in the domestic and international markets for multiple types, affordable price, and reliable quality.
