Product details of the plastic recycling machine
Product Description
Gaoxin Machinery plastic recycling machine is precisely designed by our experts using the latest design concept. The strict quality inspection during the production efficiently prevents product defects. Our R&D team are all professional in the plastic recycling machine industry.

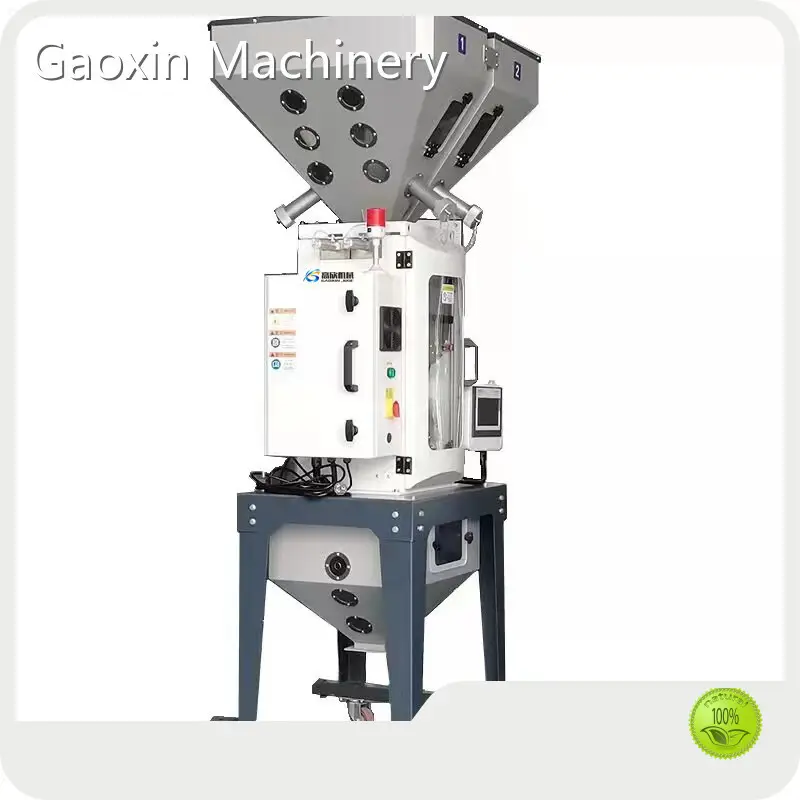

Weighing type mixer purpose:
Weighing-mixing-proportioning ingredients
The machine is suitable for plastic extrusion, extrusion or hollow molding process, the need for a variety of raw materials, according to the weight ratio accurate mix. Microcomputer control system, and with automatic feeding function, high accuracy, easy to operate.
Weighing mixer can add multiple types of materials
Principle of weighing mixer
Product features:
1. Single-chip microprocessor design, more powerful, smaller and stronger anti-interference ability;
2. EEPROM memory is used, and the setting data will not be lost after the power is cut off, and no battery is required;
3. The human-machine interface status display touch keyboard data input is used, which is more convenient to operate and can store a large amount of formula data (500 groups);
4. High-speed and high-precision AD grabs weight faster and more stably;
5. All borings are evenly mixed after gravity measurement, and the accuracy can be strictly controlled.
6. Check the weight data and the selected raw materials to ensure the precision and accuracy of the mixing;
7. It can be directly installed on the molding equipment, but the adapter base should be purchased;
8. When the machine is used for ground installation, it is necessary to select a combination of a start-up cut-off valve, a tripod storage bucket and a suction box.
Technical Parameters
| Models | GXB-50 | GXB-100 | GXB-200 | GXB-400 | GXB-600 |
| Number of groups | 4 | 4 | 4 | 4 | 4 |
| Mixing capacity(kg/hr) | 50 | 100 | 200 | 400 | 600 |
| Batch weight(kg) | 1 | 3 | 3.5 | 8 | 10 |
| Main material mixing range(%) | 5~100 | 5~100 | 5~100 | 5~100 | 5~100 |
| Additive mixture range (%) | 0.5~10 | 0.5~10 | 0.5~10 | 0.5~10 | 0.5~10 |
| Main Hopper volume (L) | 18 | 25 | 32 | 45 | 70 |
| Volume of additive hopper (L) | 5 | 8 | 12 | 15 | 18 |
| Volume of mixing barrel (L) | 8 | 10 | 10 | 18 | 25 |
| Power supply specifications(V/Hz) | 1Φ | 1Φ | 1Φ | 3Φ | 3Φ |
| 230/50 | 230/50 | 230/50 | 400/50 | 400/50 | 400/50 |
| Total power (kw) | 0.12 | 0.12 | 0.25 | 0.55 | 0.55 |
| Compressed air(kgf/cm2) | 6~8 | 6~8 | 6~8 | 6~8 | 6~8 |
| Noise(dB) | <75 | <75 | <75 | <75 | <75 |
| H(mm) | 1500 | 1725 | 1745 | 1905 | 1905 |
| W(mm) | 700 | 925 | 825 | 940 | 940 |
| D(mm) | 640 | 700 | 750 | 910 | 910 |
| Base(mm)(HxWxDxBxAxC) | 200*375*275* | 200*375*275* | 280*535*415* | 280*535*415* | 280*535*415* |
| 130*130-Φ100 | 150*150-Φ100 | 150*150-Φ100 | 150*150-Φ100 | 150*150-Φ100 | 150*150-Φ100 |
| Move the tripod(mm)(H1xH2xWxD) | 600*675*540 | 660*675*560 | 660*675*560 | 800*850*780*610 | 800*850*780*610 |
| weight(kg)Direct mounting type | 90 | 90 | 130 | 140 | 180 |
| weight(kg) Ground mounting type | 110 | 110 | 155 | 165 | 230 |
A corner of the workshop
Company Advantage
• Gaoxin Machinery has an international sales channel. Plastic machinery and general machinery,Plastic Crusher,Mixer Dryer Machine,Plastic Recycling Machine,Industrial Chiller are mainly sold to some countries and regions in Europe, America, and Australia.
• Our company is located in a great geographical position with quite a few railways and highways, creating the advantages of transportation.
• Gaoxin Machinery attaches great importance to the cultivation and introduction of scientific and technological talents. Now we have a team of outstanding talents with experts from various disciplines.
Our products are all qualified and are sold directly from factory. Welcome friends from all walks of life to contact and consult us.
