Product details of the crusher screening plant
Product Information
As for crusher screening plant produced by Dongguan Gaoxin Machinery Co., Ltd., it's more a matter of practicality than design. The quality of this product is thoroughly inspected by the QC team. It is the great customer service that Gaoxin Machinery has won many praises from customers.

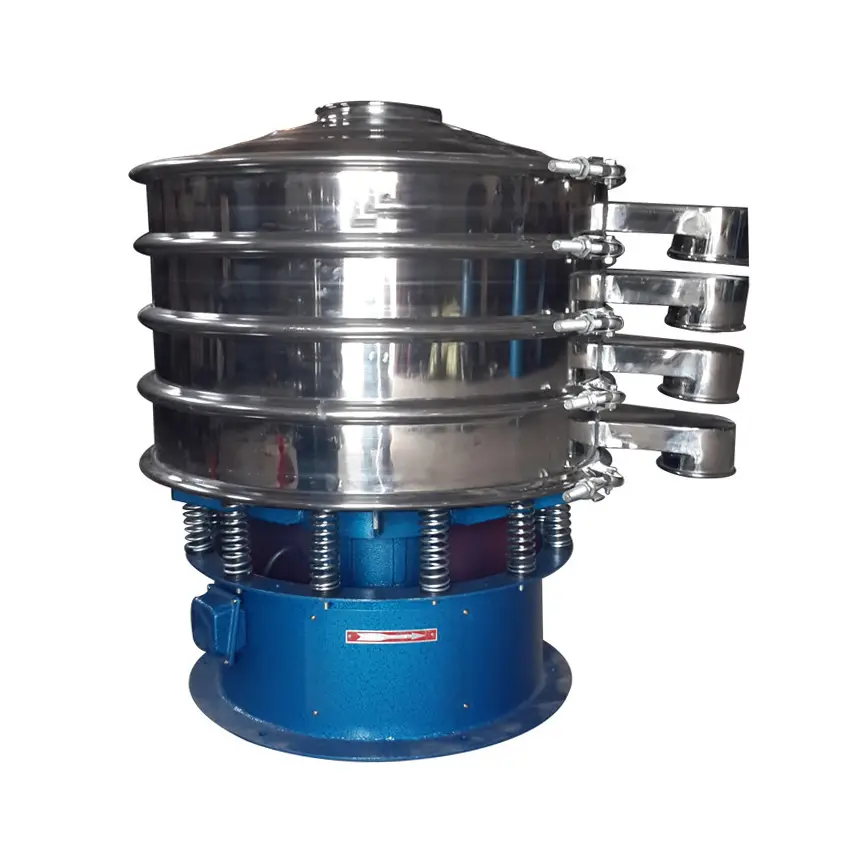

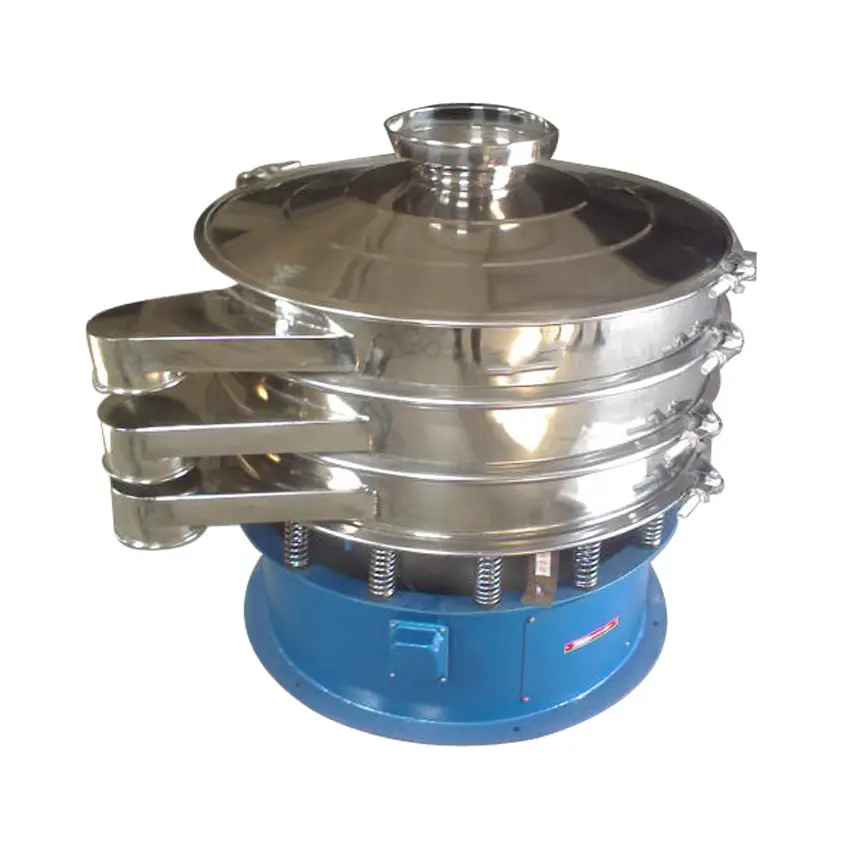

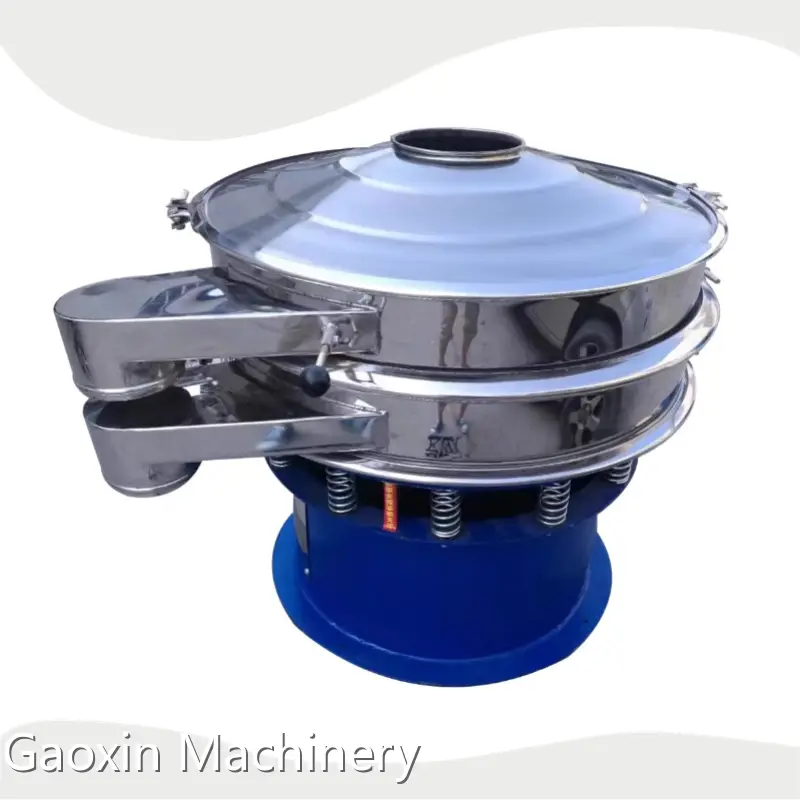

Circular vibrating screen functions:
This machine is suitable for screening and classifying various powdery materials of 80-600 mesh.
It has high screening efficiency, large output, automatic feeding and grading, continuous operation, no pollution, and cleaner screen.
Applicable industries:
Plastics, chemicals, food, graphite powder, resin powder, traditional Chinese medicine powder, coatings, fly ash, talc powder, industrial drugs, cosmetics, fire extinguishing agents, plastic powder, clay, abrasives, aluminum powder, glass powder, refractory Materials, starch, milk powder, metallurgical powder, electromagnetic materials, copper powder, carbon black, activated carbon, light calcium carbonate, iron ore, etc.
Circular vibrating screen principle
The counterweights at the upper and lower ends of the motor shaft convert the rotational motion of the motor into horizontal, vertical, and tilted three-dimensional motion, and then convey this motion to the screen surface.
Fast and accurate separation, continuous operation, raw materials can be accurately separated into products of different sizes through this machine, accurate screening, high efficiency
The scope of products
Can screen 80-600 mesh
Solid liquid, various materials can be used
Food industry: Sugar powder, starch, salt, rice flour, milk powder, soy milk, egg powder, condiments, protein, food additives, drinks, etc.
Pharmaceutical industry: Industrial drugs, traditional Chinese medicine powder, granular pills.
Chemical industry: Resins, coatings, industrial drugs, cosmetics, paints, etc.
Metallurgical powder industry: Aluminum lead powder, copper powder, talc powder, electromagnetic materials, abrasive powder, refractory materials, lime soil, alumina, heavy calcium carbonate, quartz sand, etc.
Other industries: Waste oil, waste water, dyeing and finishing waste water, papermaking, additives, activated carbon, etc.
Multiple specifications available

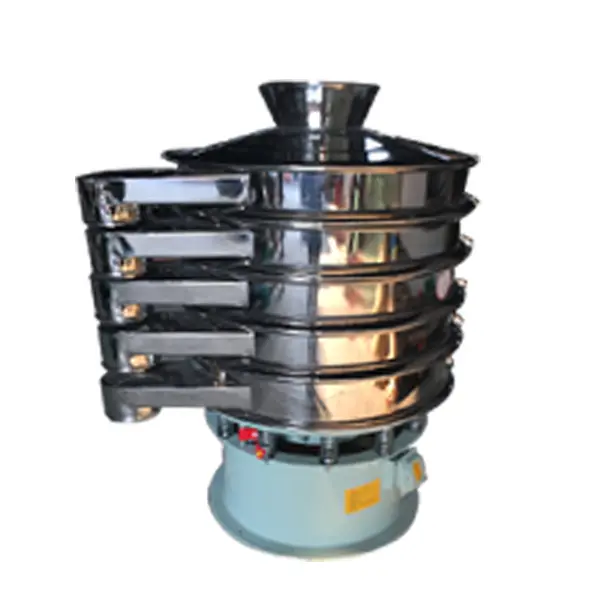

1-layer to 5-layer screens, all optional, with different sizes and classifications, clean screening and high productivity
Multiple materials--multiple specifications available
0.6M---2M diameter model
Automated matching
Technical parameters of circular vibration screening machine
|
Nominal diameter (mm) |
Φ600 |
Φ800 |
Φ1000 |
Φ1200 |
Φ1500 |
Φ1800 |
Φ2000 |
|
Effective screen area (m²) |
0.24 |
0.45 |
0.67 |
1 |
1.6 |
2.43 |
3.01 |
|
Wire mesh (eyes/inch） |
2-400 |
||||||
|
Material size (mm) |
<Φ10 |
<Φ15 |
<Φ20 |
<Φ30 |
|||
|
Vibration time (rpm) |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
|
Effectine diameter of sieve surface (mm) |
Φ560 |
Φ760 |
Φ930 |
Φ1130 |
Φ1430 |
Φ1760 |
Φ1960 |
|
Level |
1-3 floors |
||||||
|
Power (Kw) |
0.55 |
0.735 |
1.5 |
1.84 |
2.2 |
3 |
3 |
|
Single high total |
605 |
730 |
810 |
970 |
1000 |
1530 |
1725 |
|
Double high total |
705 |
860 |
940 |
1110 |
1150 |
1710 |
1905 |
|
Three layers of high total |
805 |
990 |
1070 |
1250 |
1300 |
1890 |
2085 |
