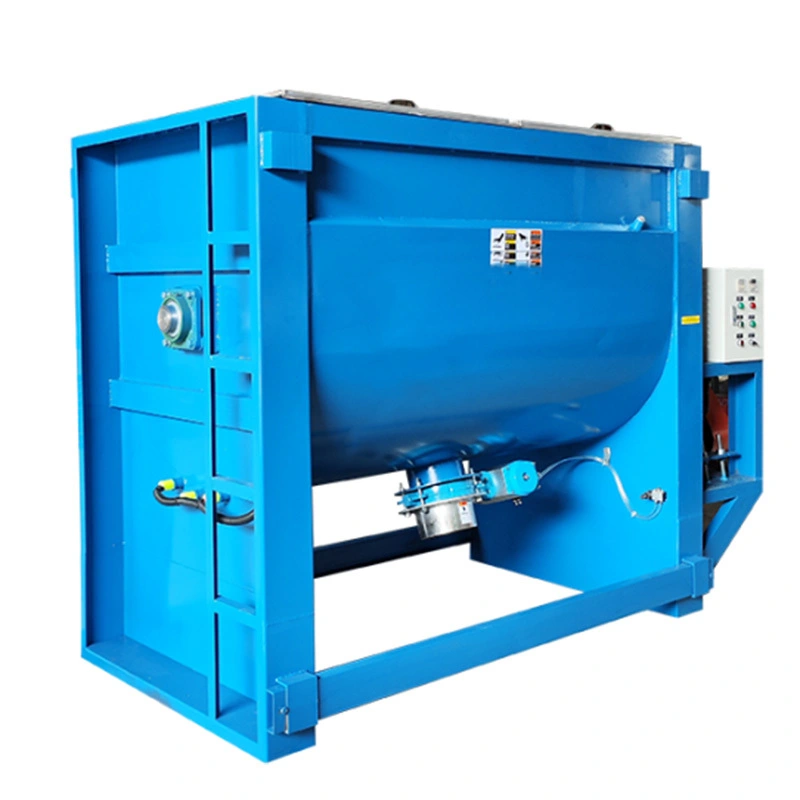

Horizontal mixer 50-150 degrees 1
Horizontal mixer 50-150 degrees 1

Horizontal mixer 50-150 degrees

● Suitable for mixing and mixing large amounts of plastic granules, powders, new materials, old materials, additives, and color mixing; the single-layer barrel wall has a pure mixing function, and the double layer can be heated. It is often used for large-capacity plastic dyeing and granulation, modification, recycling of recycled materials, mixing and drying of plastic granules and powders such as PVC, TPR, TPE, PP, PE, and chemical powders (such as calcium carbonate, barium sulfate, talcum powder, flame retardants, titanium dioxide, PVC powder, additives, ceramic color glazes, etc.).

Double-layer oil heating, the temperature is usually 50-150 degrees, and the maximum can reach 300 degrees.

A spiral feeder can be added to facilitate personnel operation.

    oops...!

    no product data.

    Go to homepage

    Machine internal blades

    The stirring principle is using double S stirring blades, the outer spiral gathers the materials from both sides to the center, and the inner spiral transports the materials from the center to both sides, forming a highly efficient convection mixing.


    Horizontal mixer, commonly used for large-capacity plastic dyeing and granulation, modification, recycling of recycled materials, mixing and drying of plastic granules such as PVC, TPR, TPE, PP, PE, and chemical powders (such as: calcium carbonate, barium sulfate, talcum powder, flame retardant, titanium dioxide, PVC powder, additives, ceramic color glaze, etc. (mixing, heating and drying functions)

    Optional 180 degree double propeller
    Optional 180 degree double propeller
    Optional 360-degree multi-layer propellers
    Optional 360-degree multi-layer propellers
    Standard single-paddle
    Standard single-paddle

    Optional models + automation matching

    Injection molding, blow molding, granulation, food, chemical industry automation

    Automatic discharging + weighing and packaging
    Automatic discharging + weighing and packaging
    Mixing + conveying + screening + storage
    Mixing + conveying + screening + storage
    Automatic screw feeding and discharging
    Automatic screw feeding and discharging
    Automatic screw feeding
    Automatic screw feeding
    Liquid spray device
    Liquid spray device
    With ladder + guardrail
    With ladder + guardrail

    Use and delivery cases

    With ladder + guardrail
    With ladder + guardrail
    图片1 (10)
    图片1 (10)
    图片2 (7)
    图片2 (7)
    图片3 (2)
    图片3 (2)

    Technical parameters

    Horizontal mixer parameters

    Model Motor Caoacuty Volume VOltage Tachometer Qutlie dimesions(MM)
    ZHQC-300 4 KW 300 KG 0.6㎡ 380V/50HZ 20r/min 2000*1100*1600
    ZHQC-500 5.5 KW 500 KG 1㎡ 380V/50HZ 20r/min 2500*900*1700
    ZHQC-1000 11 KW 1000 KG 2㎡ 380V/50HZ 18r/min 3000*1300*2100
    ZHQC-1500 15 KW 1500 KG 3㎡ 380V/50HZ 18r/min 3020*1400*2200
    ZHQC-2000 20 KW 2000 KG 4㎡ 380V/50HZ 15r/min 3450*1500*2400
    ZHQC-3000 30 KW 3000 KG 6㎡ 380V/50HZ 15r/min 3780*1910*2700
    ZHQC-5000 45KW 5000 KG 10㎡ 380V/50HZ 11r/min 4600*1930*2550MM

    Horizontal heating mixer parameters

    Model Motor Electrothermal Caoacuty Volume VOltage Tachometer Qutlie dimesions(MM)
    ZHQC-300 4 KW 8 KW 300 KG 0.6㎡ 380V/50HZ 20r/min 2000*1100*1600
    ZHQC-500 5.5 KW 12KW 500 KG 1㎡ 380V/50HZ 20r/min 2500*900*1700
    ZHQC-1000 11 KW 21 KW 1000 KG 2㎡ 380V/50HZ 18r/min 3000*1300*2100
    ZHQC-1500 15 KW 24KW 1500 KG 3㎡ 380V/50HZ 18r/min 3020*1400*2200
    ZHQC-2000 20 KW 31KW 2000 KG 4㎡ 380V/50HZ 15r/min 3450*1500*2400
    ZHQC-3000 30 KW 42 KW 3000 KG 6㎡ 380V/50HZ 15r/min 3780*1910*2700
    ZHQC-5000 45KW 56KW 5000KG 10㎡ 380V/50HZ 11r/min 4600*1930*2550MM
