Long Lasting Plastic Recycling Molding Machine for Rubber Industry
Product details of the plastic recycling molding machine
Quick Detail
The design of Gaoxin Machinery plastic recycling molding machine is desirable and appealing. The product has the guarantee of our know-how and internationally-certified quality. plastic recycling molding machine of Gaoxin Machinery can play a role in various industries. Through the efforts of our QC team, the plastic recycling molding machine is of good quality.
Product Introduction
Gaoxin Machinery produces plastic recycling molding machine according to national standards, and the products are of good quality. The specific details are as follows.

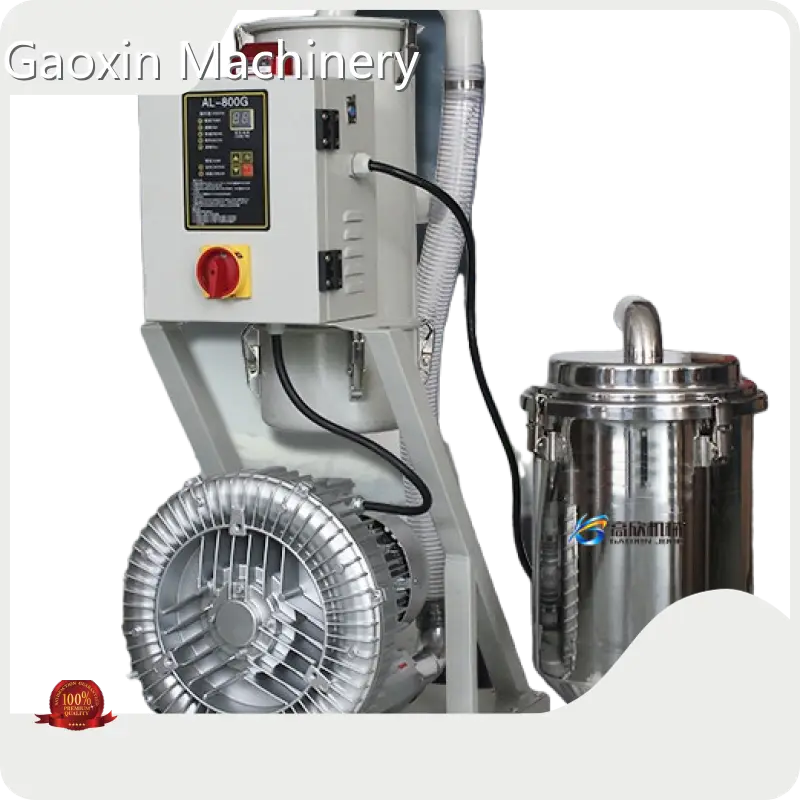

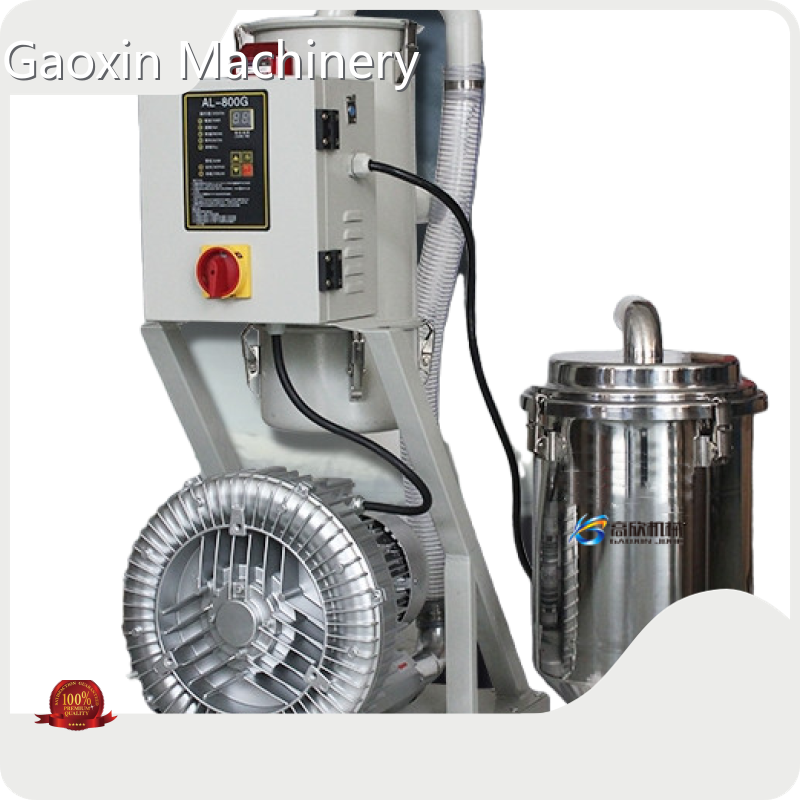

Automatic suction machine functions:
1.The material suction machine is an automatic material conveying equipment that uses the wind pressure generated by a super-powerful wind blower to convey raw materials;
2.Strong wind power, high efficiency, small footprint, space saving and low cost, beautiful and practical;
3.It is an auxiliary equipment that is easy to install, simple to use and operate, has strong long-distance transportation capability, stable production, reliable operation, and realizes fully automated production.
Automatic suction machine uses
Suction machines are widely used in the injection molding industry, granulation industry, food, chemical industry, etc.; they can be used with dryers, dehumidifiers, host hoppers and other related equipment to facilitate environmental protection.
The scope of products
Applicable industries: plastics, rubber, food, chemicals, pharmaceuticals and other industries
Applicable materials: All kinds of granular materials, flake materials, and powder materials can be automatically transported
Multiple models available
The material suction machine is an automatic material conveying equipment that uses the wind pressure generated by the super wind blower for automatic conveying.
(Both granular materials and powder materials are available)
Stainless steel hopper style
Random accessories - complete
Automated use in injection molding, blow molding, granulation, food, and chemical industries
Gasket + locking ring
Suction gun
Dust bag
Suction tube
Installation structure diagram
Technical parameters of automatic suction machine
| Mode | GXAL-300G | GXAL-400G | GXAL-700G | GXAL-800G | GXAL-800G2 | GXAL-900G | ||
| Power | Type | Carbon brush type | Inductive type | Carbon brush type | Inductive type | |||
| Specifications | 1KW/220V | 0.75KW/380V | 1KW/220W | 1.1KW/380V | 2.3KW/380V | 2.3KW/380V | ||
| Capacity | 290 | 350 | 300 | 300-400 | 350-450 | 300+300 | ||
| Suction lift | 3.5 | 4 | 4 | 4 | 5 | 5 | ||
| Static pressure (mm / H20) | 1300 | 1400 | 1550 | 1800 | 2400 | 2400 | ||
| Capacity | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5+7.5 | ||
| Tube diameter(mm) | Φ38x3.5m/ 1pcs | Φ38x4m /1pcs | Φ38x4m/2pcs | Φ38x4m /2pcs | Φ38x5m/2pcs | Φ38x4m /4pcs | ||
| outline dimension (cm) | Host | / | / | 37*37*55 | 46*38*70 | 50X40X72 | 60*50*82 | |
| storage vat | 40*30*44 | 40*30*44 | 40*30*44 | 40*30*44 | 40*30*44 | 40*30*44 | ||
| Net weight (kg) | host | 11 | 32 | 18 | 46 | 58 | 85 | |
| storage vat | / | / | 6 | 6 | 6 | 6(2个) | ||
Workshop corner
