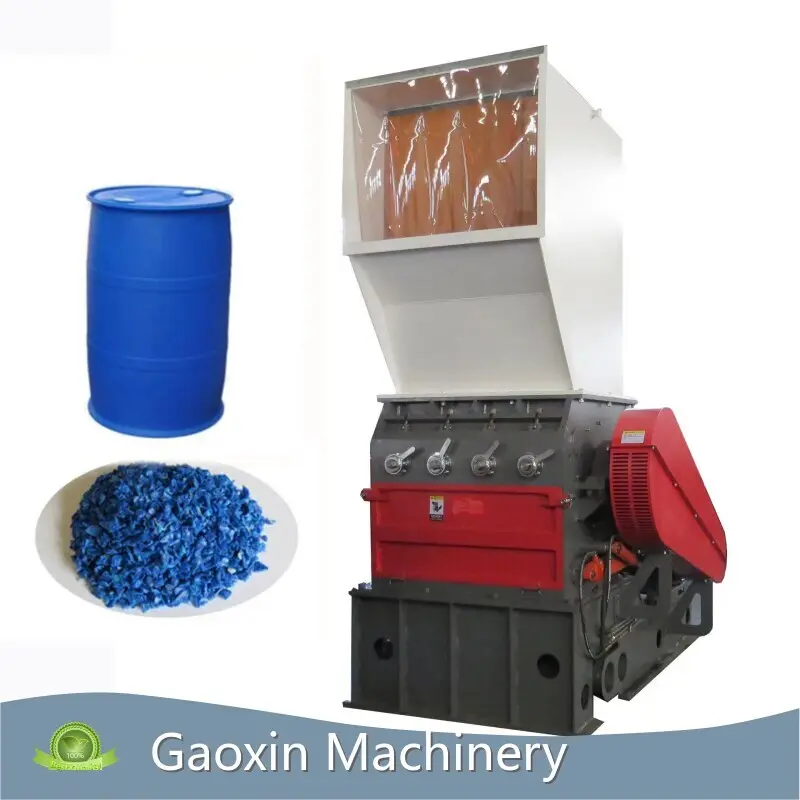

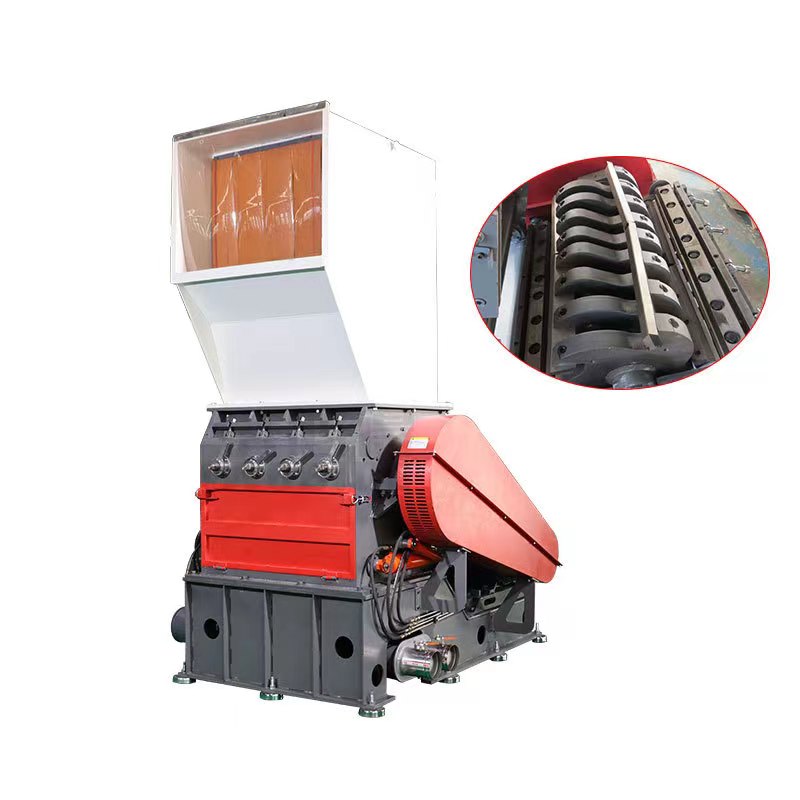

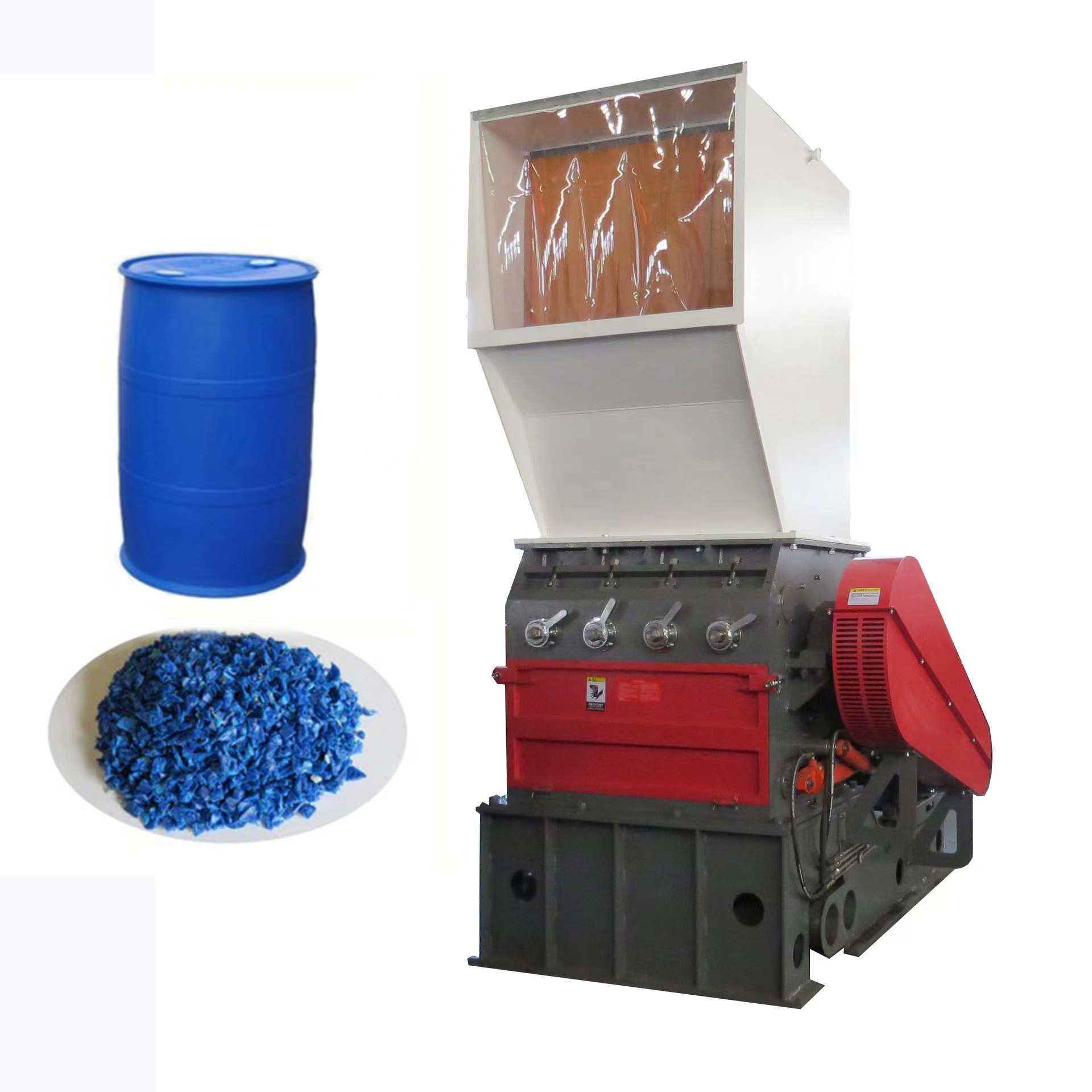

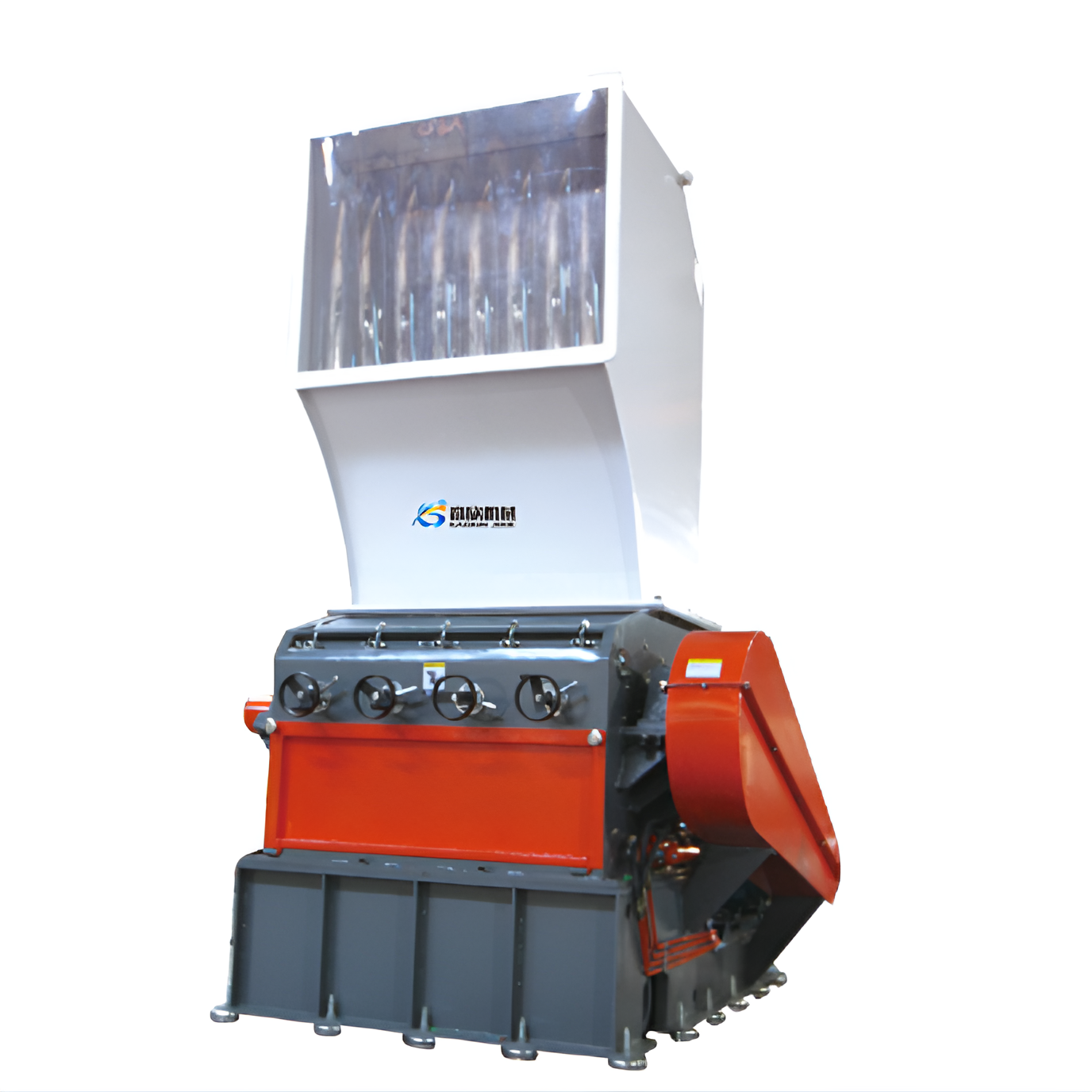

High End Plastic Scrap Crusher From China for Plastic Industry

Product details of the plastic scrap crusher

Quick Overview

The plastic scrap crusher designed by Gaoxin Machinery professional designers are very competitive in this industry. The product has quality consistency and stable performance to meet the requirements of the customers. Dongguan Gaoxin Machinery Co., Ltd. is able to provide customers around the world with internationally-advanced technology and support.

Product Description

Gaoxin Machinery's plastic scrap crusher is of exquisite workmanship, which is reflected in the details.

Barrel Crusher

1.Mainly aimed at crushing and reusing large-volume hollow plastic containers.

Including water barrels, grease barrels, chemical blue barrels, plastic bags, storage baskets, trash cans,

2.Plastic products such as home appliance casings, special models developed and designed.

Click to view

Product Features

Using a dedicated spindle, unique middle box structure and hopper form, no shredder is needed for shredding.

Crush it to the particle size required by the customer at one time, reducing the recycling process and saving energy.

Reduce labor intensity, reduce costs, and improve crushing and recycling efficiency.

Use knives

Special V-shaped SKD-11 high wear-resistant cutting tool

COMPANY STRENGTH

Our in-house designers and engineers have produced countless great designs for customers from different industries

COMPANY STRENGTH

Our in-house designers and engineers have produced countless great designs for customers from different industries

V-shaped cutter with high cutting force

The crushing chamber can be fully opened, making it easy and quick to change the tool

Application scope

Specially used for crushing and recycling hollow materials of various barrels, bags, home appliances and other large containers

1 (16)

Garbage can

Before breaking

Big blue bucket

Before breaking

Refrigerator shell

Before breaking

Large plastic box plastic basket

Before breaking

Luggage bags

Before breaking

Waste household appliances

Fourth, Machine Details Display

11 (2)

● High quality knives ● Thickened and reinforced crushing chamber ● 57-59℃ igh hardness cutting tools ● Good crushing force, durable and wear-resistant

● Limit switch ● When the box is opened, the blade automatically stops running to protect the user's safety

● Nut handle ● Easy connection, strong and durable

● Large diameter flywheel ● Large diameter rotating flywheel ● Strong inertia and strong crushing force ● Can easily handle thick and hard materials

● Brand motor ● All copper core high-end brand ● Strong power and stable performance

● Customizable discharge screen ● The size of the material discharged is controlled by the screen ● 5-50MM range can be customized ● The larger the mesh size, the higher the production capacity.

Product Features

Product Features

①Reduce noise by 80%

The fuselage adopts a closed double-layer structure with a built-in soundproof cover. The noise level is ≥80dB per meter.

②Rotor technology

Concentric dynamic balancing process, ensures smooth operation

③Easy tool change

Unique tool design makes tool replacement easier

④Drying reduction treatment in hopper

Made of thickened double-layer steel plate, twice as quiet

Schematic Diagram

Model	unit	GXGS600	GXGS800	GXGS1000	GXGS1200
Crushing chamber	(mm)	600*600	800*800	1020*1000	1220*1000
rotor diameter	(mm)	450	450	650	850
screen mesh	(mm)	10-50	10-50	10-50	10-50
Crushing capacity	(kg/h)	600-700	800-900	1000-2000	2000-4000
Blade number	PCS	4	4	4	4
Blade number	PCS	6	6	6	6
Power	Kw	30	37	45	55
	HP	40	50	60	75
Outine dimensions	(L×W×H MM)	2100*1500*2300	2200*1700*2400	2400*1900*3000	3000*2000*4000
Net weight	(kg)	2200	2800	4500	6000

结构图 (2)

结构图 (2)

Use with automation

It can be equipped with a fan to discharge material from the storage barrel, a conveyor belt to feed material, and a screw machine to automatically feed in and out of the material system, saving time and labor, and making the production capacity more efficient







Schematic Diagram

Bent bucket crusher

Straight bucket crusher

Pipe crusher

Heavy duty rubber head crusher

Silent crusher

Sheet film crusher

Film sheet edge recycling machine

Medium speed slow speed edge machine

pallet crusher

Heavy barrel crusher

Double shaft shredder

Single shaft shredder

Silent dust recycling crusher

Pipe recycling crusher

Automatic inlet and outlet crusher

Conveying iron removal recycling crusher

Packaging & Shipping

1 (15)

2 (11)

3 (8)

4 (5)

5 (5)

6 (4)

7 (3)

Company Advantages

Dongguan Gaoxin Machinery Co., Ltd. is located in dong guan. And our major business is the production and sales of Plastic machinery and general machinery,Plastic Crusher,Mixer Dryer Machine,Plastic Recycling Machine,Industrial Chiller. Our company adheres to the business philosophy of 'sharing joy and worry with customers and developing together with the society'. We also promote our enterprise spirit of 'integrity, innovation and win-win'. Based on honesty, we emphasize development and innovation, and hope to cooperate with like-minded friends, so as to achieve win-win cooperation and create brilliance. Gaoxin Machinery has a group of professional and experienced technical personnel to ensure the development and production of high-quality products. With a focus on customers' potential needs, Gaoxin Machinery has the ability to provide one-stop solutions.
We have been providing high quality plastic scrap crusher for a long time. We look forward to working with you.
