Gaoxin Machinery-Professional Plastic Crusher & Dryer Machine Manufacturer Since 1995.

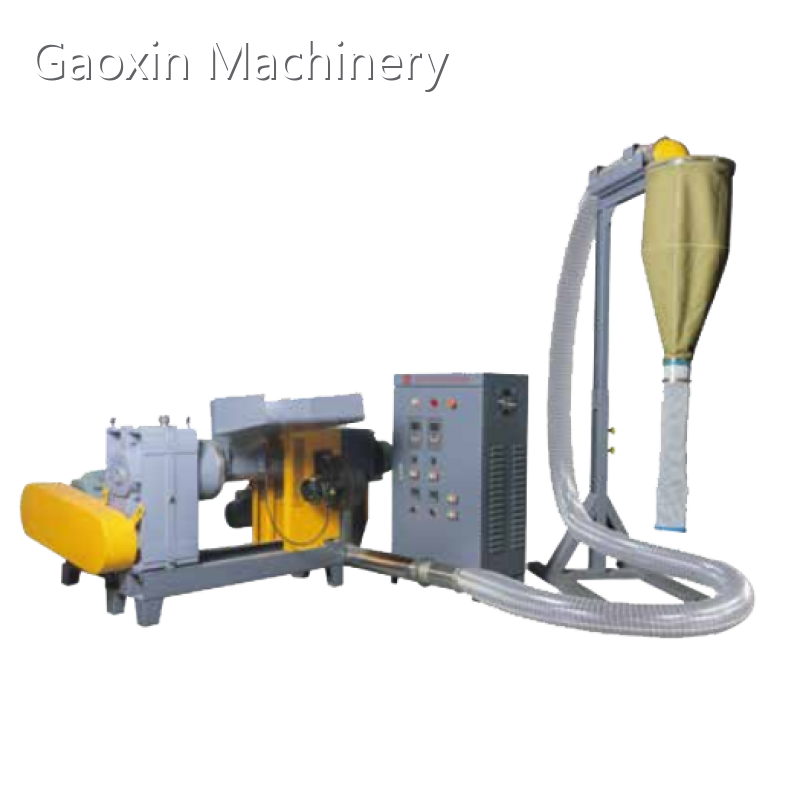

Custom Plastic Crusher Factory for Plastic Industry 1
Custom Plastic Crusher Factory for Plastic Industry 1

Custom Plastic Crusher Factory for Plastic Industry

Inquiry

Company Advantages

· Gaoxin Machinery plastic crusher offers desirable design and appealing appearance.

· The product excels others due to its excellent characteristics of stable performance, durability, and so on.

· Dongguan Gaoxin Machinery Co., Ltd. always implements the right customer service culture to maximize customer satisfaction.

Main uses

Suitable for the treatment, recycling and manufacturing of waste, defective products and scraps of film materials, bubble films, melt-blown fabrics, non-woven fabrics, CPE.PE.CPP.PO.PP.PET.PA, PVC, TPU and other films. materials, used in conjunction with a high proportion of raw materials

Machine advantages:

No heating, no water, no modification,

Odorless, smokeless, energy-saving and environmentally friendly

Click to view
75型1

Scope of application

Used for processing film materials, bubble films, melt-blown fabrics, non-woven fabrics, CPE.PE.CPP.PO.PP.PET.PA, PVC, TPU and other waste materials, defective products, and scrap materials, recycling materials, and can be used with raw materials Used in conjunction with high proportions

Uniform particles, odorless, smokeless and static-free

1 (41)
PO
2 (32)
PE
3 (26)
PE
4 (21)
TPU
5 (17)
Degradable
6 (13)
PVC
7 (7)
PA
8 (4)
PE

Scenes to be used

Odorless and smokeless, energy-saving and environmentally friendly

图片1 (59)
Non-woven fabrics
图片2 (24)
Film type
图片3 (15)
Bubble wrap

Three models to choose from

The production capacity can reach 30KG-300KG per hour

75型1

GX-75 environmentally friendly granulator

Applicable materials: LDPE/GXPE/CPE/PVC/TPU/degradable and other plastics

● No water consumption

● Energy saving and environmental protection

● No modification

● Smokeless and odorless

图片1 (60)

Model

Output*

Average power consumption*

Total power

Working current

Total Weight

land area

GX-75

30~60 KG/hours

200~250 degrees/ton

~13 KW

15~24 A

0.78 T

3 M2

*Output/power consumption will vary depending on the material.

Part Brand Parameter Quantity
Screw diameter   75 MM 1
Extrusion motor Feng Sheng Level6 11 KW 1
Cutter motor Feng Sheng Level6 0.75 KW 1
Frequency converter Hope senlan 11 KW 1
0.75 KW 1
Fan Champions League 0.75 KW 2
146 1
PVC steel wire pipe   10 M 1
Buckle     2
Blade     10
Screen changer (optional)   Manual duplex
None
Filter mesh   80 mesh stainless steel thickened 30
Part Brand Parameter Quantity
Screw diameter   110 MM 1
Extrusion motor Siemens Level6 37 KW 1
Cutter motor Feng Sheng Level6 0.75 KW 1
Frequency converter Hope senlan 37 KW 1
0.75 KW 1
Fan Champions League 1.5 KW 3
0.75 KW 2
Cooling cabinet     2
Reducer   200 1
Stainless steel storage barrel   200 KG 1
PVC steel wire pipe   5 M 3
Buckle     6
Blade     30
Screen changer (optional)   Automatic duplex R
None
Filter mesh   80 mesh stainless steel thickened 30
1500型1 (2)

GX-110 environmentally friendly granulator

Applicable materials: LDPE/GXPE/CPE/PVC/TPU/degradable and other plastics

● No water consumption

● Energy saving and environmental protection

● No modification

● Smokeless and odorless

图片1 (60)

Model

Output*

Average power consumption*

Total power

Working current

Total Weight

land area

GX-110

80~130 KG/hours

200~250 degrees/ton

45 KW

50~80 A

2.4 T

10 M2

*Output/power consumption will vary depending on the material.

Part Brand Parameter Quantity
Screw diameter   110 MM 1
Extrusion motor Siemens Level 37 KW 1
Cutter motor Feng Sheng Level 0.75 KW 1
Frequency converter Hope senlan 37 KW 1
0.75 KW 1
Fan Champions League 1.5 KW 3
0.75 KW 2
Cooling cabinet     2
Reducer   200 1
Stainless steel storage barrel   200 KG 1
PVC steel wire pipe   5 M 3
Buckle     6
Blade     30
Screen changer (optional)   Automatic duplex R
None
Filter mesh   80 mesh stainless steel thickened 30



1500型1 (2)

GX-150 environmentally friendly granulator

Applicable materials: LDPE/GXPE/CPE/PVC/TPU/degradable and other plastics

● No water consumption

● Energy saving and environmental protection

● No modification

● Smokeless and odorless

图片1 (60)

Model

Output*

Average power consumption*

Total power

Working current

Total Weight

land area

GX-150

150~230 KG/hours

200~250 degrees/ton

~65 KW

60~100 A

3.1 T

10 M2

*Output/power consumption will vary depending on the material.

Part Brand Parameter Quantity
Screw diameter   150 MM 1
Extrusion motor Siemens Level 6 55 KW 1
Cutter motor Feng Sheng Level 6 0.75 KW 1
Frequency converter Hope senlan 55 KW 1
0.75 KW 1
Fan Champions League 1.5 KW 3
0.75 KW 2
Cooling cabinet     2
Reducer   280 1
Stainless steel storage barrel   200 KG 1
PVC steel wire pipe   5 M 3
Buckle     6
Blade     30
Screen changer (optional)   Automatic duplex R
None
Filter mesh   80 mesh stainless steel thickened

Use case + workshop corner

1 (42)
1 (42)
3 (27)
3 (27)
4 (22)
4 (22)
5 (18)
5 (18)


Company Features

· Dongguan Gaoxin Machinery Co., Ltd. has developed into a large manufacturing company that produces plastic crusher.

· We have a competent team of quality controllers (QC). They have solid experience in the plastic crusher industry. They assure that quality is met at every stage of our production process from purchasing raw materials to delivery. Our products are exported via a worldwide distributor network. Now we have expanded and diversified our market focus from the Asian region to more places worldwide, which include North America, South America, Asia Pacific region, ASEAN region, Africa, and EU. Our global footprint spans five continents. The international demand for our products including plastic crusher demonstrates that we are able to meet or exceed the needs of people with different cultures.

· Our goal is to have no accidents and to mitigate impacts on the environment by working with our stakeholders, peers, and others to promote responsible environmental practices and continuous improvement.


Product Comparison

Compared with other products in the same category, plastic crusher produced by Gaoxin Machinery has the following advantages.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
