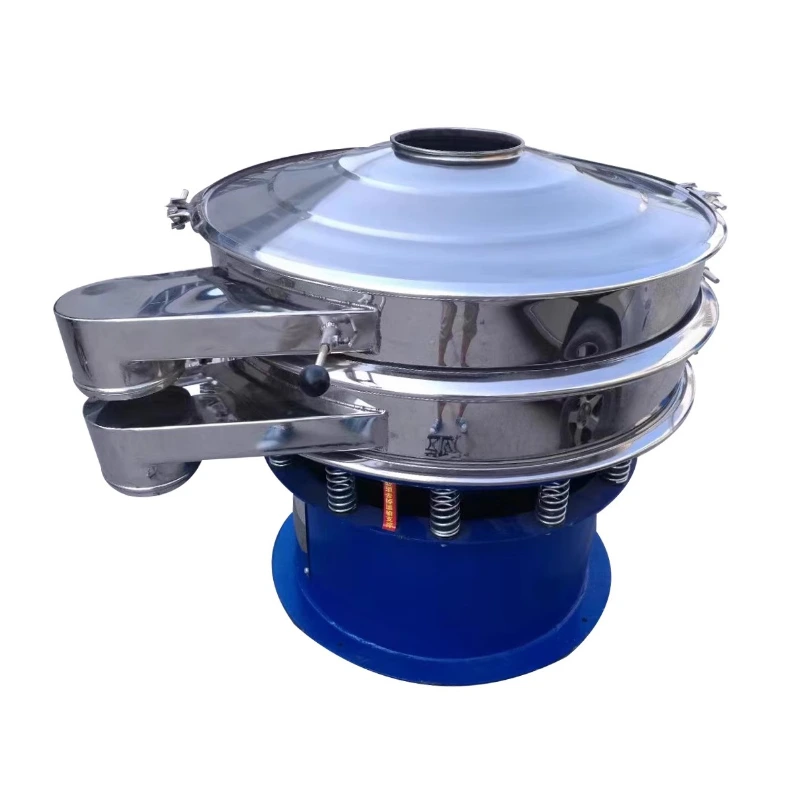

Circular vibrating scree

Plastics, chemicals, food, graphite powder, resin powder, traditional Chinese medicine powder, coatings, fly ash, talc powder, industrial drugs, cosmetics, fire extinguishing agents, plastic powder, clay, abrasives, aluminum powder, glass powder, refractory Materials, starch, milk powder, metallurgical powder, electromagnetic materials, copper powder, carbon black, activated carbon, light calcium carbonate, iron ore, etc.

    oops...!

    no product data.

    Go to homepage

    Circular vibrating screen functions:

    This machine is suitable for screening and classifying various powdery materials of 80-600 mesh.

    It has high screening efficiency, large output, automatic feeding and grading, continuous operation, no pollution, and cleaner screen.

    Applicable industries:

    Plastics, chemicals, food, graphite powder, resin powder, traditional Chinese medicine powder, coatings, fly ash, talc powder, industrial drugs, cosmetics, fire extinguishing agents, plastic powder, clay, abrasives, aluminum powder, glass powder, refractory Materials, starch, milk powder, metallurgical powder, electromagnetic materials, copper powder, carbon black, activated carbon, light calcium carbonate, iron ore, etc.

    Click to view
    图片1 (51)
    图片2 (19)

    Circular vibrating screen principle

    The counterweights at the upper and lower ends of the motor shaft convert the rotational motion of the motor into horizontal, vertical, and tilted three-dimensional motion, and then convey this motion to the screen surface.


    Fast and accurate separation, continuous operation, raw materials can be accurately separated into products of different sizes through this machine, accurate screening, high efficiency

    The scope of products

    Can screen 80-600 mesh

    Solid liquid, various materials can be used

    Food industry: Sugar powder, starch, salt, rice flour, milk powder, soy milk, egg powder, condiments, protein, food additives, drinks, etc.

    Pharmaceutical industry: Industrial drugs, traditional Chinese medicine powder, granular pills.

    Chemical industry: Resins, coatings, industrial drugs, cosmetics, paints, etc.

    Metallurgical powder industry: Aluminum lead powder, copper powder, talc powder, electromagnetic materials, abrasive powder, refractory materials, lime soil, alumina, heavy calcium carbonate, quartz sand, etc.

    Other industries: Waste oil, waste water, dyeing and finishing waste water, papermaking, additives, activated carbon, etc.

    图片3-1
    Plastic powder
    图片3-2
    Medical powder
    图片3-3
    Chemical powder
    图片3-4
    Food powder
    图片4 (8)
    Pellets
    图片5 (7)
    Graphite powder
    图片6 (6)
    Sugar salt granules
    图片7 (2)
    Liquid slurry

    Multiple specifications available

    1-layer to 5-layer screens, all optional, with different sizes and classifications, clean screening and high productivity

    图片8 (2)
    Single layer screen
    2 discharge ports
    2 layers of screen
    3 discharge ports
    3-layer screen
    4 discharge ports
    图片11 (2)
    4 layers of screen
    5 discharge ports

    Multiple materials--multiple specifications available

    0.6M---2M diameter model

    Circular screening machine
    Standard
    The contact material part is made of 304 stainless steel, and the base is made of carbon steel.
    Ultrasonic screening machine
    Ultrasonic model
    When using fine powder below 200, the screen will be automatically cleaned without jamming or clogging, making it more efficient.
    Stainless steel screening machine
    The whole machine is made of 304 stainless steel
    No corrosion, higher precision

    Automated matching

    Automatic feeding screening machine
    Screw machine automatic feeding
    圆形筛图片1
    Discharging material from storage bucket
    Automatic screening machine model
    Powder suction machine+storage bucket

    Technical parameters of circular vibration screening machine

    Nominal diameter (mm)

    Φ600

    Φ800

    Φ1000

    Φ1200

    Φ1500

    Φ1800

    Φ2000

    Effective screen area (m²)

    0.24

    0.45

    0.67

    1

    1.6

    2.43

    3.01

    Wire mesh (eyes/inch)

    2-400

    Material size (mm)

    <Φ10

    <Φ15

    <Φ20

    <Φ30

    Vibration time (rpm)

    1500

    1500

    1500

    1500

    1500

    1500

    1500

    Effectine diameter of sieve surface (mm)

    Φ560

    Φ760

    Φ930

    Φ1130

    Φ1430

    Φ1760

    Φ1960

    Level

    1-3 floors

    Power (Kw)

    0.55

    0.735

    1.5

    1.84

    2.2

    3

    3

    Single high total

    605

    730

    810

    970

    1000

    1530

    1725

    Double high total

    705

    860

    940

    1110

    1150

    1710

    1905

    Three layers of high total

    805

    990

    1070

    1250

    1300

    1890

    2085
